DIODES

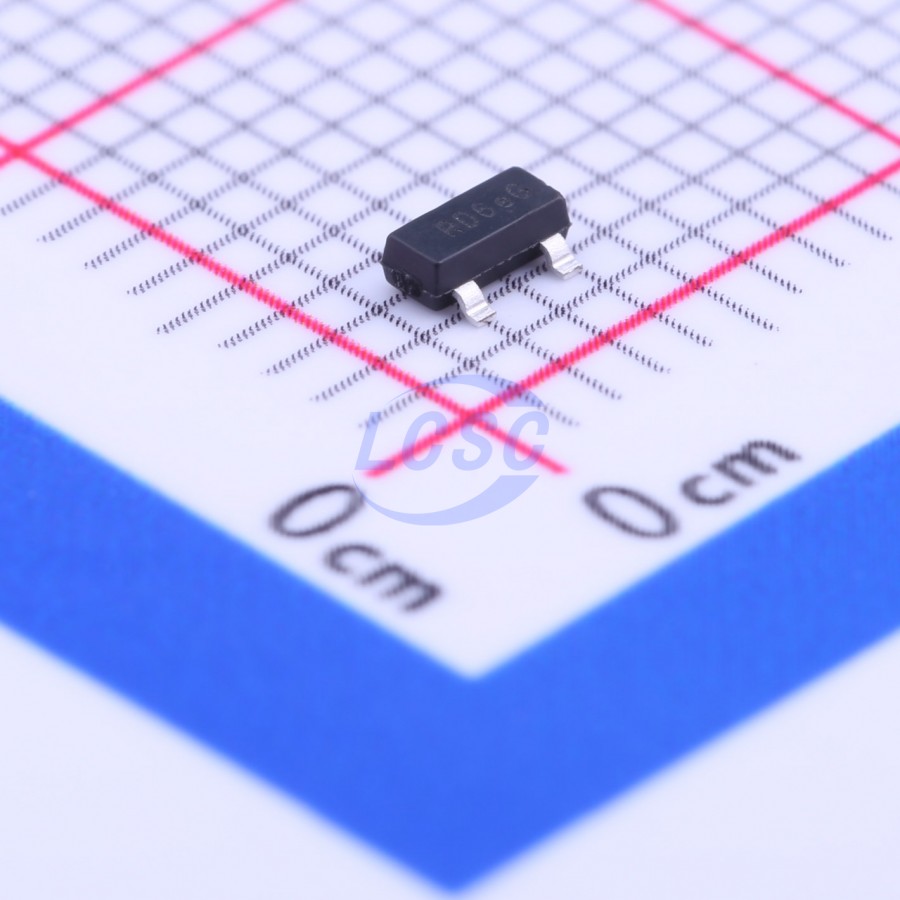

AP7333-18SRG-7

1.8V Positive Fixed SOT-23R Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23RROHS3 CompliantActive

300mA, Low Quiescent Current, Fast Transient, Low Dropout Linear Regulator

Manufacturer: DIODES
Manufacturer part #: AP7333-18SRG-7
Store part #: C151043
Package / case: SOT-23R
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,925 in stock

#C151043

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.44	₹92.20
50+	₹14.82	₹741.00
150+	₹12.99	₹1,948.50
500+	₹11.63	₹5,815.00
3,000+	₹10.09	₹30,270.00
6,000+	₹9.55	₹57,300.00

Quantity (min 5, multiples of 5)

5 × ₹18.44

₹92.20

excl. GST

₹108.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP7333-18SRG-7

₹92.20 for 5 + GST

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 65uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 6V
Features: Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

300mA Low Dropout Regulator in 3-pin package。The AP7333 is a 300mA, fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7333 is available in SOT23 packages with different pin-outs.

Applications

XDSL Router
Wireless LAN Cards
Desktop and Notebook Computers
Battery Powered Equipments Mouse, Keyboards

Key features

Very low IQ over full load: 65μA
Wide input voltage range: 2V to 6V
Fixed output options: 1.0V to 3.3V PSRR: 65dB typical at 100Hz
Fast start-up time: 80μs
Stable with low ESR, ceramic output capacitor
Excellent Load/Line Transient Response
Low dropout: 300mV typical at 300mA
Current limit protection
Short circuit protection
Thermal shutdown protection
Ambient temperature range: -40℃ to 85℃
Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AP7333-18SAG-7#C150747DIODES · SOT-23	DIODES	SOT-23	795	₹41.52 · 795 in stock	View
PJ9650M18SA#C45406554PJSEMI · SOT-23	PJSEMI	SOT-23	460	₹10.37 · 460 in stock	View
AP2127N-1.8TRG1#C780749DIODES · SOT-23	DIODES	SOT-23	865	₹27.78 · 865 in stock	View
AP2125N-1.8TRG1#C460323DIODES · SOT-23	DIODES	SOT-23	6,925	₹24.01 · 6,925 in stock	View
MD53U18#C2978551Mingda Microelectronics · SOT-23-3L	Mingda Microelectronics	SOT-23-3L	25	₹17.54 · 25 in stock	View
