DIODES

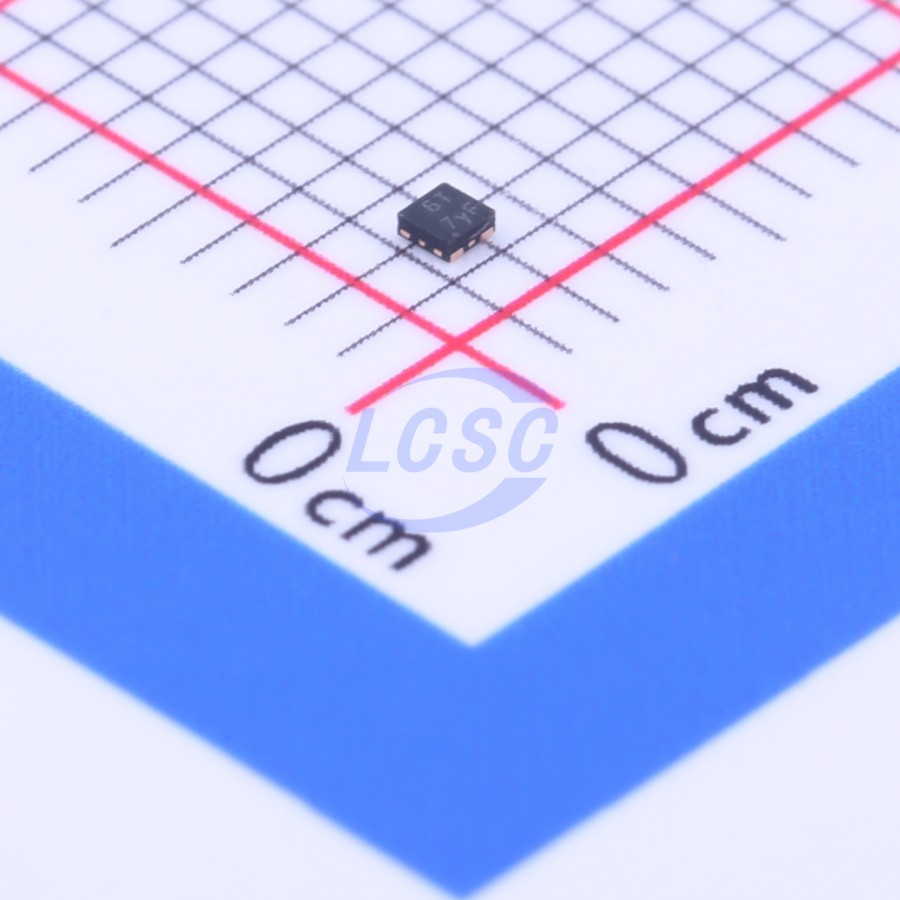

AP7343D-33FS4-7B

3.3V Positive Fixed X2-DFN1010-4-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

X2-DFN1010-4-EPROHS3 CompliantActive

300mA HIGH PSRR LOW-NOISE LDO WITH ENABLE

Manufacturer: DIODES
Manufacturer part #: AP7343D-33FS4-7B
Store part #: C260892
Package / case: X2-DFN1010-4-EP
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,650 in stock

#C260892

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹11.79	₹117.90
100+	₹9.72	₹972.00
300+	₹8.68	₹2,604.00
1,000+	₹7.91	₹7,910.00
5,000+	₹7.29	₹36,450.00
10,000+	₹6.97	₹69,700.00

Quantity (min 10, multiples of 10)

10 × ₹11.79

₹117.90

excl. GST

₹139.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

AP7343D-33FS4-7B

₹117.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 60uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 5.25V
Features: Enable control;Short Circuit Protection;Output discharge;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.012 g

Overview

The AP7343 is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise, and low quiescent current. This regulator is based on a CMOS process. The AP7343 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on and off. With the integrated resistor network fixed output voltage versions can be delivered. With its low power consumption and line and load transient response, the AP7343 is well suited for low- power handheld communication equipment. The AP7343 is packaged in the X2- DFN1010- 4 (Type B) and SOT25 packages, allowing for the smallest footprint and a dense PCB layout.

Applications

Smart phones/tablets
RF supplies
Cameras
Portable videos
Portable media players
Wireless adapters
Wireless communications

Key features

Low VIN and Wide VIN Range: 1.7V to 5.25V
Guarantee Output Current: 300mA
VOUT Accuracy ±1%
Ripple Rejection 75dB at 1kHz
Low Output Noise, 60uVrms from 10Hz to 100kHz
Quiescent Current as Low as 35 μA
VOUT Fixed 0.9V to 3.6V
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
