DIODESDatasheet (PDF)

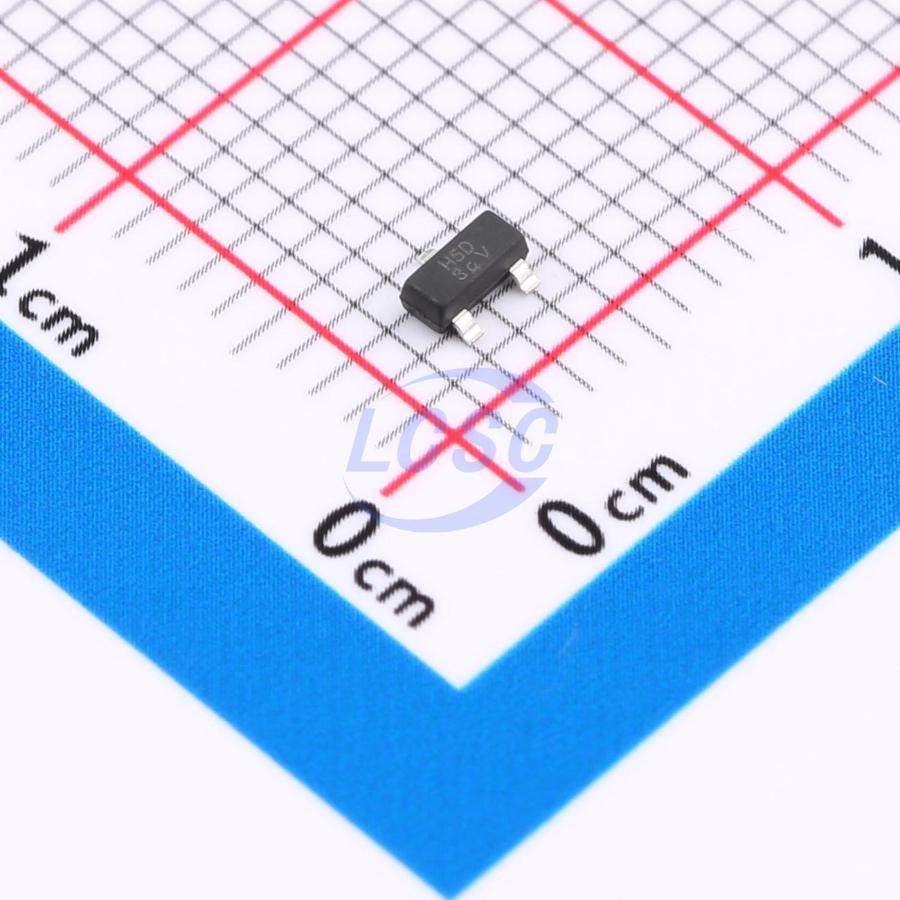

AP7375-50SA-7
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS3 CompliantActive
Wide input voltage range 300mA low dropout regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7375-50SA-7
- Store part #
- C6500991
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,645 in stock
#C6500991
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.13 | ₹170.65 |
| 50+ | ₹26.46 | ₹1,323.00 |
| 150+ | ₹23.18 | ₹3,477.00 |
| 500+ | ₹19.08 | ₹9,540.00 |
| 3,000+ | ₹17.25 | ₹51,750.00 |
| 6,000+ | ₹16.15 | ₹96,900.00 |
5 × ₹34.13
₹170.65
excl. GST
₹201.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7375-50SA-7
₹170.65 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.1uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The AP7375 series is a wide input voltage range (45V), low quiescent current (2.1μA), low-dropout linear regulator (LDO) able to provide 300mA load current. The AP7375 family of LDOs offers an EN pin that takes an input voltage of 45V to enable and disable the LDO output. The device features very fast response times against line voltage transient and load current transient, and ensures no overshoot voltage during start-up and short-circuit recovery. It also features integrated short-circuit and thermal shutdown protection. The AP7375 has 1.8V, 3.0V, 3.3V, 3.6V, and 5.0V fixed output voltage versions, and is available in the SOT23, SOT25, SOT89, and U-DFN2020-6 (SWP) (Type UXC) packages.
Applications
- Battery-powered equipment
- Smoke detectors and sensors
- Microcontroller applications
- Home appliances
Key features
- Wide Input Voltage Range: 3V to 45V
- Maximum Output Current: 300mA
- Low Dropout Voltage: VDROP = 35mV @ IOUT = 10mA (typ.), VDROP = 350mV @ IOUT = 100mA (typ.)
- Low Quiescent Current: 2.1μA (typ.)
- Fixed Output Voltages: 1.8V, 3.0V, 3.3V, 3.6V and 5.0V
- High Output Voltage Accuracy: ±2%
- High PSRR: 85dB @ 1kHz
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- An automotive-compliant part is available under separate datasheet (AP7375Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ54AM50SC#C23376658PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 110 | ₹17.57 · 110 in stock | View |
 | PJ54M50SA#C45406563PJSEMI · SOT-23 | PJSEMI | SOT-23 | 45 | ₹15.31 · 45 in stock | View |
 | SL54M50SA#C5122499Slkor · SOT-23 | Slkor | SOT-23 | 1,945 | ₹16.54 · 1,945 in stock | View |
 | SL75U50S#C53207119Slkor · SOT-23 | Slkor | SOT-23 | 5,760 | ₹13.16 · 5,760 in stock | View |
 | JTD75U50S#C42443410JTD · SOT-23 | JTD | SOT-23 | 24,220 | ₹11.43 · 24,220 in stock | View |
