DIODESDatasheet (PDF)

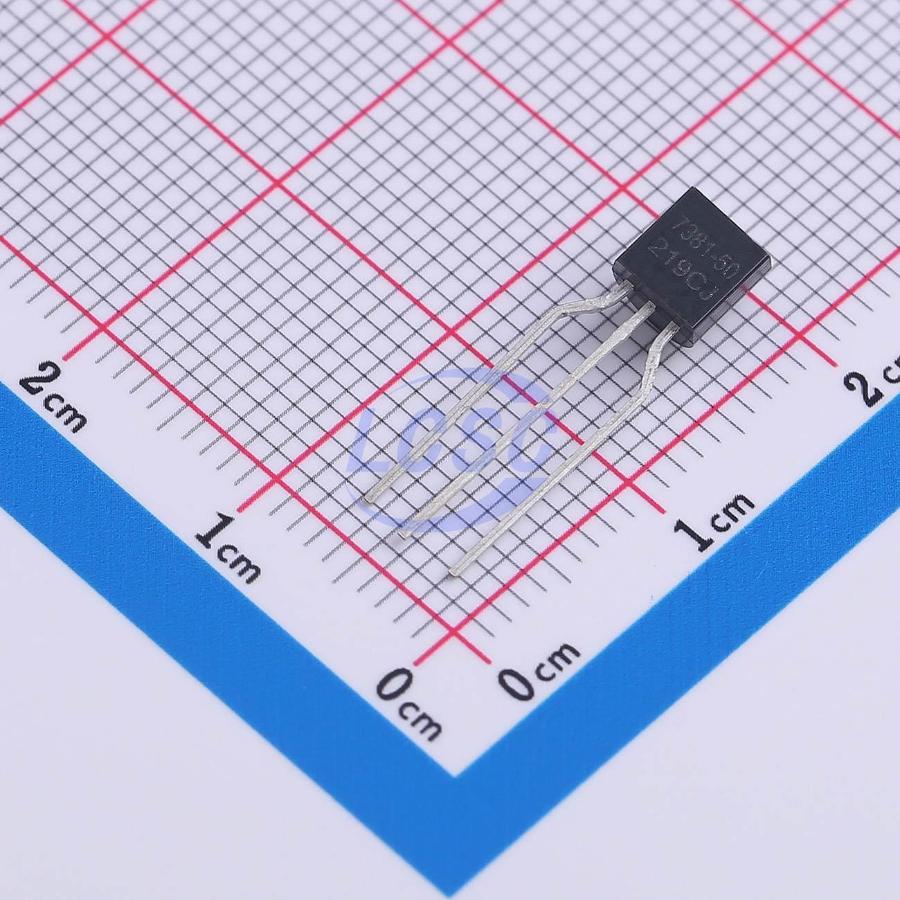

AP7381-50V-A
5V Positive Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS3 CompliantActive
Wide input voltage range 150mA low dropout regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7381-50V-A
- Store part #
- C3746499
- Package / case
- TO-92
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,330 in stock
#C3746499
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.72 | ₹108.60 |
| 50+ | ₹19.12 | ₹956.00 |
| 150+ | ₹18.01 | ₹2,701.50 |
| 500+ | ₹16.62 | ₹8,310.00 |
| 2,000+ | ₹16.01 | ₹32,020.00 |
| 4,000+ | ₹15.64 | ₹62,560.00 |
5 × ₹21.72
₹108.60
excl. GST
₹128.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
AP7381-50V-A
₹108.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
The AP7381 series is a positive voltage regulator IC. The AP7381 has features of wide input voltage range, high accuracy, low dropout voltage, current limit and ultra- low quiescent current which make it ideal for use in various USB and portable devices. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7381 has 2.8V, 3.3V, 5V and 7V fixed voltage version. The AP7381 is available in space- saving SOT23, SOT89 and TO92 (Ammo Packing) packages.
Applications
- E-meters
- Battery-powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 40V
- Low Dropout Voltage: VDROP = 1000mV @ IOUT = 100mA @ VOUT = 3.3V
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Short Current Protection Function
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
