Minos

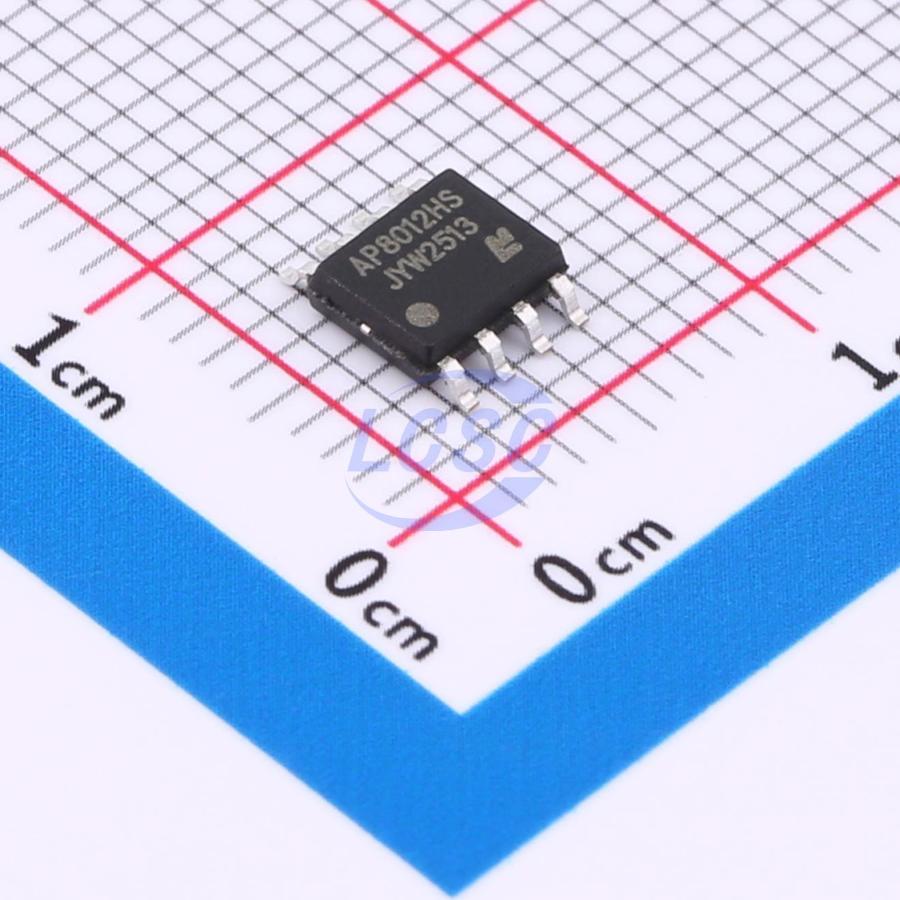

AP8012HS

Converter Offline 38kHz~48kHz SOP-8

SOP-8ROHS CompliantActive

High-performance offline PWM switching power supply controller

Manufacturer: Minos
Manufacturer part #: AP8012HS
Store part #: C33129602
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,750 in stock

#C33129602

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.53	₹152.65
50+	₹23.97	₹1,198.50
150+	₹21.17	₹3,175.50
500+	₹17.66	₹8,830.00
2,500+	₹16.10	₹40,250.00
4,000+	₹15.16	₹60,640.00

Quantity (min 5, multiples of 5)

5 × ₹30.53

₹152.65

excl. GST

₹180.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AP8012HS

₹152.65 for 5 + GST

Specifications

Operating Temperature: -20℃~+150℃
Frequency - Switching: 38kHz~48kHz
Output Current: 700mA
Pd - Power Dissipation: 150mW
Voltage - Breakdown: 800V
Voltage - Supply: 10V~35V
Features: High voltage direct start;EMI optimization (spread spectrum);Leading edge blanking;Under-voltage lockout;Overtemperature protection (OTP);Over Voltage Protection;Over Current Protection;Short Circuit Protection
Duty Cycle(Max): 90%
Working Mode: PWM Modulation

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g

Overview

AP8012HS is a high-performance offline PWM switching power supply controller that meets green environmental standards. The IC integrates a high-voltage startup circuit, soft-start circuit, and multiple protection functions, featuring simplified application peripherals and extremely high reliability. Under certain operating conditions, this IC can also be used in non-isolated applications. AP8012HS is available in DIP-8/SOP-8 packages and is widely applicable in various cost-effective switching power supplies.

Applications

Small appliance power supply
Charger power supply
6W operation across full voltage range

Key features

Integrated 800V power MOSFET
Integrated high-voltage startup circuit
Universal input voltage range (85V~265V)
Latched PWM with cycle-by-cycle current limiting detection
Soft-start function
Built-in overload, over-temperature, VDD overvoltage, and output open/short-circuit protection
Frequency modulation and frequency dithering for improved EMI compatibility
No-load power consumption <0.15W, <0.1W at 220VAC input
