Wuxi Chipown Micro-electronicsDatasheet (PDF)

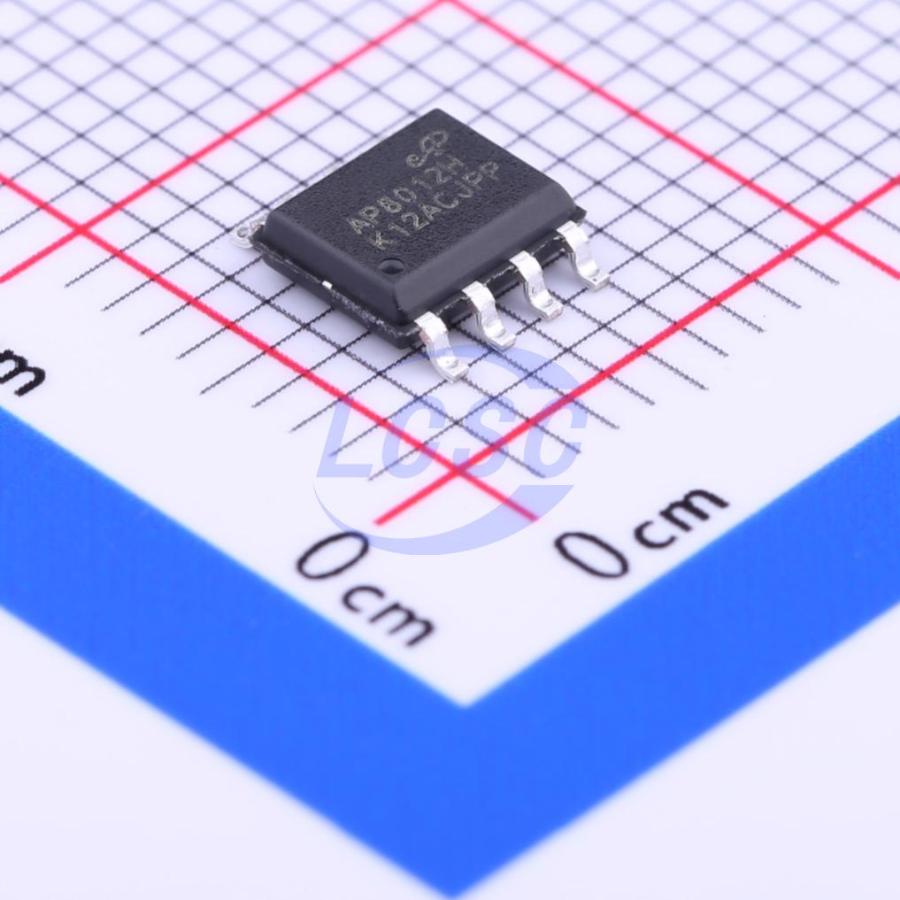

AP8012HSEC-R1
Converter Offline 40kHz~50kHz SOP-8
SOP-8ROHS CompliantActive
Off-line switching power supply IC with low standby power consumption
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- AP8012HSEC-R1
- Store part #
- C80501
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,320 in stock
#C80501
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.19 | ₹200.95 |
| 50+ | ₹31.67 | ₹1,583.50 |
| 150+ | ₹28.02 | ₹4,203.00 |
| 500+ | ₹23.47 | ₹11,735.00 |
| 2,500+ | ₹21.43 | ₹53,575.00 |
| 4,000+ | ₹20.22 | ₹80,880.00 |
5 × ₹40.19
₹200.95
excl. GST
₹237.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP8012HSEC-R1
₹200.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 40kHz~50kHz
- Output Current
- 300mA
- Voltage - Supply
- 10V~35V
- Voltage - Breakdown
- 820V
- Topology
- Flyback
- Features
- High voltage direct start;Light load efficient mode;EMI optimization (spread spectrum);Leading edge blanking;Under-voltage lockout;Soft-start;Over Voltage Protection;Under Voltage Protection;Over Current Protection;Overtemperature protection (OTP)
- Duty Cycle(Max)
- 90%
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The AP8012H integrates a PWM controller and power MOSFET, suitable for low-power offline switching power supplies. The chip provides comprehensive intelligent protection features, including over-current protection, under-voltage protection, over-voltage protection, over-temperature protection, and soft-start functionality. Burst mode operation reduces power consumption during system standby; frequency jittering helps improve EMI performance. The chip also incorporates a built-in high-voltage startup module to ensure fast system startup.
Applications
- Induction cooker power supply
- Small appliance auxiliary power supply
Key features
- Built-in 800V high avalanche capability smart power MOSFET
- Wide AC input voltage range: 85~265V
- Full-voltage semi-enclosed steady-state output power 6W (DIP-8 package)
- Frequency jittering for improved EMI performance
- Burst mode operation
- Soft start
- Built-in high-voltage startup circuit
- Protection features: OCP, OTP, VDD overvoltage protection
