Minos

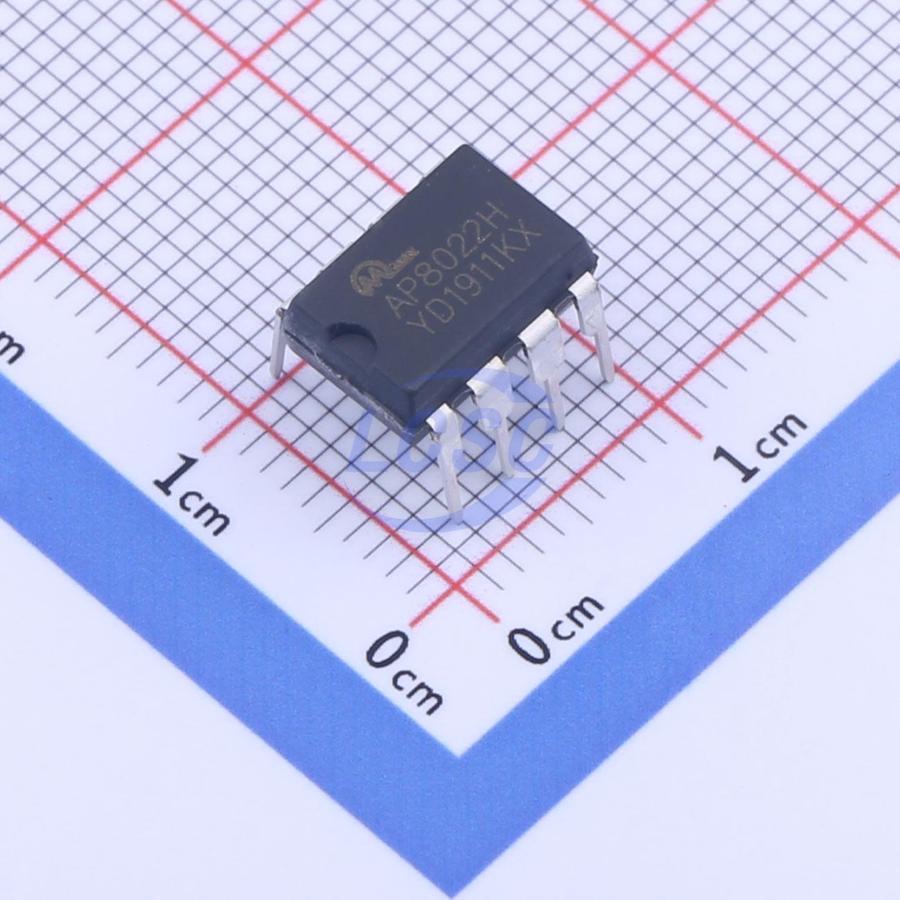

AP8022H

Converter Offline 58kHz~70kHz DIP-8

DIP-8ROHS CompliantActive

High-performance offline PWM switching power supply controller

Manufacturer: Minos
Manufacturer part #: AP8022H
Store part #: C2960444
Package / case: DIP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tube-packed
