Wuxi Chipown Micro-electronicsDatasheet (PDF)

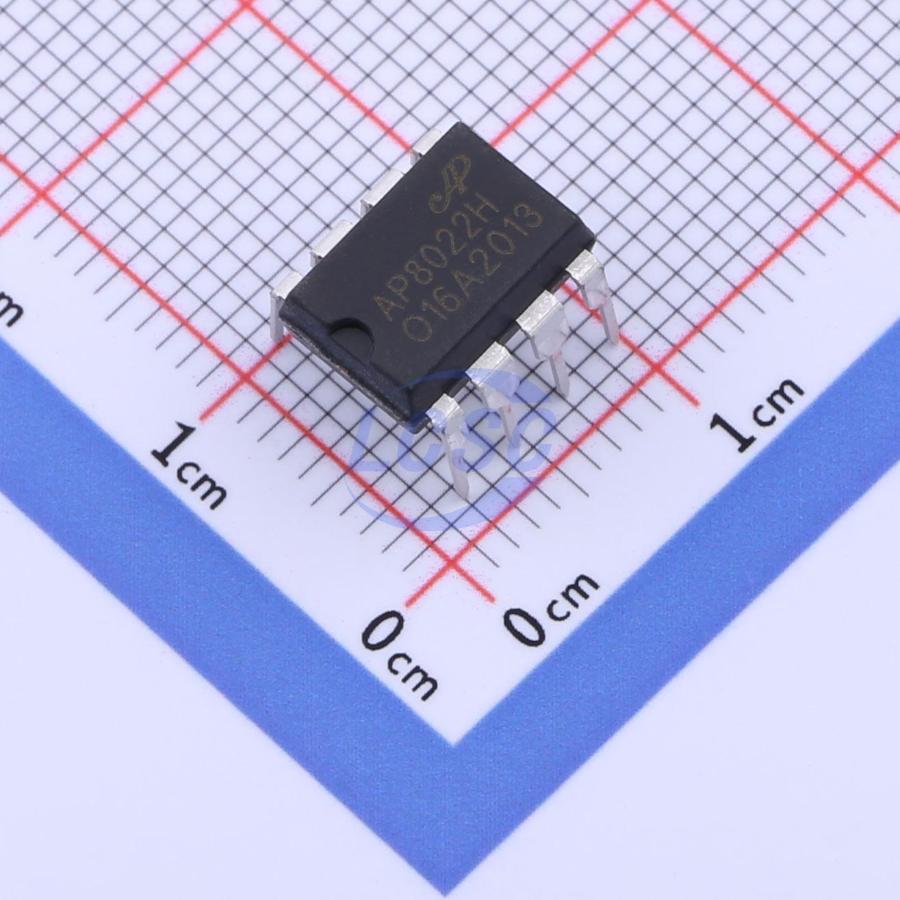

AP8022HNE-A1
1 Channel DIP-8
DIP-8ROHS CompliantActive
Off-line switching power supply IC with low standby power consumption
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- AP8022HNE-A1
- Store part #
- C2994667
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C2994667
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.27 | ₹211.35 |
| 50+ | ₹32.98 | ₹1,649.00 |
| 150+ | ₹29.00 | ₹4,350.00 |
| 500+ | ₹24.04 | ₹12,020.00 |
5 × ₹42.27
₹211.35
excl. GST
₹249.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AP8022HNE-A1
₹211.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Soft-start
- number of channels
- 1
- Operating Voltage
- 10V~35V
- RDS(on)
- 10Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.8 g
Overview
The AP8022H integrates a PWM controller and an 800V high-avalanche-capability smart power MOSFET, designed for low-power offline switching power supplies. The chip provides comprehensive intelligent protection features, including overcurrent protection, undervoltage protection, over-temperature protection, and soft-start functionality. Burst mode operation reduces power consumption during system standby; frequency jittering helps improve EMI performance of offline switching power supplies. The chip also incorporates a built-in high-voltage startup module to ensure rapid system startup.
Applications
- Induction cooker power supply
- Small appliance auxiliary power supply
- Set-top box power supply
Key features
- 800V high avalanche capability intelligent power MOSFET
- 85~265V wide AC input operating voltage
- Full voltage semi-enclosed steady-state output power 10W
- EMI characteristics
- Burst mode operation
- Soft start
- Built-in high-voltage startup circuit
- Protection features (OCP, OTP, VDD overvoltage protection)
