ANPEC

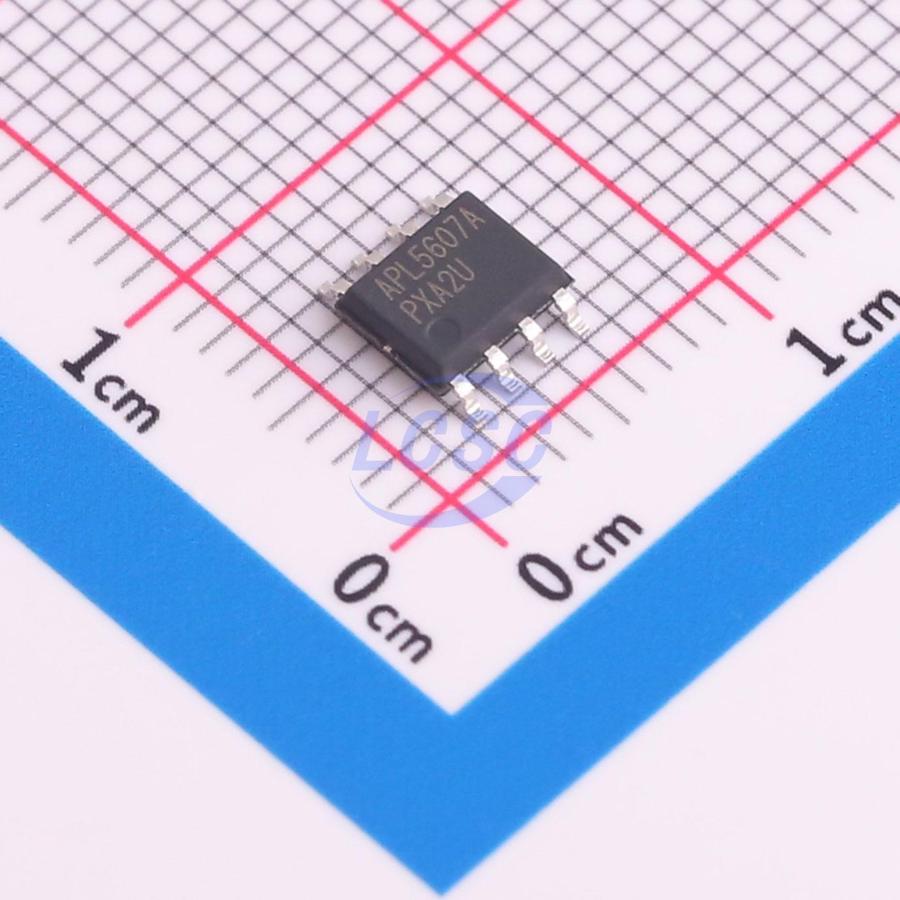

APL5607AKI-TRG

Positive Adjustable SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOP-8RoHSActive

600mA Linear Regulator for DC Fan Speed Control

Manufacturer: ANPEC
Manufacturer part #: APL5607AKI-TRG
Store part #: C2691616
Package / case: SOP-8
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C2691616

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹71.71	₹71.71
10+	₹57.58	₹575.80
30+	₹50.63	₹1,518.90
100+	₹43.67	₹4,367.00
500+	₹39.33	₹19,665.00
1,000+	₹37.16	₹37,160.00

Quantity (min 1)

1 × ₹71.71

₹71.71

excl. GST

₹84.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

APL5607AKI-TRG

₹71.71 for 1 + GST

Specifications

Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 140uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 600mA
Features: Enable control;Built-in soft-start;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.256 g

Overview

The APL5607/A is a low quiescent current and low dropout linear regulator which is designed to power a DC fan and deliver up to 600mA output current. The output voltage follows the 1.6 times of VSET voltage and typical dropout voltage is only 220mV (typical) at 600mA output current. The APL5607/A with low 140μA quiescent current is ideal for battery-powered system appliances and stable with a 2.2μF ceramic output capacitor. The features of current-limit (with foldback current) and overtemperature protection protect the device against current over-loads and over temperature. The APL5607/A is available in SOP-8 and TDFN 13x3-8 packages.

Applications

Notebook Fan Driver
Motherboards
PC Peripherals
Battery-Powered System

Key features

Low Dropout Voltage: 220mV (Typical) @600mA
Low Quiescent Current: 140μA
Enable/Shutdown Function
Output Voltage / VSET Voltage: 1.6 Times
Stable with Low ESR Ceramic Capacitors
Over-Temperature Protection
Current-Limit Protection with Foldback Current
Internal Soft-Start
SOP-8 and TDFN3x3-8 Packages Lead Free and Green Devices Available (RoHS Compliant)
