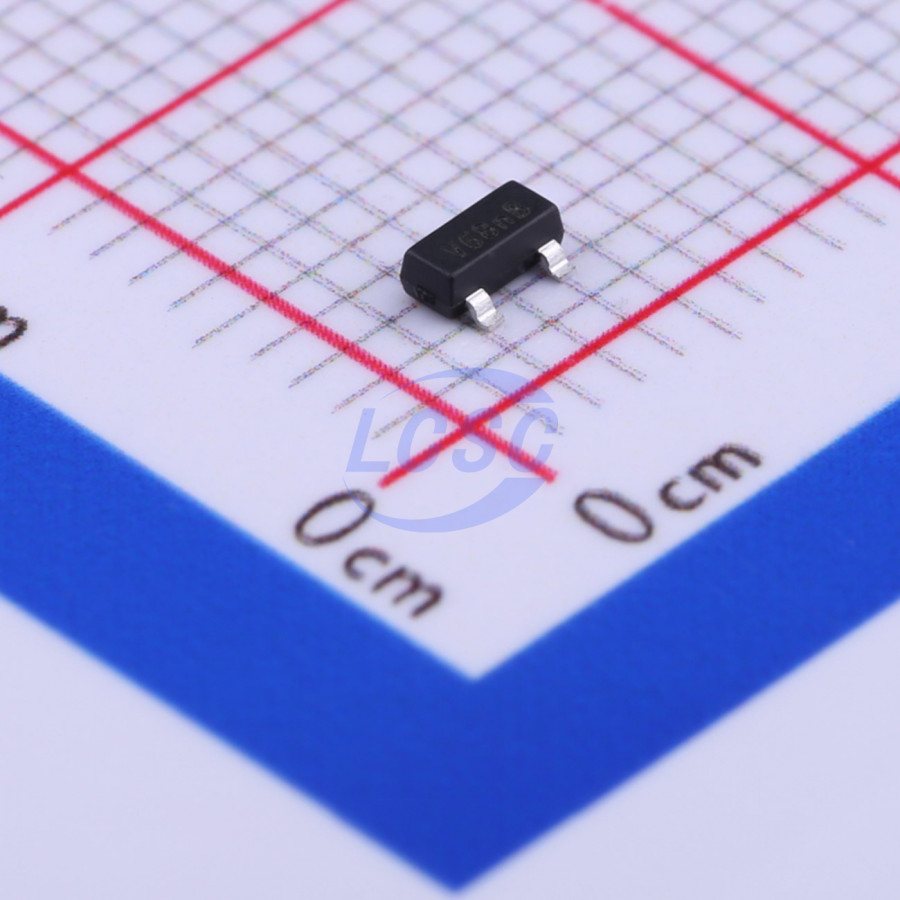

APX803S-31SA-7
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors RoHS
3-PIN MICROPROCESSOR RESET CIRCUIT
- Manufacturer
- DIODES
- Manufacturer part #
- APX803S-31SA-7
- Store part #
- C129757
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,894 in stock
#C129757
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.73 | ₹51.73 |
| 10+ | ₹40.21 | ₹402.10 |
| 30+ | ₹35.21 | ₹1,056.30 |
| 100+ | ₹29.12 | ₹2,912.00 |
| 500+ | ₹26.51 | ₹13,255.00 |
| 1,000+ | ₹24.78 | ₹24,780.00 |
1 × ₹51.73
₹51.73
excl. GST
₹61.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APX803S-31SA-7
₹51.73 for 1 + GST
Specifications
- Reset Timeout
- 240ms
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Reset Active Level
- Active Low
- standby current
- 10uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The APX803S is used for microprocessor (μP) supervisory circuits to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5.0V, 3.3V, 3.0V and 2.5V powered circuits. These circuits perform a single function: they assert a reset signal on power up and whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for a fixed period of time after VCC has risen above the reset threshold. For the APX803S this period is a minimum of 1ms while for other APX803S variants it is at least 140ms. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCC down to 1V. The APX803S is available with different reset thresholds suitable for operation with a variety of supply voltages. The APX803S has an open drain active low RESET output and compliment Diodes APX809S/810S which have push-pull output stages. Low supply current makes the APX803S ideal for use in portable equipment. The APX803S is available in two pin out variants of the 3-pin SOT23 package.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Critical μP and μc Power Monitoring
- Portable/Battery Powered Equipment
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APX803S-31SR-7#C2067695DIODES · SOT-23 | DIODES | SOT-23 | 2,165 | ₹27.40 · 2,165 in stock | View |
 | LM809M3X-3.08/NOPB#C209840TI · SOT-23 | TI | SOT-23 | 2,988 | ₹81.71 · 2,988 in stock | View |
 | TPAPX803-31SAG#C52817191TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 465 | ₹11.46 · 465 in stock | View |
 | TPAPX803S-31SA#C52817196TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 480 | ₹11.46 · 480 in stock | View |
 | TPMCP120T-315I/TT#C52817239TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,985 | ₹26.76 · 2,985 in stock | View |
