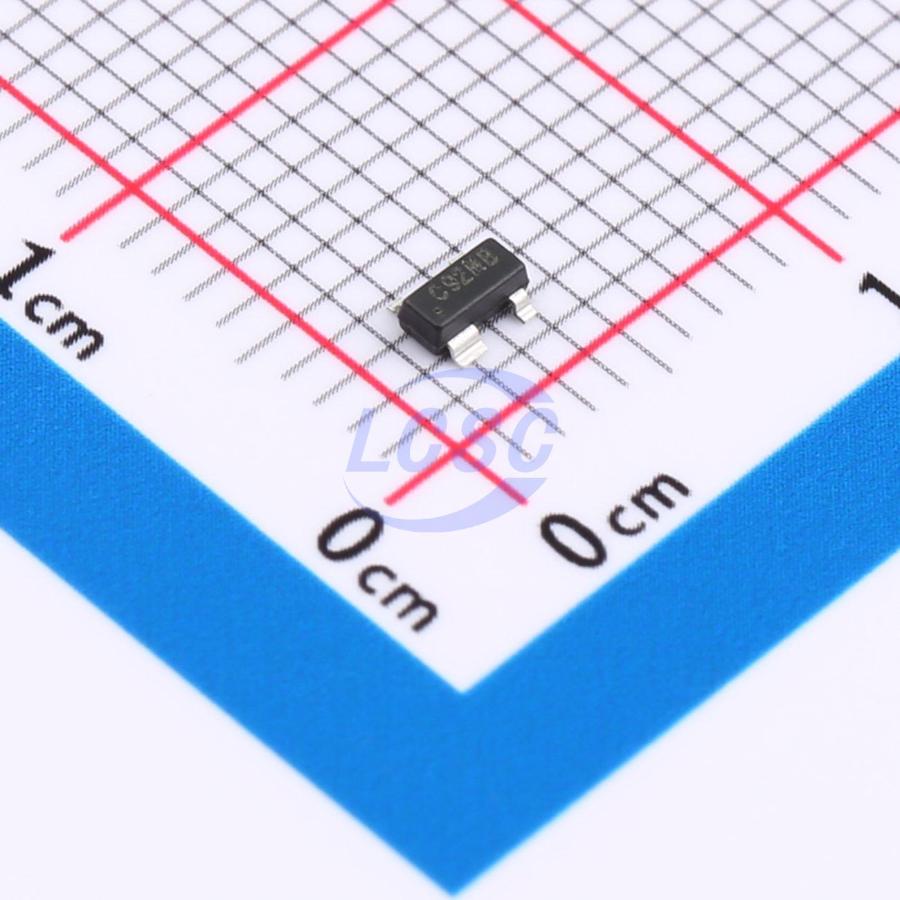

APX812-46UG-7
200ms Manual reset input Active High 1.1V~5.5V 1 SOT-143 Supervisors RoHS
4-Pin Microprocessor Supervisor With Manual Reset
- Manufacturer
- DIODES
- Manufacturer part #
- APX812-46UG-7
- Store part #
- C150480
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C150480
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.61 | ₹98.05 |
| 50+ | ₹19.18 | ₹959.00 |
| 150+ | ₹18.91 | ₹2,836.50 |
| 500+ | ₹18.63 | ₹9,315.00 |
5 × ₹19.61
₹98.05
excl. GST
₹115.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APX812-46UG-7
₹98.05 for 5 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- Function
- Manual reset input
- Reset Active Level
- Active High
- standby current
- 30uA
- Voltage - Supply
- 1.1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.25V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The APX811/812 are used for microprocessor supervisory circuit to monitor the power supplies in These circuit perform a single function: they assert a reset signal whenever the Vcc supply voltage declines below a preset threshold, keeping it asserted for at least 240ms after Vcc has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available. The APX811/812 have push-pull outputs. The APX811 has an active low RESET output, while the APX812 has an active high RESET output. The APX811/812 devices incorporate a manual reset input, MR . A low level at MR causes RESET to become active. The APX811/2 are targeted at 2.5V, 3V, 3.3V and 5V powered systems and are available with different threshold voltages to meet the exact needs of the system. They are available in the space saving SOT143 package and operate over the whole industrial temperature range, -40 to 85°C.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Critical uP and UC power Monitoring
- Portable/Battery powered Equipment
- Automotive
Key features
- Precision Monitor of(2.5V/3.0V/3.3V/5.0V) power supply voltage
- Full specified over temperature
- Manual reset input
- Available in four output configuration
- Push-pull RESET Active low(APX811)
- Push-pull RESET Active high(APX812)
- Power-on reset generator with fixed delay time 200ms
- SOT143: Available in “Green” Molding Compound (No Br, Sb)
- Lead Free Finish/RoHS Compliant
