VikingDatasheet (PDF)

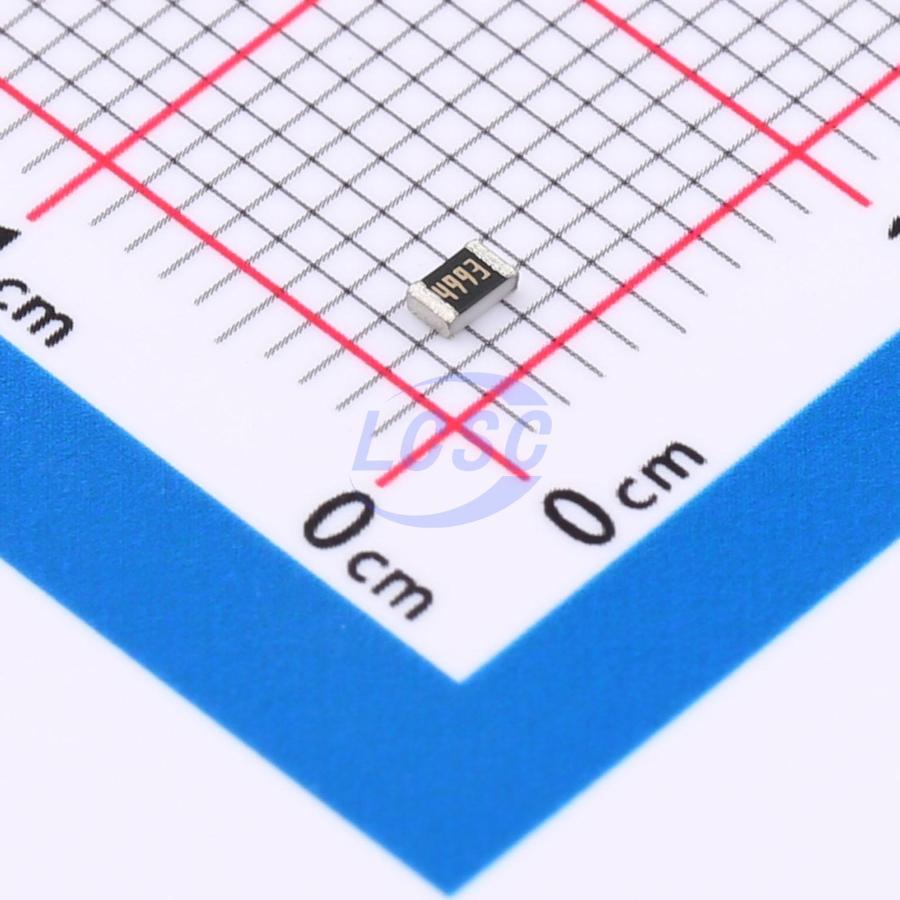

AR05BTCW4993A
499kΩ 125mW 100V Thin Film Resistor ±25ppm/℃ ±0.1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 499kΩ ±0.1% 125mW 0805
- Manufacturer
- Viking
- Manufacturer part #
- AR05BTCW4993A
- Store part #
- C5568839
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,180 in stock
#C5568839
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.56 | ₹456.00 |
| 300+ | ₹3.92 | ₹1,176.00 |
| 1,000+ | ₹3.44 | ₹3,440.00 |
| 5,000+ | ₹3.06 | ₹15,300.00 |
| 10,000+ | ₹2.86 | ₹28,600.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AR05BTCW4993A
₹58.50 for 10 + GST
Specifications
- Resistance
- 499kΩ
- Power(Watts)
- 125mW
- Voltage Rating
- 100V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Automotive, medical devices, test/measurement equipment, printing equipment, automated equipment controllers
Key features
- AEC-Q200 compliant
- Advanced thin-film technology
- RoHS compliant
- Special materials, design, and processes for high-sulfur applications
- Tested for humidity resistance, moisture resistance, and anti-sulfur capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AR05BTCW4993A010#C374699Viking · 0805 | Viking | 0805 | 2,340 | ₹6.18 · 2,340 in stock | View |
 | ARG05BTC4993#C515730Viking · 0805 | Viking | 0805 | 3,520 | ₹4.82 · 3,520 in stock | View |
| AR05BTCW4993#C4173437Viking · 0805 | Viking | 0805 | On request | Price on request | Quote | |
