YAGEODatasheet (PDF)

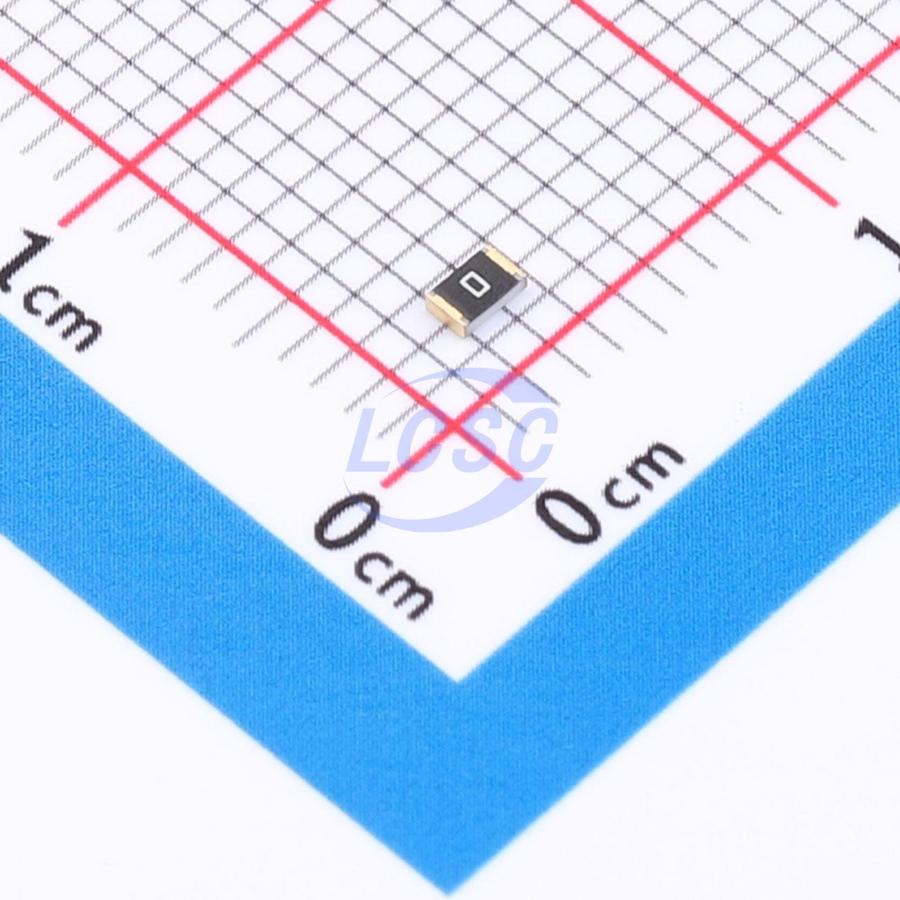

AR0805JR-070RL
125mW 0Ω 150V Thick Film Resistor ±5% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0Ω ±5% 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- AR0805JR-070RL
- Store part #
- C7217056
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,350 in stock
#C7217056
Stock & price checked 18 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.00 | ₹100.00 |
| 100+ | ₹8.22 | ₹822.00 |
| 300+ | ₹7.32 | ₹2,196.00 |
| 1,000+ | ₹6.64 | ₹6,640.00 |
| 5,000+ | ₹6.10 | ₹30,500.00 |
| 10,000+ | ₹5.83 | ₹58,300.00 |
10 × ₹10.00
₹100.00
excl. GST
₹118.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AR0805JR-070RL
₹100.00 for 10 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 0Ω
- Voltage Rating
- 150V
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This specification describes AR0402 to AR1206 chip resistors manufactured using thick-film technology with nickel/gold terminations.
Applications
- Power supplies in compact devices
- Digital multimeters
- Telecommunications
- Computers
- Industrial
Key features
- RoHS compliant
- Lead-free termination products meet RoHS requirements
- Lead glass contained in electrodes, resistive elements, and glass is exempt from RoHS restrictions
- Reduced environmentally hazardous waste
- High component and device reliability
- PCB space saving
- No prohibited materials used in products/production processes
- Halogen-free epoxy resin
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT05000JTP#C103901RALEC · 0805 | RALEC | 0805 | 37,400 | ₹0.6086 · 37,400 in stock | View |
 | RS-05000JT#C115306FH · 0805 | FH | 0805 | 2,78,700 | ₹0.4631 · 2,78,700 in stock | View |
 | AC0805JR-070RL#C144539YAGEO · 0805 | YAGEO | 0805 | 73,800 | ₹0.9393 · 73,800 in stock | View |
 | AF0805JR-070RL#C1882592YAGEO · 0805 | YAGEO | 0805 | 38,200 | ₹2.57 · 38,200 in stock | View |
 | 0805W8J0000T5E#C25275UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 9,14,200 | ₹0.3837 · 9,14,200 in stock | View |
