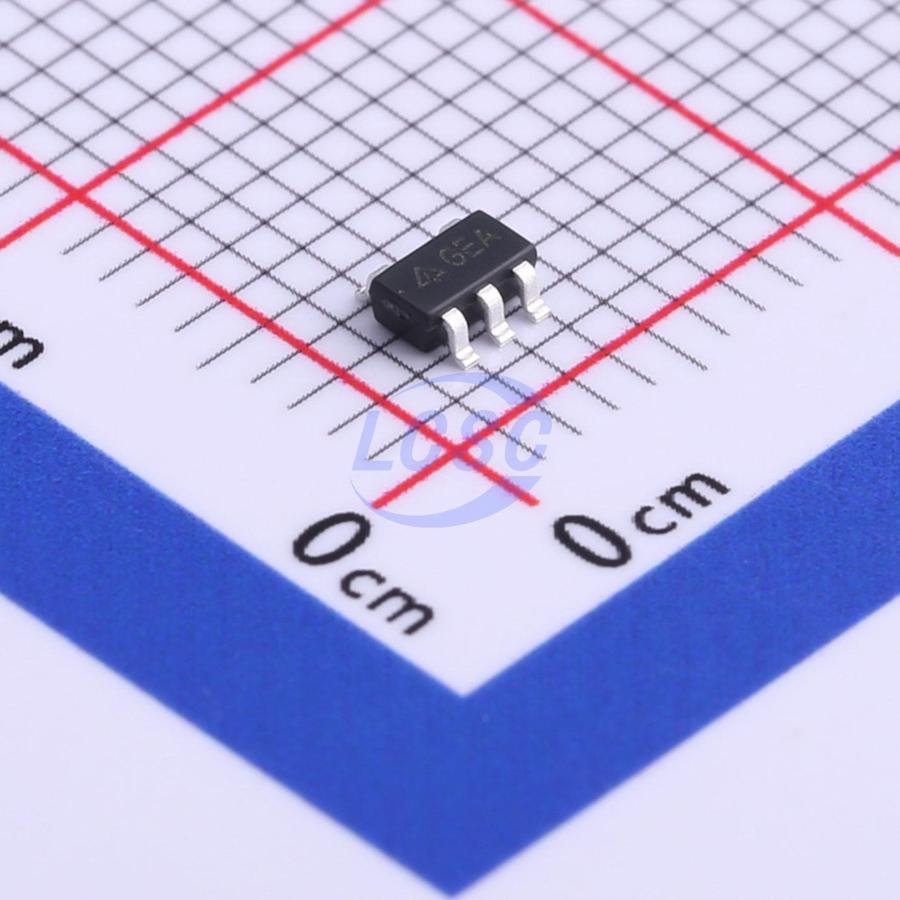

AS331KTR-G1
1 400uA 1mV SOT-23-5 Comparators RoHS
LOW POWER LOW OFFSET VOLTAGE SINGLE COMPARATOR
- Manufacturer
- DIODES
- Manufacturer part #
- AS331KTR-G1
- Store part #
- C513286
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,315 in stock
#C513286
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.66 | ₹98.30 |
| 50+ | ₹14.94 | ₹747.00 |
| 150+ | ₹12.58 | ₹1,887.00 |
| 500+ | ₹10.82 | ₹5,410.00 |
| 3,000+ | ₹9.41 | ₹28,230.00 |
| 6,000+ | ₹8.69 | ₹52,140.00 |
5 × ₹19.66
₹98.30
excl. GST
₹115.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AS331KTR-G1
₹98.30 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 200ns
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 40V
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The AS331 consists of a single precision voltage comparator with a typical input offset voltage of 1.0mV and high voltage gain. It is specifically designed to operate from a single power supply over wide range of voltages. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The AS331 is available in the standard SOT25 package.
Applications
- Battery Chargers
- Cordless Telephones
- Switching Power Supplies
- DC-DC Modules
- PC Motherboards
- Communication Equipment
Key features
- Wide Supply Voltage Range
- Single Supply: 2V to 36V
- Dual Supplies: ±1V to ±18V
- Low Supply Current at VCC=5V: 0.4mA
- Low Input Bias Current: 25nA (Typical)
- Low Input Offset Current: 5nA (Typical)
- Low Input Offset Voltage: 1mV (Typical)
- Input Common Mode Voltage Range Includes Ground
- Differential Input Voltage Range Equals to the Power Supply Voltage
- Low Output Saturation Voltage at 4mA: 200mV (Typical)
- Open Collector Output
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
