TOSHIBADatasheet (PDF)

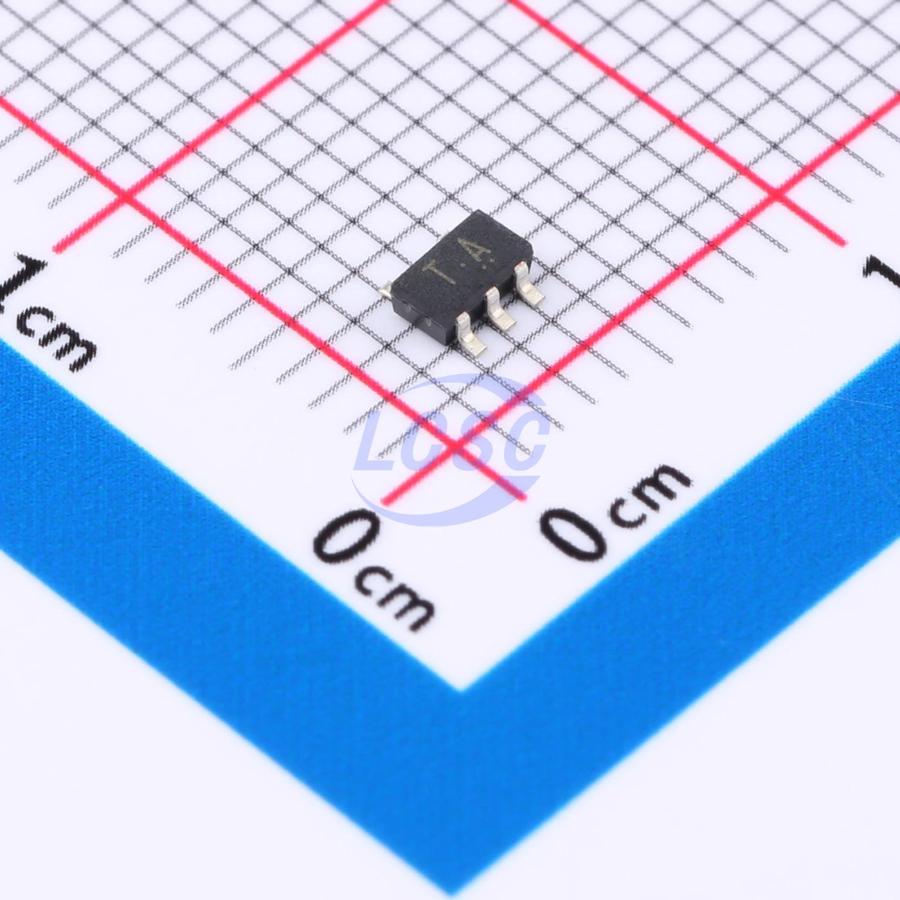

TA75S393F(TE85L,F)
2mV 25nA 1 SOT-25-5 Linear Comparators
SOT-25-5RoHSActive
Single Voltage Comparator
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TA75S393F(TE85L,F)
- Store part #
- C4153782
- Package / case
- SOT-25-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C4153782
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.65 | ₹188.25 |
| 50+ | ₹29.45 | ₹1,472.50 |
| 150+ | ₹25.94 | ₹3,891.00 |
| 500+ | ₹21.56 | ₹10,780.00 |
| 3,000+ | ₹19.61 | ₹58,830.00 |
| 6,000+ | ₹18.43 | ₹1,10,580.00 |
5 × ₹37.65
₹188.25
excl. GST
₹222.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TA75S393F(TE85L,F)
₹188.25 for 5 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 400uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This device of voltage comparator that designed to operate from a single power supply over a wide range of voltage. Normal operation from dual supplies is also to be guaranteed on voltage range from ± 1 V to ± 18 V. VCC is necessary at least more 1.5 V volts than the input common mode voltage. The output can be connected to other open collector outputs to achieve Wired - OR relationship.
Key features
- Small package.
- Single supply voltage range or dual supplies: 2 VDC to 36 VDC or ±1 VDC to ±18 VDC.
- Low supply current: 0.4 mA (typ.)
- Low input offset voltage: ±2 mV (typ.)
- Wide input common mode voltage range: 0 VDC to VCC - 1.5 VDC
- Output compatible with TTL, DTL, MOS and COMS logic system.
- The output can be connected to achieve Wired - OR relation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL331IDBVRQ1#C2862253TI · SOT-23-5 | TI | SOT-23-5 | 30 | ₹38.55 · 30 in stock | View |
 | AS331KTR-G1#C513286DIODES · SOT-23-5 | DIODES | SOT-23-5 | 2,220 | ₹19.66 · 2,220 in stock | View |
 | TL331BQDBVRQ1#C3658524TI · SOT-23-5 | TI | SOT-23-5 | 9,713 | ₹62.13 · 9,713 in stock | View |
 | TL391BQDBVRQ1#C5213961TI · SOT-23-5 | TI | SOT-23-5 | 38 | ₹40.55 · 38 in stock | View |
 | TL391BIDBVR#C2871467TI · SOT-23-5 | TI | SOT-23-5 | 697 | ₹64.14 · 697 in stock | View |
