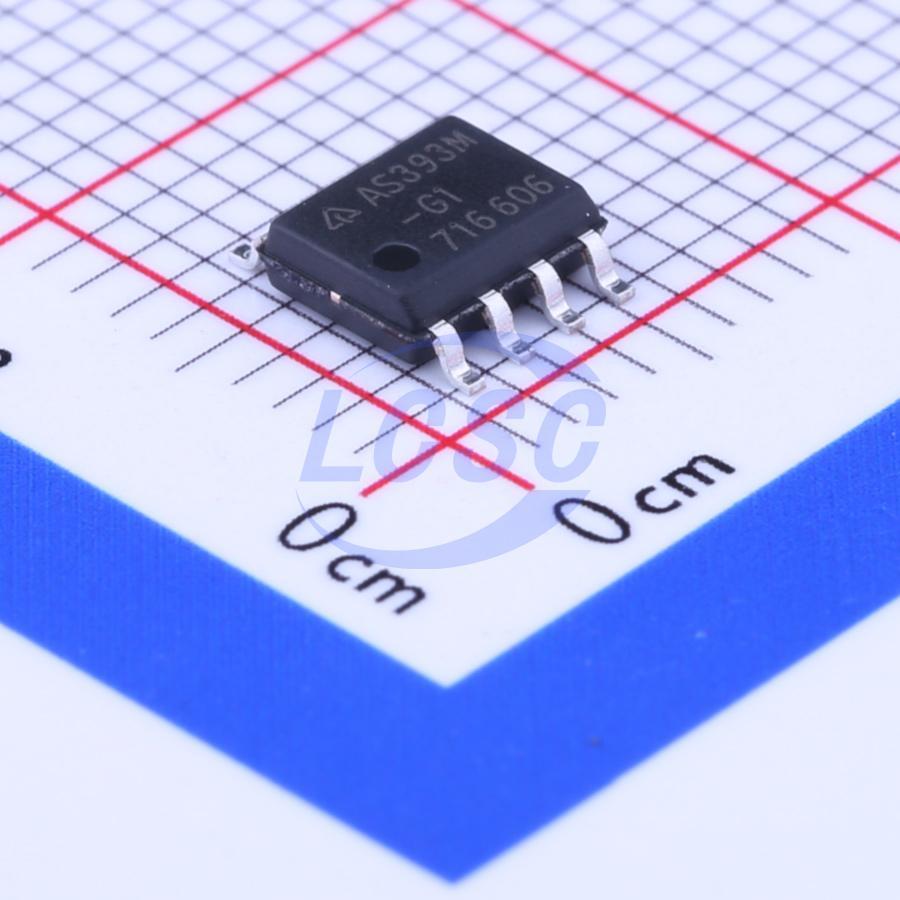

AS393MTR-G1
2 600uA 1mV SOIC-8 Comparators RoHS
Low Power Low Offset Voltage Dual Comparators
- Manufacturer
- DIODES
- Manufacturer part #
- AS393MTR-G1
- Store part #
- C112029
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,050 in stock
#C112029
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.06 | ₹80.30 |
| 50+ | ₹13.23 | ₹661.50 |
| 150+ | ₹11.83 | ₹1,774.50 |
| 500+ | ₹10.77 | ₹5,385.00 |
| 2,500+ | ₹8.59 | ₹21,475.00 |
| 4,000+ | ₹8.16 | ₹32,640.00 |
5 × ₹16.06
₹80.30
excl. GST
₹94.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AS393MTR-G1
₹80.30 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+85℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 200ns
- Quiescent Current(Iq)
- 600uA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 40V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.388 g
Overview
The AS393/393A consist of two independent precision voltage comparators with a typical offset voltage of 1.0mV and high gain. They are specifically designed to operate from a single power supply over wide range of voltages. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The AS393/393A series are compatible with industry standard 393. The AS393A has more stringent input offset voltage than the AS393. The AS393 is available in standard PDIP- 8, SO- 8, TSSOP- 8 and MSOP- 8 packages. The AS393A is available in standard PDIP- 8 and SO- 8 packages.
Applications
- Battery chargers
- Cordless telephones
- Switching power supplies
- DC-DC modules
- PC motherboards
- Communication equipment
Key features
- Wide Supply Voltage Range
- Single Supply: 2V to 36V
- Dual Supplies: ±10V to ±18V
- Low Supply Current Drain: 0.6mA
- Low Input Bias Current: 25nA (typical)
- Low Input Offset Current: 65.0nA (typical)
- Low Input Offset Voltage: 1.0mV (typical)
- Input Common Mode Voltage Range Includes Ground
- Differential Input Voltage Range Equals to the Power Supply Voltage
- Low Output Saturation Voltage: 200mV at 4mA
- Open Collector Output
- Lead-Free Packages: SO-8, TSSOP-8, PDIP-8
- Totally Lead-Free; RoHS Compliant
- Lead-Free Packages, Available in "Green" Molding Compound: SO-8, TSSOP-8, MSOP-8
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
