TECH PUBLICDatasheet (PDF)

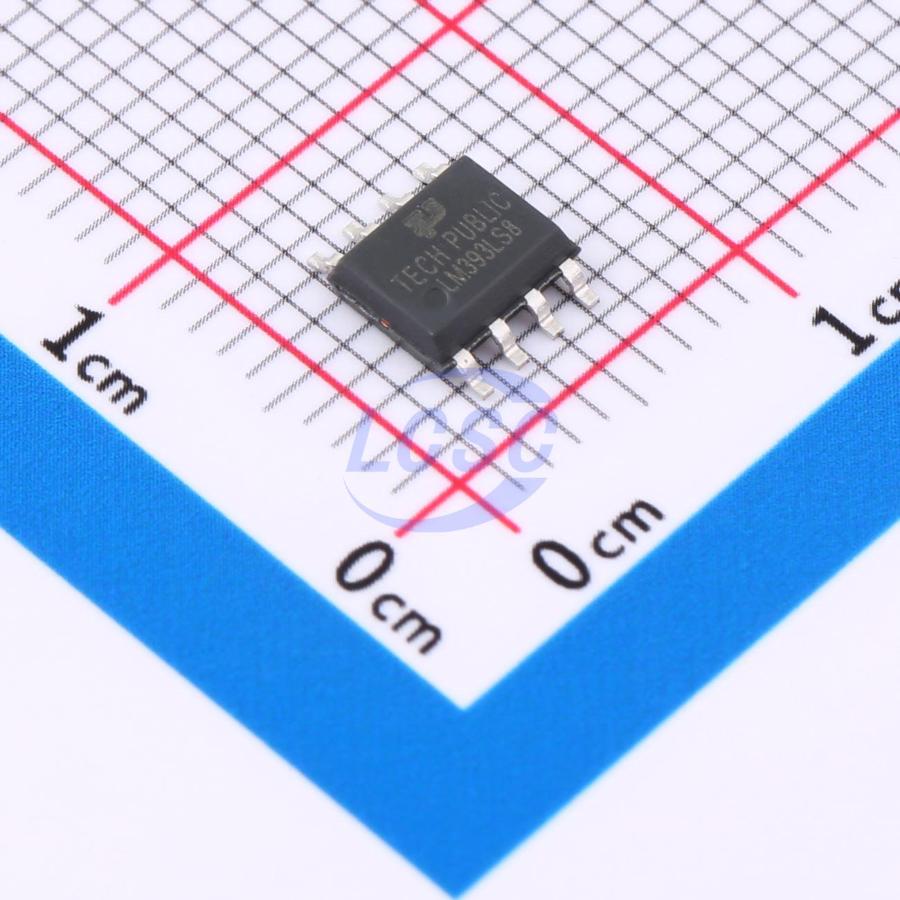

LM393LS8
4mV 65nA 2 SOP-8 Linear Comparators
SOP-8RoHSActive
Low Power Dual Voltage Comparators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM393LS8
- Store part #
- C48543200
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C48543200
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.29 | ₹72.90 |
| 100+ | ₹5.79 | ₹579.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 2,500+ | ₹4.48 | ₹11,200.00 |
| 5,000+ | ₹4.04 | ₹20,200.00 |
| 10,000+ | ₹3.81 | ₹38,100.00 |
10 × ₹7.29
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393LS8
₹72.90 for 10 + GST
Specifications
- Dual Supply
- 1.5V~15V;-15V~-1.5V
- Vos - Input Offset Voltage
- 4mV
- Ib - Input Bias Current
- 65nA
- Quiescent Current
- 600uA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Propagation Delay Time
- 350ns
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Response Time (tr)
- 1.4us
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.192 g
Overview
This series contains two independent precision voltage comparators with unique characteristics. It can operate from either a single or dual supply, with supply current independent of supply voltage magnitude. These comparators feature another unique characteristic: the input common-mode voltage range includes ground potential, even when operating from a single supply voltage.
Applications
- Alarm and monitoring circuits
- Peak and zero-crossing detectors
- Logic level translation
- Window comparators
- Infrared receivers
Key features
- Wide supply voltage range
- Single supply: 3.0V to 30V
- Dual supply: ±1.5V to ±15V
- Ultra-low supply current: 0.8mA
- Independent of supply voltage
- Low input bias current: 25nA (typ)
- Low input offset current: ±5nA (typ)
- Low input offset voltage: ±7mV
- Differential input voltage range equal to supply voltage
- Output compatible with TTL, DTL, ECL, MOS, CMOS
