TECH PUBLICDatasheet (PDF)

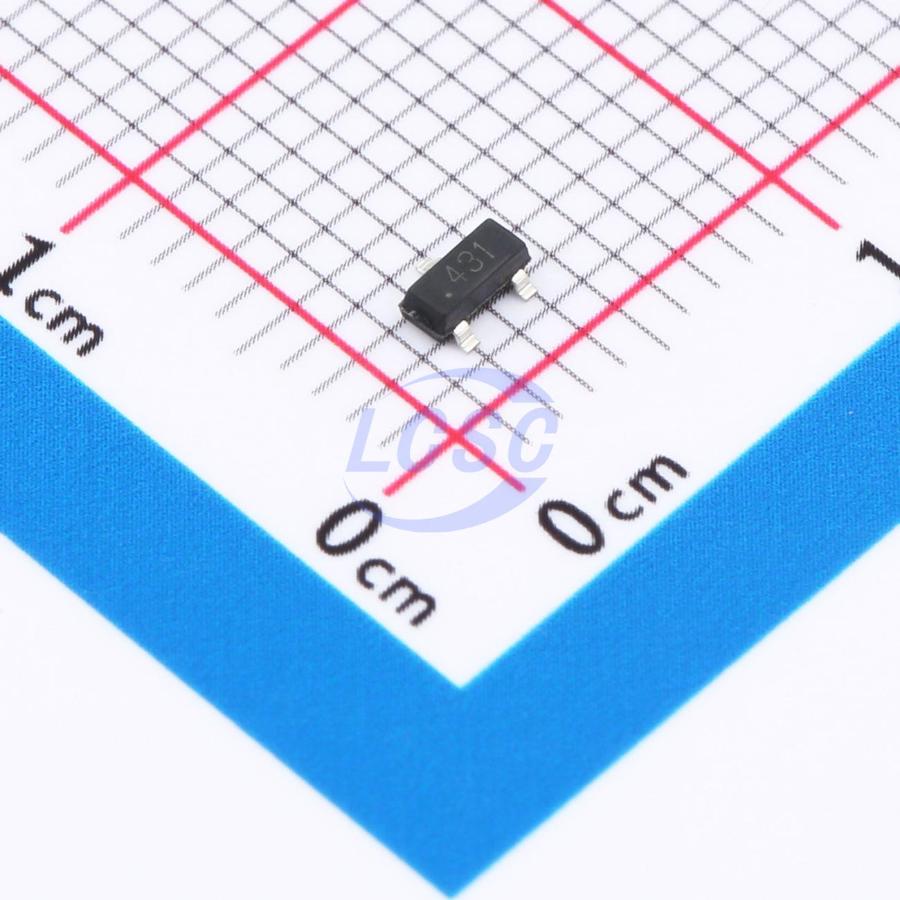

AS431ANTR-TP
2.5V~36V ±0.5% 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AS431ANTR-TP
- Store part #
- C47117517
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,580 in stock
#C47117517
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.69 | ₹56.90 |
| 100+ | ₹4.47 | ₹447.00 |
| 300+ | ₹3.85 | ₹1,155.00 |
| 3,000+ | ₹3.40 | ₹10,200.00 |
| 6,000+ | ₹3.03 | ₹18,180.00 |
| 9,000+ | ₹2.84 | ₹25,560.00 |
10 × ₹5.69
₹56.90
excl. GST
₹67.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AS431ANTR-TP
₹56.90 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The is a three terminal adjustable parallel regulator that can Set the output voltage through two external resistors Between Vref (approximately 2.5V) and 36V Any value. These devices have an output of 0.15 Ω (typ) Output impedance. Active output circuits can provide very sharp The conductivity characteristics of these devices enable them to be used in many applications Becoming an excellent substitute for Zener diodes in use, this Some applications include onboard voltage regulation, adjustable power supply, and power on/off Power off.
Applications
- Adjustable voltage and current reference
- Zener diode replacement products
- Voltage monitoring
- A comparator with an integrated benchmark
- Secondary side voltage regulation in flyback switch mode power supply (SMPS)
Key features
- Adjustable output voltage range: 2.5V~36V
- Low Dynamic Output Resistance: 0.15 Ω(typ)
- Low Temperature Deviation: 5mV(typ)
- Low Output Noise
- High Stability under Capacitive Load
- Current capacity range 1 - 100 mA accuracy 0.5%
- Package appearance SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AZ431BN-TP#C47117518TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,460 | ₹5.66 · 2,460 in stock | View |
 | TP431R250S3#C47117583TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 900 | ₹7.03 · 900 in stock | View |
 | TPNCP431AISNT1G#C47117630TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 855 | ₹9.91 · 855 in stock | View |
 | TPNCP431AVSNT1G#C47117631TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,605 | ₹10.03 · 2,605 in stock | View |
 | TS2431AILT-TP#C47117646TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,750 | ₹12.59 · 2,750 in stock | View |
