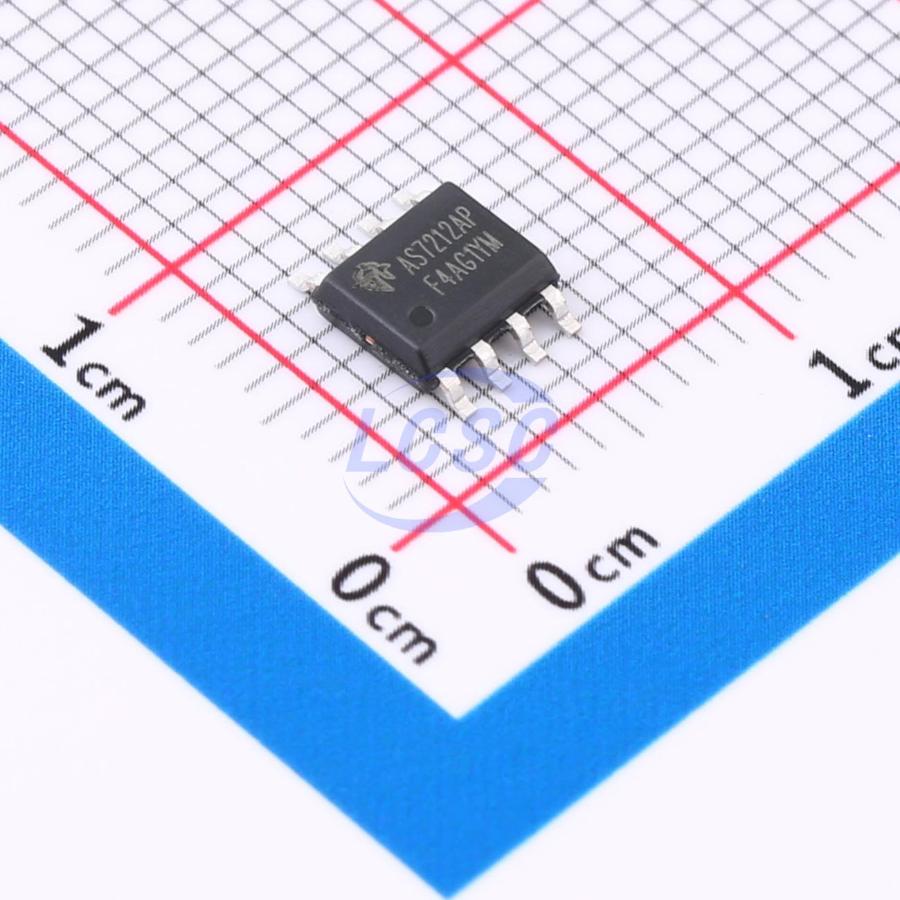

AS7212AP

9.5mΩ SOP-8 Power Supply Controllers, Monitors

SOP-8RoHSActive

High-performance, secondary-side synchronous rectification power switch

Manufacturer: SHARE
Manufacturer part #: AS7212AP
Store part #: C48886541
Package / case: SOP-8
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,580 in stock

#C48886541

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.73	₹78.65
50+	₹12.44	₹622.00
150+	₹10.79	₹1,618.50
500+	₹9.56	₹4,780.00
2,500+	₹8.57	₹21,425.00
4,000+	₹8.07	₹32,280.00

Quantity (min 5, multiples of 5)

5 × ₹15.73

₹78.65

excl. GST

₹92.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

AS7212AP

₹78.65 for 5 + GST

Specifications

MOS Breakdown Voltage: 60V
Function: Multi-mode compatible control;Abnormal state protection;Leading edge blanking
Switch Tube (Built-In/External): Built-in
RDS(on): 9.5mΩ
Operating Voltage: 4.9V~5.4V
Turn-Off Delay: 30ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

AS7212AP is a high-performance synchronous rectification power switch designed to replace secondary-side Schottky diodes in flyback converters. The device integrates a 60V ultra-low on-resistance power MOSFET to improve system efficiency, supports both high-side floating and low-side ground-referenced synchronous rectification topologies, and is compatible with DCM, QR mode, and CCM. It employs a proprietary VCC supply technology to prevent the chip from operating under undervoltage conditions, and integrates VCC undervoltage lockout, overvoltage clamping, and drive pin noise immunity. The product is available in a compact SOP-8 package.
