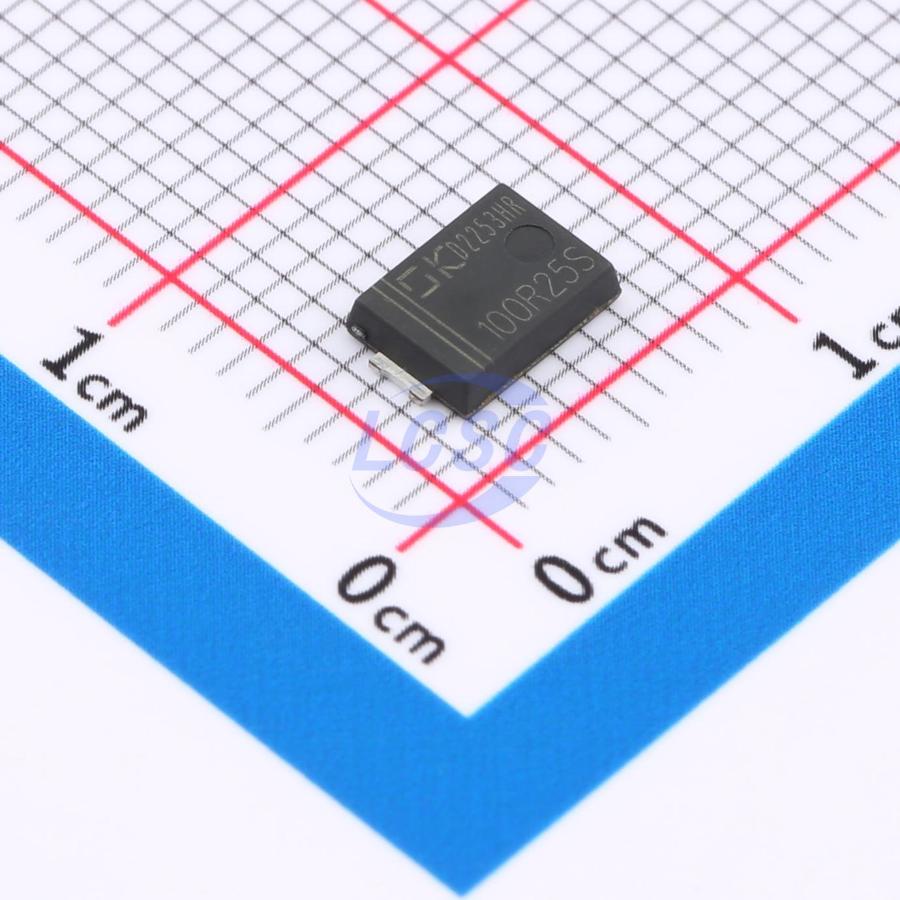

DK5V100R25S
150kHz 1 25mΩ SM-7 Power Supply Controllers, Monitors RoHS
High-performance dual-pin synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V100R25S
- Store part #
- C557564
- Package / case
- SM-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,830 in stock
#C557564
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.06 | ₹60.06 |
| 10+ | ₹47.06 | ₹470.60 |
| 30+ | ₹41.42 | ₹1,242.60 |
| 100+ | ₹34.48 | ₹3,448.00 |
| 500+ | ₹31.22 | ₹15,610.00 |
| 1,000+ | ₹29.49 | ₹29,490.00 |
1 × ₹60.06
₹60.06
excl. GST
₹70.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK5V100R25S
₹60.06 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 100V
- Function
- Adaptive synchronous rectification control;Multi-mode compatible control
- Frequency - Switching
- 150kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 25mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.161 g
Overview
DK5V100R25S is a simple and efficient two-pin synchronous rectification chip requiring no external components, capable of significantly reducing the conduction losses of conventional Schottky diodes and improving overall system efficiency.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 100V 25mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered technology, no external supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMI/C performance
- Direct replacement for Schottky diodes
- No external components required
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK5V60R30S#C557559Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 4,975 | ₹32.86 · 4,975 in stock | View |
 | DK5V85R25S#C2979257Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 50 | ₹51.73 · 50 in stock | View |
 | DK5V60R10S#C2979258Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 3,745 | ₹51.73 · 3,745 in stock | View |
 | DK5V100R25V#C53183612Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 400 | ₹60.74 · 400 in stock | View |
 | DK5V85R15#C557563Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 460 | ₹75.62 · 460 in stock | View |
