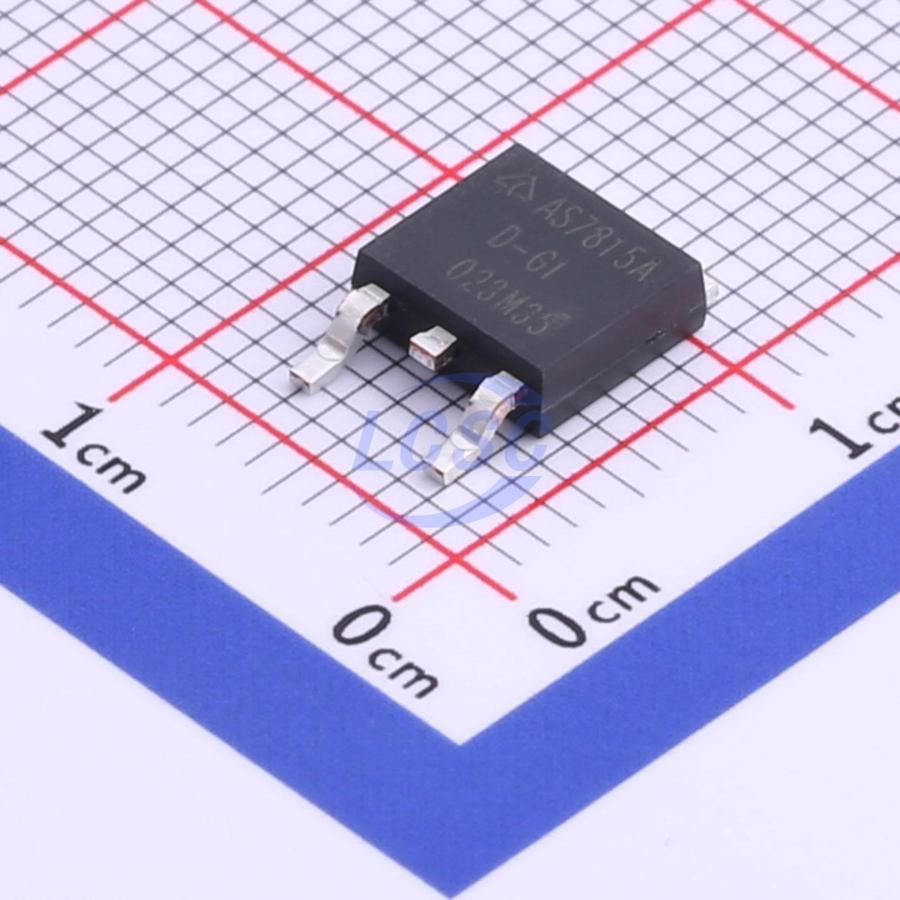

DIODES

AS7815ADTR-G1

15V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252-2ROHS3 CompliantActive

1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR

Manufacturer: DIODES
Manufacturer part #: AS7815ADTR-G1
Store part #: C460417
Package / case: TO-252-2
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,675 in stock

#C460417

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹55.67	₹55.67
10+	₹44.36	₹443.60
30+	₹39.58	₹1,187.40
100+	₹33.49	₹3,349.00
500+	₹30.88	₹15,440.00
1,000+	₹29.36	₹29,360.00

Quantity (min 1)

1 × ₹55.67

₹55.67

excl. GST

₹65.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AS7815ADTR-G1

₹55.67 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 15V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 6mA
Output Configuration: Positive
Operating Voltage: 32V
Output Current: 1A
Features: Short Circuit Protection;Thermal shutdown;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.502 g

Overview

The AS78XXA series are three- terminal positive voltage regulators designed for a wide variety of applications including local, on- card regulation. The AS78XXA are complete with internal current limiting, thermal shutdown protection, and safe- area compensation which make them virtually immune from output overload. If adequate heat sinking is provided, these regulators can deliver output currents of up to 1A. The AS78XXA are available in TO- 220- 3, TO- 220- 3 (2), TO- 252- 2 (5), TO252 (Type CJ) and TO- 263- 2 packages.

Applications

High- efficiency linear regulators
Post regulation for switching supplies
Microprocessor power supplies
Motherboards
Telecommunication

Key features

Output Current up to 1A
Fixed Output Voltages of 5V, 12V, 15V
Output Voltage Accuracy of ± 4% over the Full Temperature Range
Internal Short- Circuit Current Limiting
Internal Thermal Overload Protection
Output Transistor Safe- Area Protection
Low Load Regulation
Stable Performance in High Temperature
Lead- Free Packages: TO- 220- 3, TO- 220- 3 (2) - Totally Lead- Free; RoHS Compliant
Available in "Green" Packages: TO- 220- 3, TO- 220- 3 (2), and TO- 263- 2 - Lead- Free Finish; RoHS Compliant - Halogen and Antimony Free. "Green" Device
Lead- Free Packages, Available in "Green" Molding Compound: TO- 252- 2 (5), TO252 (Type CJ) - Totally Lead- Free & Fully RoHS Compliant - Halogen and Antimony Free. "Green" Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
CJ7815B-TFN-ARG#C19190328JSCJ · TO-252-2L	JSCJ	TO-252-2L	2,915	₹23.21 · 2,915 in stock	View
MC7815BDTRKG#C38381onsemi · TO-252-2(DPAK)	onsemi	TO-252-2(DPAK)	4,825	₹48.67 · 4,825 in stock	View
78M15#C5137167UMW · TO-252	UMW	TO-252	41,825	₹15.68 · 41,825 in stock	View
L78M15AGT#C52204775GREENMICRO · TO-252-2	GREENMICRO	TO-252-2	720	₹11.39 · 720 in stock	View
JTD78M15#C54928347JTD · TO-252-3	JTD	TO-252-3	1,450	₹12.49 · 1,450 in stock	View
