ASDsemiDatasheet (PDF)

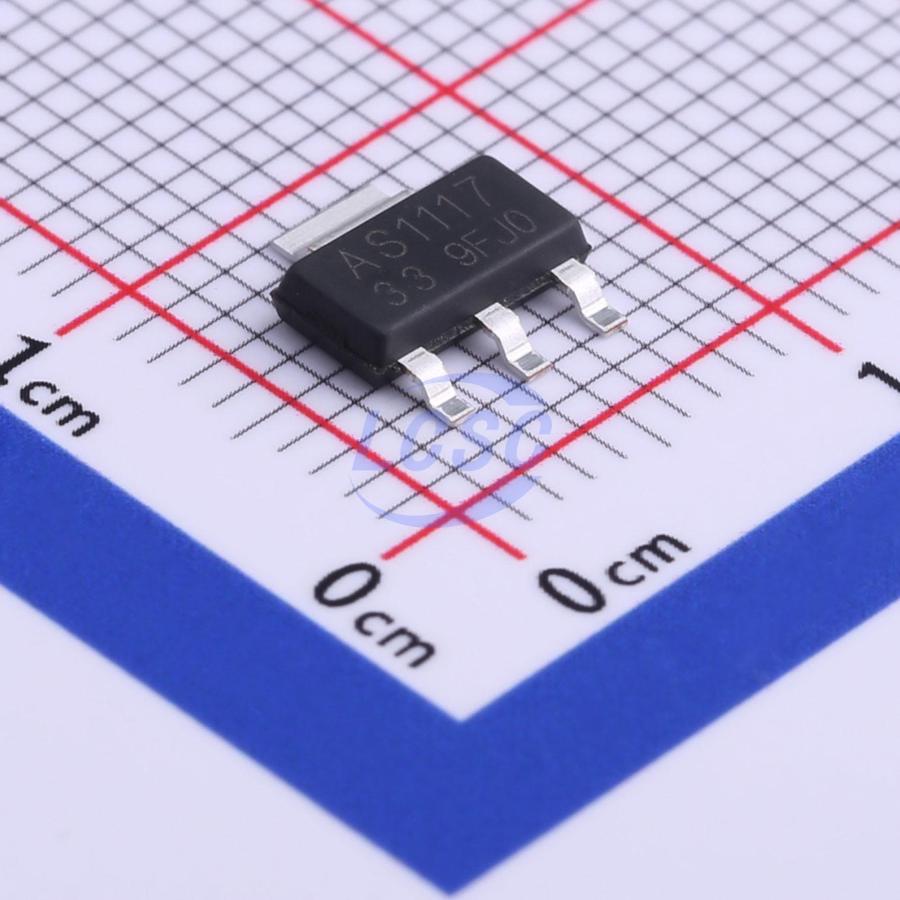

ASPL1117-3.3-DT-R
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
900mA Bipolar Linear Regulator
- Manufacturer
- ASDsemi
- Manufacturer part #
- ASPL1117-3.3-DT-R
- Store part #
- C520553
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,790 in stock
#C520553
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.33 | ₹103.30 |
| 100+ | ₹8.35 | ₹835.00 |
| 300+ | ₹7.36 | ₹2,208.00 |
| 2,500+ | ₹5.83 | ₹14,575.00 |
| 5,000+ | ₹5.24 | ₹26,200.00 |
| 10,000+ | ₹4.95 | ₹49,500.00 |
10 × ₹10.33
₹103.30
excl. GST
₹121.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ASPL1117-3.3-DT-R
₹103.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 28uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 900mA
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.282 g
Overview
ASPL1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 0.9A load current. ASPL1117 features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5.0V, ASPL1117 has an adjustable version, which can provide an output voltage from 1.25 to 5.0V with only two external resistors. ASPL1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%. ASPL1117 is available in SOT - 223 power package.
Applications
- Graphic Card
- LCD Monitor and LCD TV
- DVD Decode Board
- ADSL Modem
- WLAN
- Post Regulators For Switching Supplies
Key features
- Maximum output current is 900mA
- Range of operation input voltage: Max 24V
- Line regulation: 0.03%/V (typ.)
- Standby current: 2mA (typ.)
- Load regulation: 0.2% /A (typ.)
- Environment Temperature: -20°C ~ 85°C
