ASDsemiDatasheet (PDF)

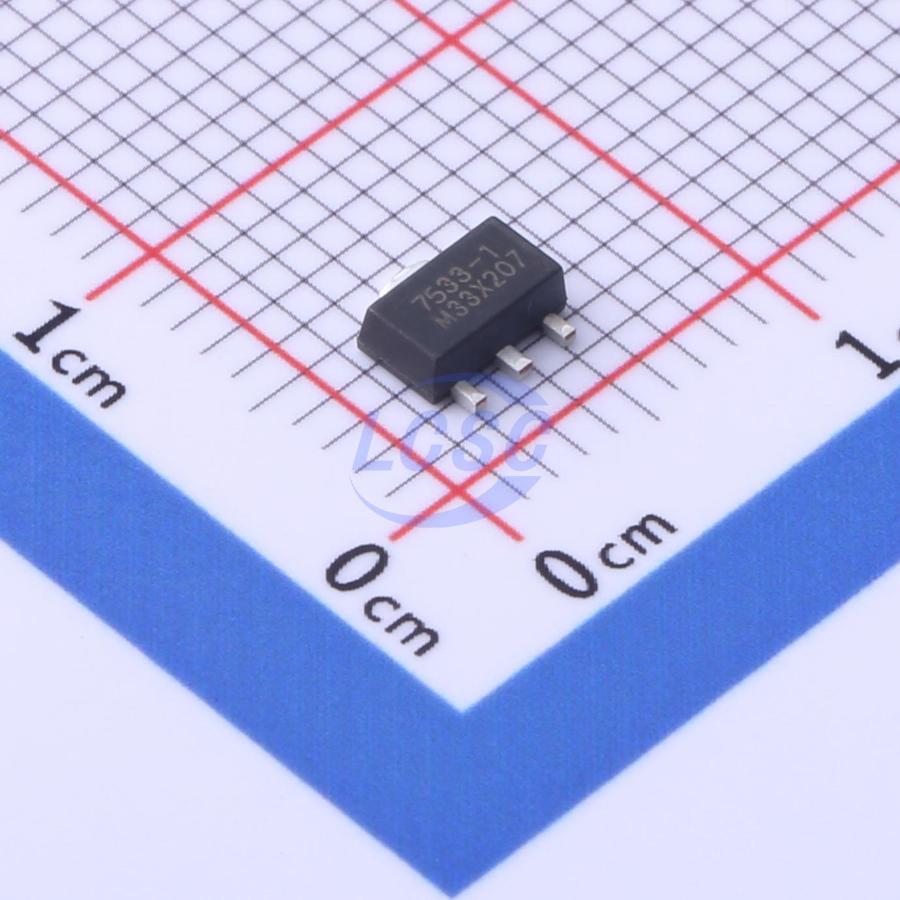

ASPL7533DI-R
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
100mA Low Power LDO
- Manufacturer
- ASDsemi
- Manufacturer part #
- ASPL7533DI-R
- Store part #
- C2758210
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2758210
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.98 | ₹79.80 |
| 100+ | ₹6.30 | ₹630.00 |
| 300+ | ₹5.46 | ₹1,638.00 |
| 1,000+ | ₹4.84 | ₹4,840.00 |
| 5,000+ | ₹4.34 | ₹21,700.00 |
| 10,000+ | ₹4.09 | ₹40,900.00 |
10 × ₹7.98
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ASPL7533DI-R
₹79.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
The ASPL75XX series is a set of three-terminal high cur-rent low voltage regulator implemented in CMOS tech-nology. They can deliver 100mA output current and allow an input voltage as high as 36V. They are avail-able with several fixed output voltages ranging 2.1V to 12.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Communication equipment
- Audio/Video equipment
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 36V)
- High output current: 100mA
- Output voltage accuracy: tolerance ±3%
- SOT23-3, SOT89 and SOT23-5 package
