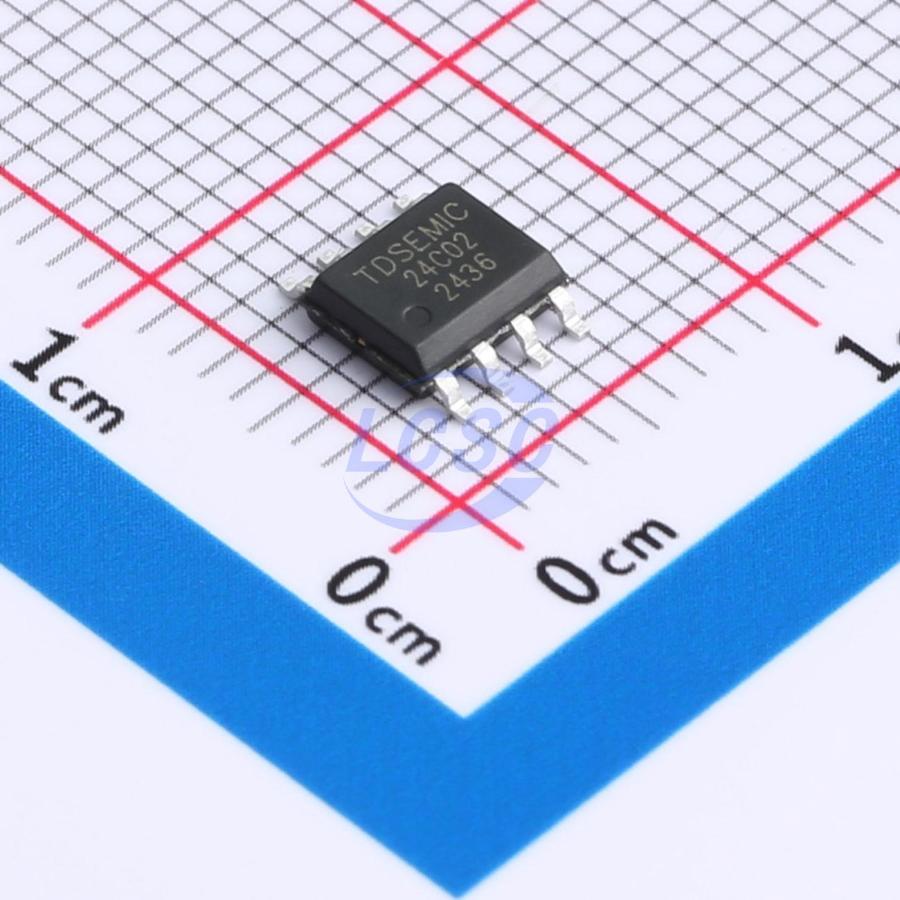

TDSEMIC
AT24C02-TD
2Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
Electrically Erasable PROM, Two-Wire Serial Interface
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,550 in stock
#C42421822
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.60 | ₹66.00 |
| 100+ | ₹5.19 | ₹519.00 |
| 300+ | ₹4.47 | ₹1,341.00 |
| 1,000+ | ₹3.94 | ₹3,940.00 |
| 4,000+ | ₹3.52 | ₹14,080.00 |
| 8,000+ | ₹3.31 | ₹26,480.00 |
10 × ₹6.60
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C02-TD
₹66.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.158 g
Overview
The 24C02/04/08/16/32/64 series are EEPROMs organized as 256/512/1024/2048/4096/8192×8 bits respectively, featuring a 2-wire serial interface. Operating voltage can be as low as 1.8V, with typical standby and active currents of 1μA and 1mA respectively. These devices support page write capability, with page sizes of 8/16/16/16/32/32 bytes respectively. Available in 8-pin PDIP, 8-pin SOP, and 5-pin SOT-23 packages.
Applications
- Smart instrumentation
- Industrial control
- Home appliances
- Computers & laptops
- Automotive electronics
Key features
- Wide operating voltage range: 1.8V ~ 5.5V
- Low voltage technology
- 1mA typical operating current
- 1μA typical standby current
- Memory organization: 24C02 = 256×8 bits, 24C04 = 512×8 bits, 24C08 = 1024×8 bits, 24C16 = 2048×8 bits, 24C32 = 4096×8 bits, 24C64 = 8192×8 bits
- 2-wire serial interface, fully compatible with I²C bus
- I²C clock frequency: 1MHz at 5V, 400kHz at 1.8V, 2.5V, 2.7V
- Schmitt trigger inputs for noise suppression
- Hardware data write protection
- Internal write cycle: 5ms max
- Byte write supported
- Page write supported: 8-byte page for 24C02, 16-byte page for 24C04/08/16, 32-byte page for 24C32/64
- Byte, random, and sequential read supported
- Auto address increment
- ESD protection: >2.5kV
- High reliability: 1,000,000 write/erase cycles, 100-year data retention
- Available in 8-pin DIP and 8-pin SOP packages
- Lead-free process, RoHS compliant
