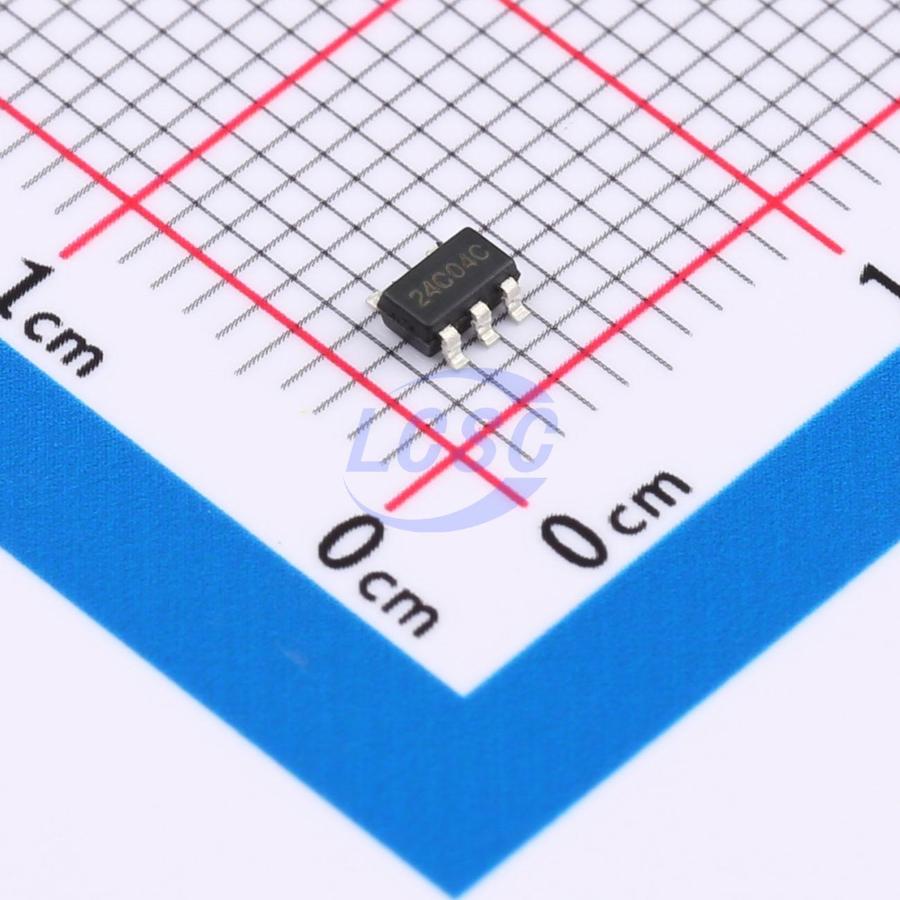

AT24C04C-STUM-T-TUDI
4Kbit 1MHz I2C SOT-23-5 Memory
4-Kbit I²C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,030 in stock
#C22469388
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.82 | ₹254.10 |
| 50+ | ₹40.10 | ₹2,005.00 |
| 150+ | ₹35.38 | ₹5,307.00 |
| 500+ | ₹28.74 | ₹14,370.00 |
| 2,500+ | ₹26.17 | ₹65,425.00 |
| 5,000+ | ₹24.66 | ₹1,23,300.00 |
5 × ₹50.82
₹254.10
excl. GST
₹299.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AT24C04C-STUM-T-TUDI
₹254.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The AT24C04 and AT24C08 provides 4096/8192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 512/1024 words of eight bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. 24C04C/08C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface.
Key features
- Low-voltage and standard-voltage operation: VCC = 1.7V to 5.5V
- Internally organized as 512x8 (4K), or 1024x8 (8K)
- I²C-compatible (2-wire) serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) compatibility
- Write Protect pin for hardware data protection
- 16-byte Page Write mode
- Partial Page Writes allowed
- High-reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green package options (Pb/Halide-free/RoHS compliant)
- 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
- Die options: wafer form and tape and reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAT24AA04TDI-GT3-TUDI#C42372937Tudi · SOT-23-5 | Tudi | SOT-23-5 | 2,985 | ₹37.94 · 2,985 in stock | View |
 | AT24C04D-STUM-T-TUDI#C22469389Tudi · SOT-23-5 | Tudi | SOT-23-5 | 2,375 | ₹36.00 · 2,375 in stock | View |
