MICROCHIP

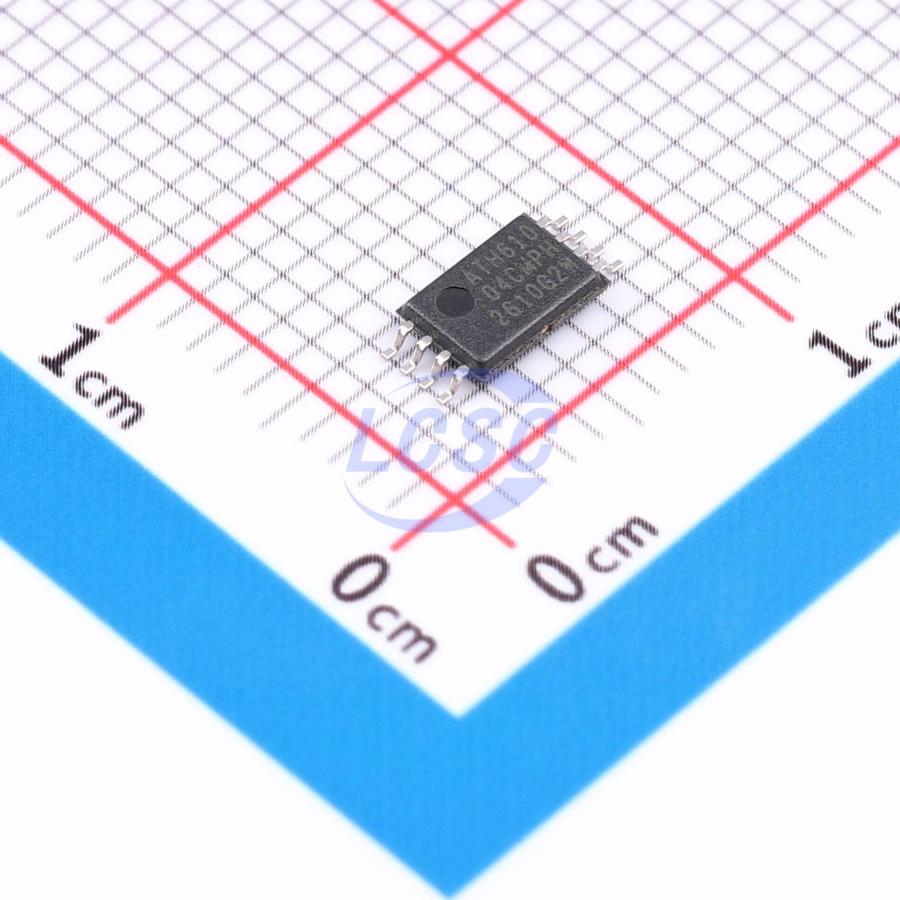

AT24C04C-XHM-T
4Kbit 1MHz I2C TSSOP-8 Memory RoHS
TSSOP-8ROHS CompliantActive
I²C-Compatible (Two-Wire) Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,489 in stock
#C177146
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.96 | ₹84.96 |
| 10+ | ₹69.33 | ₹693.30 |
| 30+ | ₹61.28 | ₹1,838.40 |
| 100+ | ₹53.67 | ₹5,367.00 |
| 500+ | ₹48.90 | ₹24,450.00 |
| 1,000+ | ₹46.50 | ₹46,500.00 |
1 × ₹84.96
₹84.96
excl. GST
₹100.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C04C-XHM-T
₹84.96 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.072 g
Overview
Key features
- Low-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 512 x 8 (4K) or 1,024 x 8 (8K)
- Industrial Temperature Range: -40°C to +85°C
- I²C-Compatible (Two-Wire) Serial Interface:
- 100 kHz Standard mode, 1.7V to 5.5V
- 400 kHz Fast mode, 1.7V to 5.5V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (μA maximum)
- 16-byte Page Write Mode:
- Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms Maximum
- ESD Protection > 4,000V
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C04C-XHM-B#C619840MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 79 | ₹133.60 · 79 in stock | View |
 | AT24CS04-XHM-T#C616775MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 10 | ₹73.78 · 10 in stock | View |
 | CAT24C04YI-GT3A-TUDI#C22469382Tudi · TSSOP-8 | Tudi | TSSOP-8 | 970 | ₹22.32 · 970 in stock | View |
 | AT24C04D-XHM-T-TUDI#C22469383Tudi · TSSOP-8 | Tudi | TSSOP-8 | 1,795 | ₹22.64 · 1,795 in stock | View |
 | AT24C04C-XHM-T-TUDI#C22469384Tudi · TSSOP-8 | Tudi | TSSOP-8 | 1,475 | ₹29.09 · 1,475 in stock | View |
