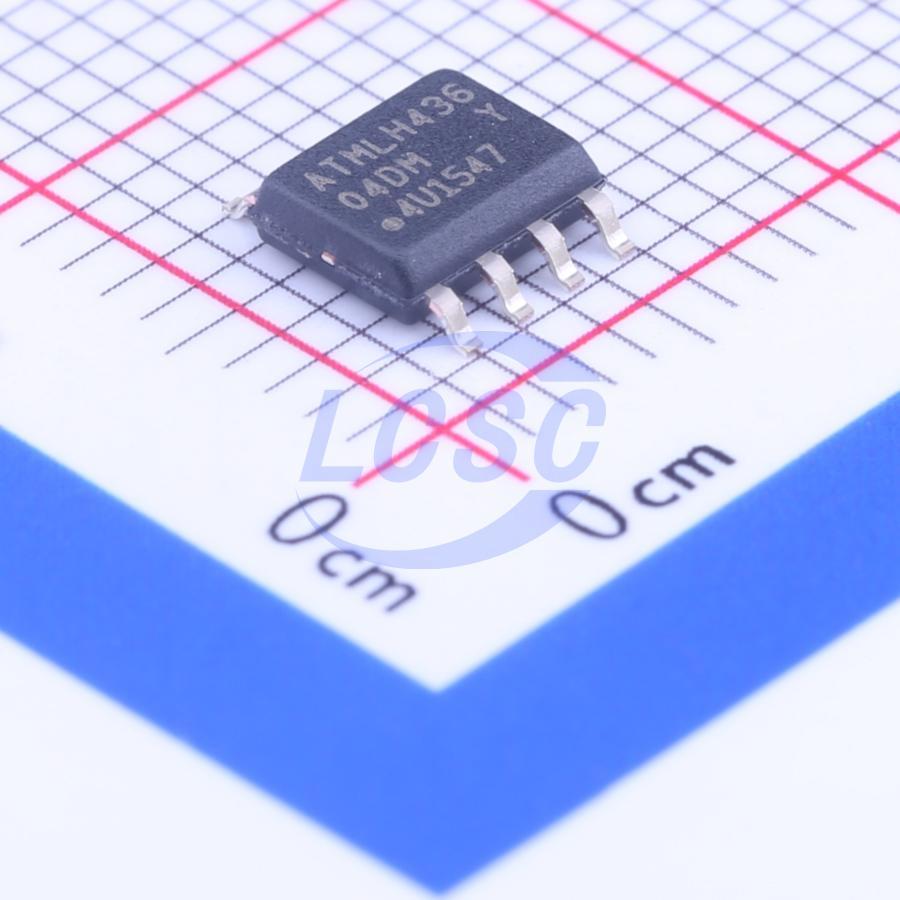

AT24C04D-SSHM-T
4Kbit 1MHz I2C SOIC-8 Memory
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,955 in stock
#C116667
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.75 | ₹193.75 |
| 50+ | ₹31.08 | ₹1,554.00 |
| 150+ | ₹27.80 | ₹4,170.00 |
| 500+ | ₹22.73 | ₹11,365.00 |
| 2,500+ | ₹20.90 | ₹52,250.00 |
| 4,000+ | ₹19.81 | ₹79,240.00 |
5 × ₹38.75
₹193.75
excl. GST
₹228.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C04D-SSHM-T
₹193.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~3.6V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 4500ns;900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.8uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The Atmel AT24C04D provides 4,096 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 512 words of 8 bits each. The device’s cascadable feature allows up to four devices to share a common 2-wire bus. This device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, and 8-ball VFBGA packages. The entire family of packages operate from 1.7V to 3.6V.
Key features
- Low Voltage Operation VCC = 1.7V to 3.6V
- Internally Organized as 512 x 8 (4K)
- I2C-compatible (2-Wire) Serial Interface 100kHz Standard Mode, 1.7V to 3.6V 400kHz Fast Mode, 1.7V to 3.6V 1MHz Fast Mode Plus (FM+), 2.5V to 3.6V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin For Full Array Hardware Data Protection
- Ultra Low Active Current (1mA Max) and Standby Current (0.8μA Max)
- 16-byte Page Write Mode Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle within 5ms Max
- High Reliability Endurance: 1,000,000 Write Cycles Data Retention: 100 Years
- Green Package Options (Lead-free/Halide-free/RoHS Compliant) 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, and 8-ball VFBGA
- Die Sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX24LC04BDRG#C2987257HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 160 | ₹12.33 · 160 in stock | View |
| AT24C04C-SSHM-B#C1348842MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4 | ₹127.26 · 4 in stock | View | |
 | AT24C04M/TR#C2688456HGSEMI · SOP-8 | HGSEMI | SOP-8 | 45 | ₹11.76 · 45 in stock | View |
 | P24C04C-SSH-MIR#C2977250PUYA · SOP-8 | PUYA | SOP-8 | 2,150 | ₹10.19 · 2,150 in stock | View |
 | HG24LC04M/TR#C3007879HGSEMI · SOP-8 | HGSEMI | SOP-8 | 710 | ₹13.97 · 710 in stock | View |
