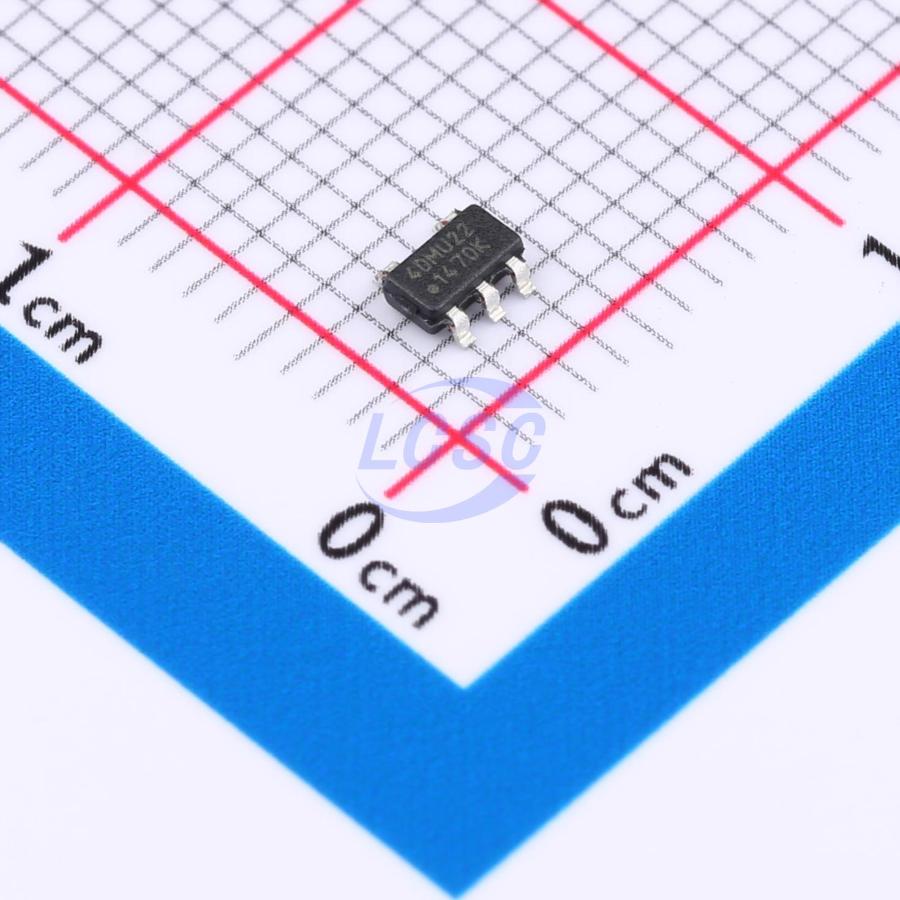

AT24C04D-STUM-T
4Kbit 1MHz I2C SOT-23-5 Memory RoHS
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,777 in stock
#C2061208
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.11 | ₹76.11 |
| 10+ | ₹60.67 | ₹606.70 |
| 30+ | ₹52.84 | ₹1,585.20 |
| 100+ | ₹45.23 | ₹4,523.00 |
| 500+ | ₹40.67 | ₹20,335.00 |
| 1,000+ | ₹38.27 | ₹38,270.00 |
1 × ₹76.11
₹76.11
excl. GST
₹89.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C04D-STUM-T
₹76.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~3.6V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 4500ns;900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.8uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.87 g
Overview
The Atmel AT24C04D provides 4,096 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 512 words of 8 bits each. The device’s cascadable feature allows up to four devices to share a common 2-wire bus. This device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, and 8-ball VFBGA packages. The entire family of packages operate from 1.7V to 3.6V.
Key features
- Low Voltage Operation VCC = 1.7V to 3.6V
- Internally Organized as 512 x 8 (4K)
- I2C-compatible (2-Wire) Serial Interface 100kHz Standard Mode, 1.7V to 3.6V 400kHz Fast Mode, 1.7V to 3.6V 1MHz Fast Mode Plus (FM+), 2.5V to 3.6V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin For Full Array Hardware Data Protection
- Ultra Low Active Current (1mA Max) and Standby Current (0.8μA Max)
- 16-byte Page Write Mode Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle within 5ms Max
- High Reliability Endurance: 1,000,000 Write Cycles Data Retention: 100 Years
- Green Package Options (Lead-free/Halide-free/RoHS Compliant) 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP(1), 5-lead SOT23, and 8-ball VFBGA
- Die Sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CSW040-STUM-T#C5224828MICROCHIP · TSOT-23-5 | MICROCHIP | TSOT-23-5 | 15 | ₹78.26 · 15 in stock | View |
 | HX24LC04BDBVRG#C2987266HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 1,910 | ₹12.81 · 1,910 in stock | View |
 | AT24C04C-STUM-T#C2061136MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 44 | ₹280.82 · 44 in stock | View |
 | AT24CS04-STUM-T#C616259MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 61 | ₹161.10 · 61 in stock | View |
 | HG24C04M5/TR#C7432066HGSEMI · SOT23-5 | HGSEMI | SOT23-5 | 2,575 | ₹14.02 · 2,575 in stock | View |
