TDSEMIC

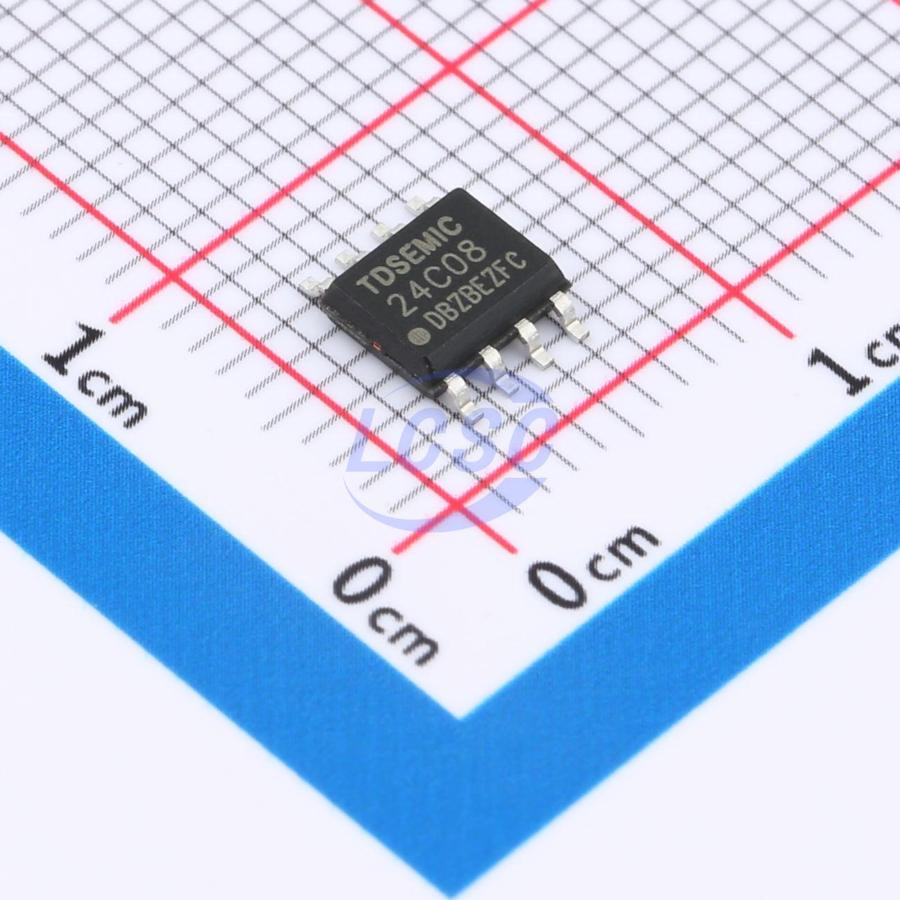

AT24C08-TD
8Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
Electrically Erasable PROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,090 in stock
#C42421824
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.98 | ₹69.90 |
| 50+ | ₹11.07 | ₹553.50 |
| 150+ | ₹9.62 | ₹1,443.00 |
| 500+ | ₹8.52 | ₹4,260.00 |
| 2,500+ | ₹7.65 | ₹19,125.00 |
| 4,000+ | ₹7.21 | ₹28,840.00 |
5 × ₹13.98
₹69.90
excl. GST
₹82.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C08-TD
₹69.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
The 24C02/04/08/16/32/64 series are EEPROMs organized as 256×8-bit, 512×8-bit, 1024×8-bit, 2048×8-bit, 4096×8-bit, and 8192×8-bit respectively, with a 2-wire serial interface. Operating voltage as low as 1.8V, typical standby current 1μA, typical operating current 1mA. These devices support page write capability with page sizes of 8 bytes, 16 bytes, 16 bytes, 16 bytes, 32 bytes, and 32 bytes respectively. Available in 8-pin PDIP, 8-pin SOP, and 5-pin SOT-23-5 packages.
Applications
- Smart instrumentation
- Industrial control
- Home appliances
- Computers and laptops
- Automotive electronics
- Communications equipment
Key features
- Wide operating voltage range: 1.8V ~ 5.5V
- Low-voltage technology
- Typical operating current: 1mA
- Typical standby current: 1μA
- Memory organization:
- 24C02: 256 × 8-bit (2K-bit)
- 24C04: 512 × 8-bit (4K-bit)
- 24C08: 1024 × 8-bit (8K-bit)
- 24C16: 2048 × 8-bit (16K-bit)
- 24C32: 4096 × 8-bit (32K-bit)
- 24C64: 8192 × 8-bit (64K-bit)
- 2-wire serial interface, fully compatible with I²C bus
- I²C clock frequency: 1MHz at 5V, 400kHz at 1.8V, 2.5V, 2.7V
- Schmitt trigger inputs with noise suppression
- Hardware data write protection
- Internal write cycle time: 5ms maximum
- Byte write operation support
- Page write support: 8-byte page for 24C02, 16-byte page for 24C04/08/16, 32-byte page for 24C32/64
- Byte read, random read, and sequential read support
- Auto-increment addressing
- ESD protection: greater than 2.5kV
- High reliability
- Endurance: 1,000,000 write/erase cycles
- Data retention: 100 years
- Available in 8-pin DIP and 8-pin SOP packages
- Lead-free process, RoHS compliant
