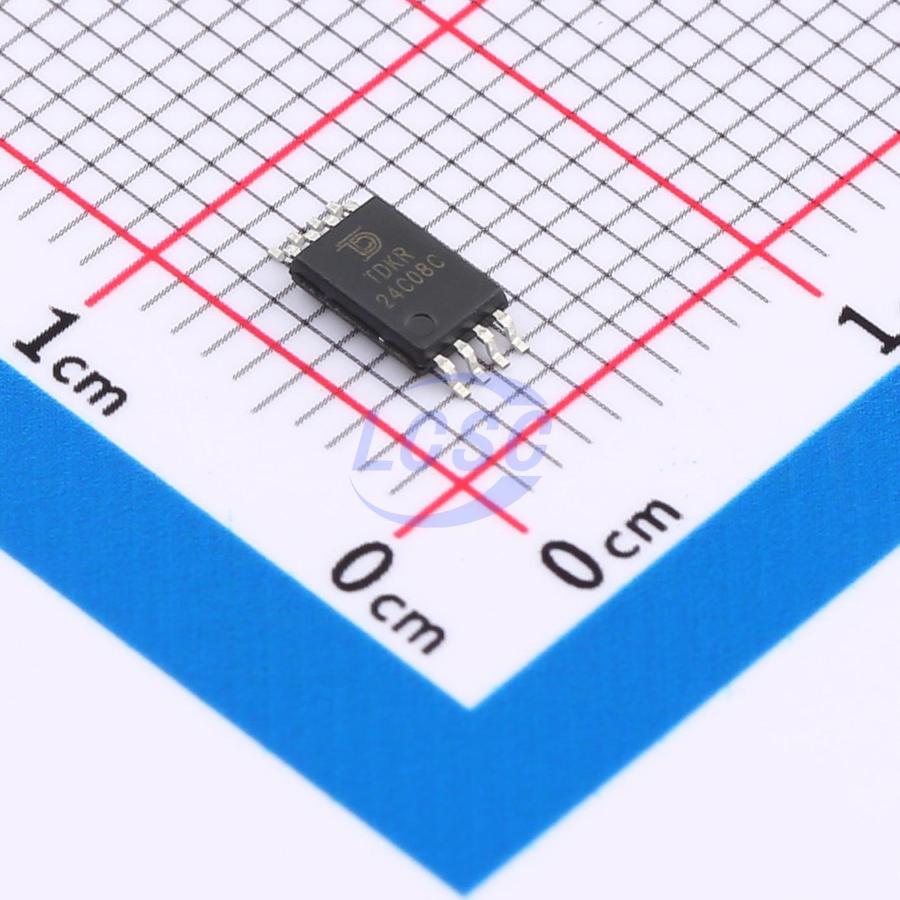

AT24C08C-XHM-T-TUDI
8Kbit 1MHz I2C TSSOP-8 Memory
8-Kbit I²C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C22469395
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.04 | ₹125.20 |
| 50+ | ₹21.91 | ₹1,095.50 |
| 150+ | ₹20.57 | ₹3,085.50 |
| 500+ | ₹18.89 | ₹9,445.00 |
| 2,500+ | ₹17.56 | ₹43,900.00 |
| 5,000+ | ₹17.11 | ₹85,550.00 |
5 × ₹25.04
₹125.20
excl. GST
₹147.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AT24C08C-XHM-T-TUDI
₹125.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The AT24C04 and AT24C08 provides 4096/8192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 512/1024 words of eight bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. 24C04C/08C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface.
Key features
- Low-voltage and standard-voltage operation: VCC = 1.7V to 5.5V
- Internally organized as 512x8 (4K), or 1024x8 (8K)
- I²C-compatible (2-wire) serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) compatibility
- Write Protect pin for hardware data protection
- 16-byte Page Write mode
- Partial Page Writes allowed
- High-reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green package options (Pb/Halide-free/RoHS compliant)
- 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
- Die options: wafer form and tape and reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAT24C08YI-GT3A-TUDI#C22469393Tudi · TSSOP-8 | Tudi | TSSOP-8 | 250 | ₹27.19 · 250 in stock | View |
 | AT24C08B-TH-T-TUDI#C22469396Tudi · TSSOP-8 | Tudi | TSSOP-8 | 2,415 | ₹24.79 · 2,415 in stock | View |
 | AT24C08D-XHM-T-TUDI#C22469394Tudi · TSSOP-8 | Tudi | TSSOP-8 | 1,690 | ₹20.84 · 1,690 in stock | View |
