GREENMICRODatasheet (PDF)

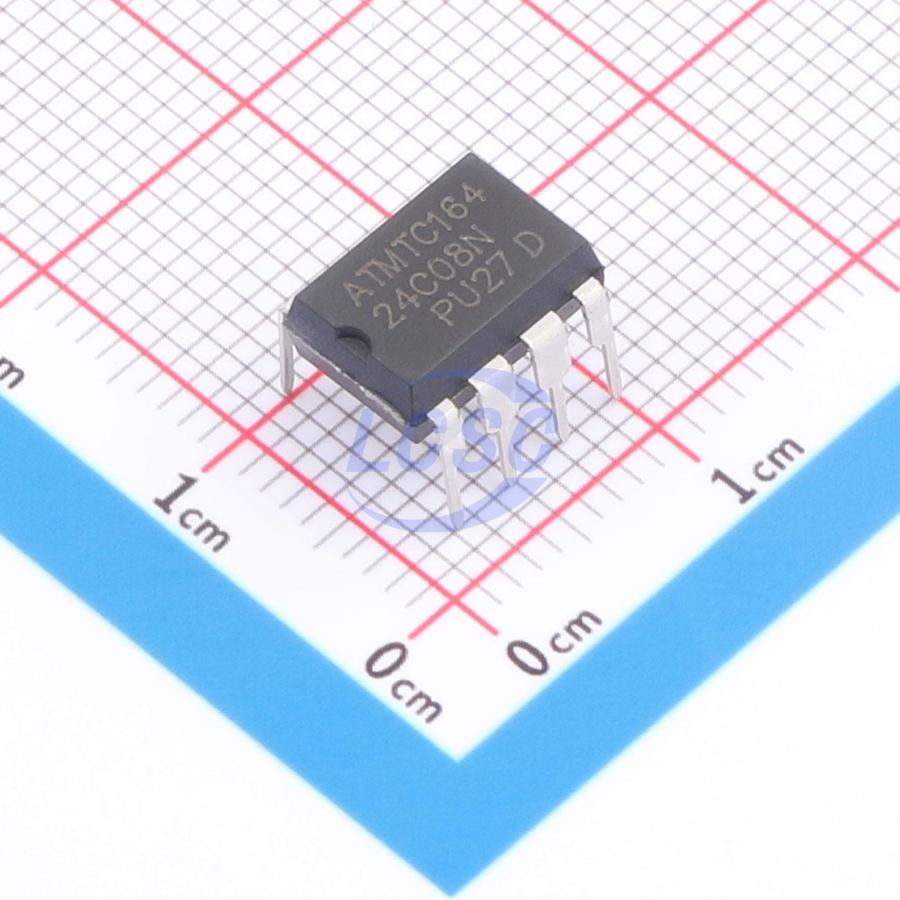

AT24C08CP164
8Kbit 1MHz I2C DIP-8 Memory
DIP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- AT24C08CP164
- Store part #
- C51026295
- Package / case
- DIP-8
- Category
- Memory
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C51026295
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.11 | ₹55.55 |
| 50+ | ₹8.82 | ₹441.00 |
| 150+ | ₹7.67 | ₹1,150.50 |
| 500+ | ₹6.81 | ₹3,405.00 |
| 2,000+ | ₹6.13 | ₹12,260.00 |
| 4,000+ | ₹5.79 | ₹23,160.00 |
5 × ₹11.11
₹55.55
excl. GST
₹65.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AT24C08CP164
₹55.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.8V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 4uA
- Write Cycle Endurance
- 1 million cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.688 g
Overview
This product is a serial EEPROM device compatible with I2C, featuring a memory array capacity of 8 Kbits (1 Kbytes) organized as 16 bytes per page.
Key features
- Single-supply voltage with high-speed mode: minimum operating voltage down to 1.7V; supports 1 MHz clock frequency at 2.5V to 5.5V; supports 400kHz clock frequency at 1.7V to 5.5V.
- Low-power CMOS technology: typical read current 0.2mA (at 400kHz); typical write current 0.8mA (at 400kHz).
- Schmitt trigger and filtered inputs for noise suppression.
- Sequential read and random read support.
- Page write mode with partial page write capability.
- Write protection for the entire memory array.
- One additional writeable lockable page.
- Self-timed write cycle (5ms max).
- High reliability: 1,000,000 write cycle endurance; 100-year data retention.
- Available packages: DIP8, SOP8, TSSOP8, SOT23-5, TSOT23-5, MSOP8.
