HXY MOSFETDatasheet (PDF)

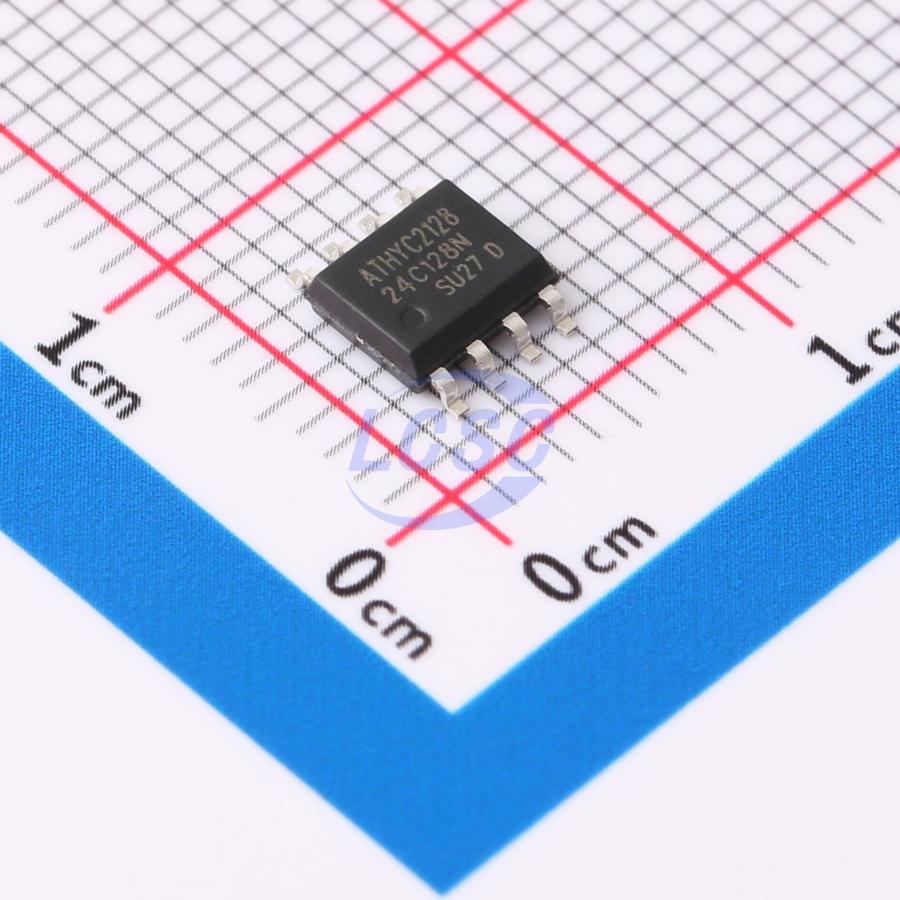

AT24C128-HXY
128Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
128K-bit Serial EEPROM
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AT24C128-HXY
- Store part #
- C18198381
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,654 in stock
#C18198381
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.62 | ₹26.62 |
| 10+ | ₹21.12 | ₹211.20 |
| 30+ | ₹18.75 | ₹562.50 |
| 100+ | ₹15.81 | ₹1,581.00 |
| 500+ | ₹14.50 | ₹7,250.00 |
| 1,000+ | ₹13.71 | ₹13,710.00 |
1 × ₹26.62
₹26.62
excl. GST
₹31.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C128-HXY
₹26.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 2.2V~5.5V;5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.114 g
Overview
The HT24LC128 is a 128K-bit 2-wire serial EEPROM fabricated using CMOS floating-gate technology. Its 128K-bit memory is organized as 16K words of 8 bits each. The device is optimized for industrial and commercial applications where low power consumption and low voltage operation are essential. Up to eight HT24LC128 devices can be connected to the same 2-wire bus. The HT24LC128 is guaranteed for 1 million erase/write cycles and 40 years of data retention.
Applications
- Industrial control
- Consumer electronics
- Communications equipment
- Instrumentation
- Data storage modules
Key features
- Operating voltage: 2.2V ~ 5.5V (temperature range -40℃ to +85℃)
- Memory capacity: 128K (16K × 8)
- 2-wire I²C serial interface
- Write cycle time: 5ms max
- Auto erase-before-write operation
- Partial page write supported
- 64-byte page write mode
- Write operation with built-in timer
- Hardware-controlled write protection
- 40-year data retention
- 1,000,000 erase/write cycles per byte
- 8-pin DIP/SOP(SOIC-8)/TSSOP package
