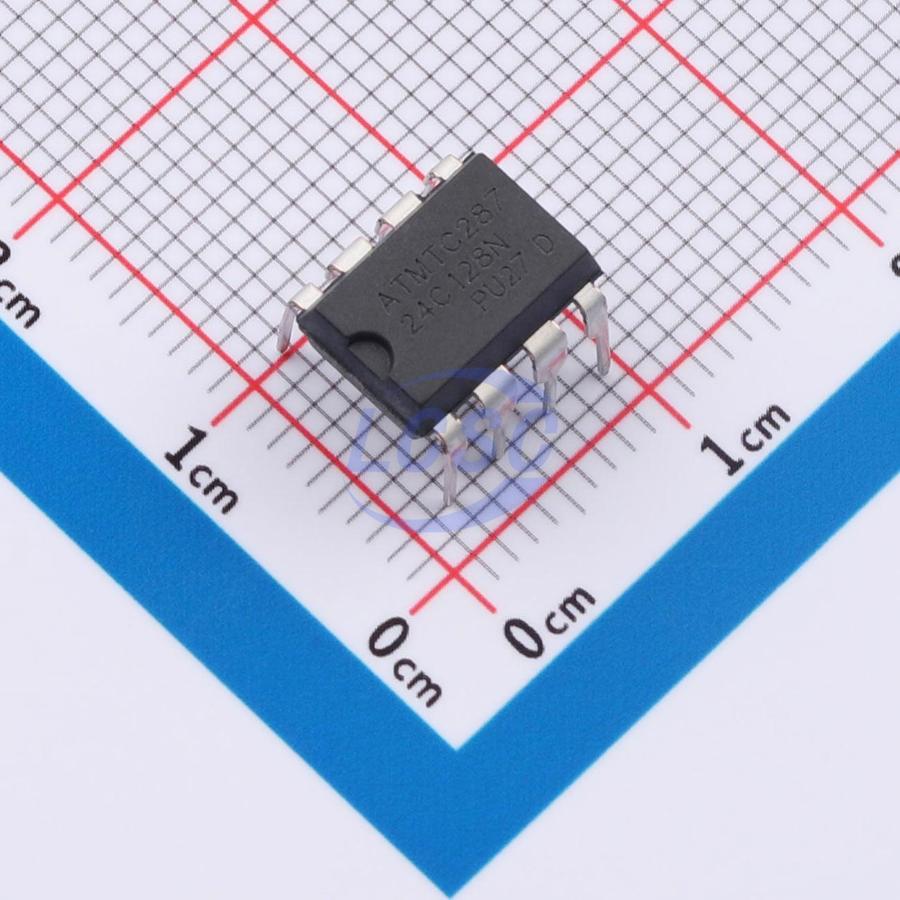

AT24C128BD
128Kbit 1MHz I2C DIP-8 Memory
- Manufacturer
- GREENMICRO
- Manufacturer part #
- AT24C128BD
- Store part #
- C51927311
- Package / case
- DIP-8
- Category
- Memory
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C51927311
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.41 | ₹127.05 |
| 50+ | ₹19.92 | ₹996.00 |
| 150+ | ₹17.57 | ₹2,635.50 |
| 500+ | ₹14.63 | ₹7,315.00 |
| 2,000+ | ₹13.32 | ₹26,640.00 |
| 4,000+ | ₹12.54 | ₹50,160.00 |
5 × ₹25.41
₹127.05
excl. GST
₹149.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AT24C128BD
₹127.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1 million cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.856 g
Overview
The 24C128 series is a 131,072-bit serial EEPROM organized as 16,384 words of 8 bits (one byte) each. The device is fabricated using a proprietary advanced CMOS process, suitable for low-power and low-voltage applications. These devices are available in standard 8-pin DIP, 8-pin SOP, 8-pin MSOP, 8-pin TSSOP, and 8-pin UDFN packages. All read and write operations are implemented via a standard two-wire serial interface. The extended Vcc operating voltage range (1.8V to 5.5V) supports a wide range of applications.
Key features
- Low-voltage and low-power operation: 24C128: Vcc = 1.8V to 5.5V
- 64-byte page write mode
- Partial page write operation supported
- Internal organization: 16,384 × 8 (128K)
- Standard 2-wire bidirectional serial interface
- Schmitt trigger inputs for noise filtering
- Self-timed write cycle (5ms max)
- Compatible with 1 MHz (2.5–5V) and 400 kHz (1.8V)
- Auto-erase before write operation
- Write protect pin for hardware data protection
- High reliability: 1,000,000 write/erase cycles typical endurance
- 100-year data retention
- Industrial temperature range: -40°C to 85°C
- Standard 8-pin DIP/SOP/MSOP/TSSOP/UDFN lead-free packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AT24C128CP140#C51026303GREENMICRO · DIP-8 | GREENMICRO | DIP-8 | On request | Price on request | Quote | |
