HGSEMI

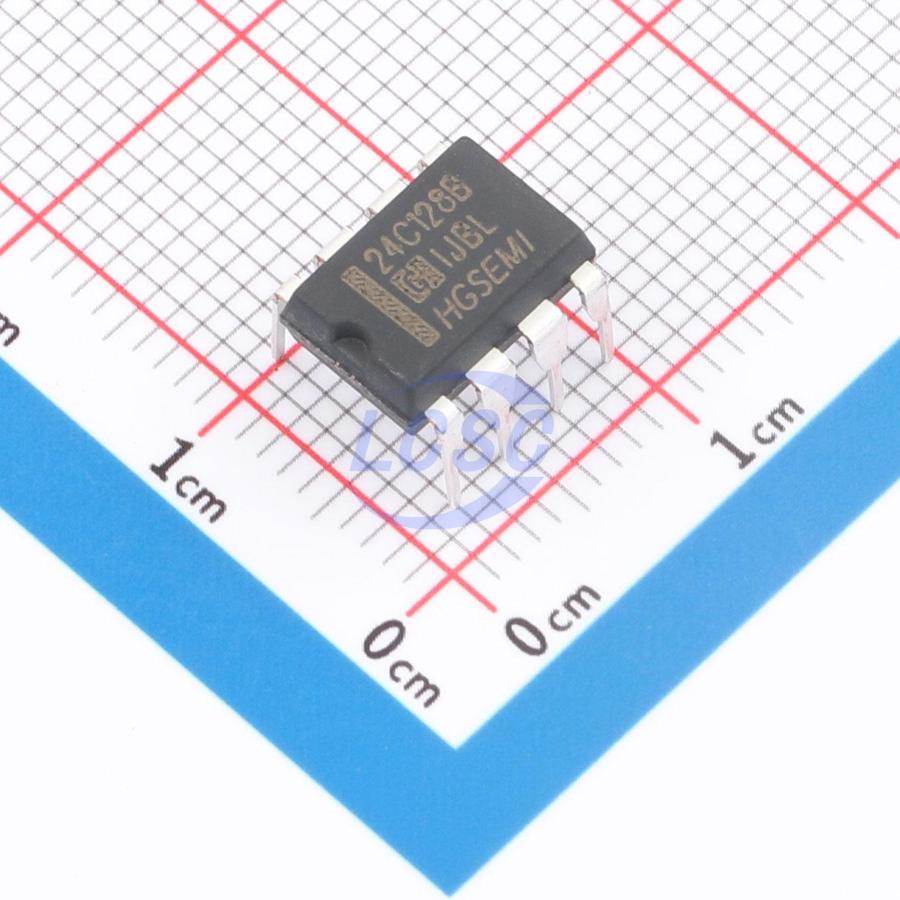

AT24C128BN
128Kbit 1MHz I2C DIP-8 Memory
DIP-8RoHSActive
128Kbit I2C Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,625 in stock
#C41415959
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.10 | ₹130.50 |
| 50+ | ₹20.49 | ₹1,024.50 |
| 150+ | ₹18.10 | ₹2,715.00 |
| 500+ | ₹15.10 | ₹7,550.00 |
| 2,500+ | ₹13.76 | ₹34,400.00 |
| 5,000+ | ₹12.97 | ₹64,850.00 |
5 × ₹26.10
₹130.50
excl. GST
₹153.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AT24C128BN
₹130.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;1mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.047 g
Overview
AT24C128B is a standalone |2C compatible Serial EEPROM chip. The total memory array density is 128K bits, which is composed of 256 pages with 64 bytes per page.
Key features
- Single supply voltage and high speed: − 1 MHz clock from 1.7 V to 5.5 V
- Operating Temperature range: − 40℃ to +85℃
- Compatible with all |²C bus mode: − 100kHz − 400kHz, − 1MHz
- Memory Array: − 128Kbit EEPROM − 256 Pages − Page size: 64 byte
- Schmitt Trigger based noise filter for input noise suppression
- Current, Random and Sequential Read modes
- Write Operations: − Byte write within 5 ms − Page write within 5 ms − Partial Page-writes support − Self-Timed Write Cycle
- Hardware write protection for the whole memory array
- ESD: HBM up to 4KV
- High Reliability: − More than 1 million Write Endurance Cycles − More than 100 years Data Retention
- Package：SOP-8, TSSOP-8, DFN-8, DIP-8, MSOP-8, SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C128BN#C41415961HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,890 | ₹26.01 · 1,890 in stock | View |
 | AT24C128AN#C22396895HGSEMI · DIP-8 | HGSEMI | DIP-8 | 45 | ₹40.80 · 45 in stock | View |
 | HG24C128N#C19193535HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,485 | ₹24.99 · 1,485 in stock | View |
 | AT24C128N#C434603HGSEMI · DIP-8 | HGSEMI | DIP-8 | 400 | ₹24.49 · 400 in stock | View |
