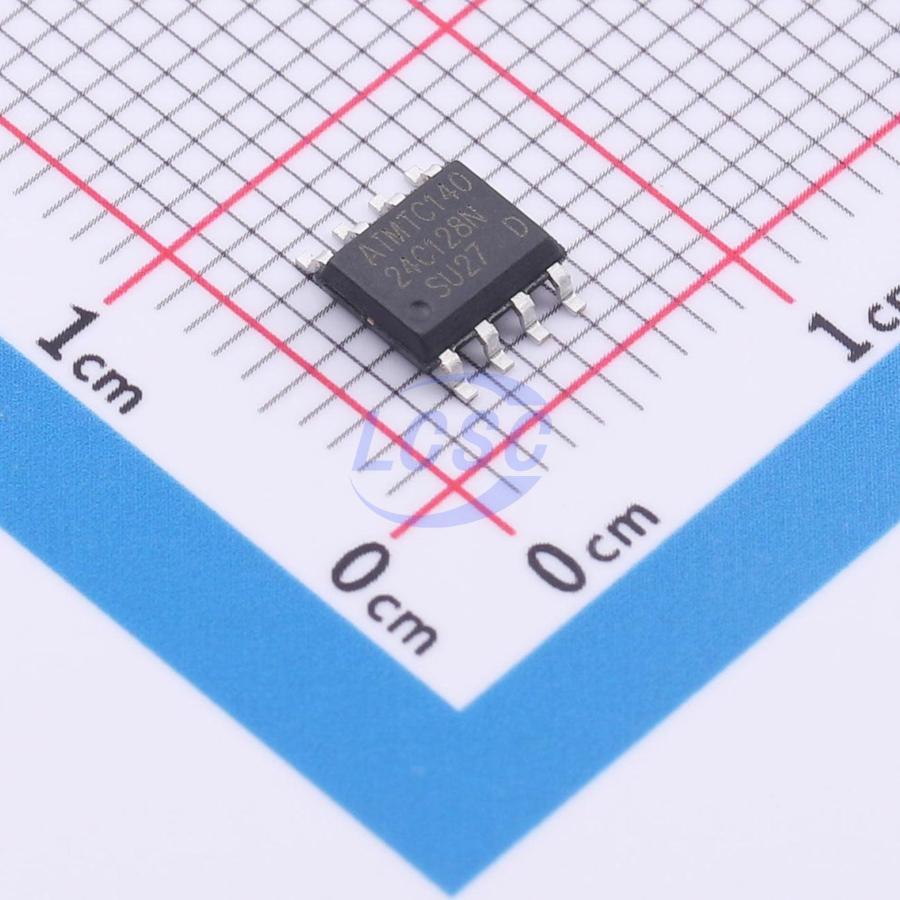

AT24C128CDR140

128Kbit 1MHz I2C SOP-8 Memory

SOP-8RoHSActive

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

23,700 in stock

#C51026304

Stock & price checked 6 days ago

Quantity (min 5, multiples of 5)

5 × ₹14.37

₹71.85

excl. GST

₹84.78 incl. 18% GST

AT24C128CDR140

₹71.85 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Noise suppression function;Built-in power-on reset (POR);Hardware write protection function
Memory Size: 128Kbit
Voltage - Supply: 1.8V~5.5V;0.8mA
Clock Frequency: 1MHz
Access Time: 900ns
Data Retention - TDR (Year): 100 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 3uA
Write Cycle Endurance: 1 million cycles
Interface: I2C

24C128 is an I²C-compatible serial EEPROM device. It contains a 128 Kbit (16 Kbyte) memory array, organized as 64 bytes per page.

Single-supply voltage with high-speed mode: minimum operating voltage down to 1.7V; supports 1 MHz clock at 2.5V to 5.5V; supports 400kHz clock at 1.7V to 5.5V
Low-power CMOS technology: typical read current 0.2mA (400kHz); typical write current 0.8mA (400kHz)
Schmitt trigger filtered inputs for noise suppression
Sequential and random read modes supported
Page write mode with partial page write capability; full array write protection; additional writable lockable page and 128-bit serial number
Self-timed write cycle (5ms max)
High reliability: endurance: 1,000,000 write cycles; data retention: 100 years; ESD protection (HBM): 6kV; latch-up immunity: +/- 200mA (25℃)
Packages: PDIP8, SOP8, TSSOP8, MSOP8, DFN8/UDFN8, SOT23-5, TSOT23-5
