Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,920 in stock
#C53200132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.03 | ₹115.15 |
| 50+ | ₹18.19 | ₹909.50 |
| 150+ | ₹16.11 | ₹2,416.50 |
| 500+ | ₹13.52 | ₹6,760.00 |
| 2,500+ | ₹12.36 | ₹30,900.00 |
| 5,000+ | ₹11.67 | ₹58,350.00 |
5 × ₹23.03
₹115.15
excl. GST
₹135.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

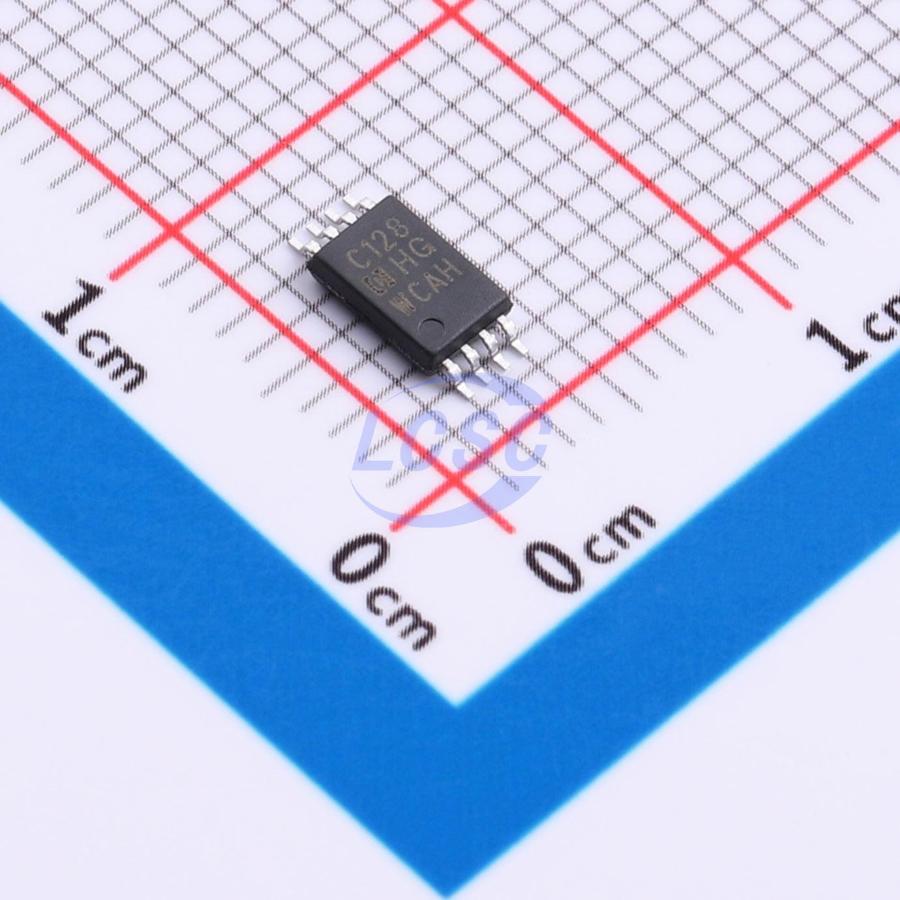

AT24C128MT/TR-HG
₹115.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.168 g
Overview
AT24C128 is an I²C-compatible serial EEPROM device. It contains a 128 Kbit (16 Kbyte) memory array, organized as 64-byte pages.
Applications
- Consumer Electronics
- Industrial Systems
- Automotive Systems
- Communication Systems
- Medical Devices
Key features
- Single supply voltage with high-speed mode
- Minimum operating voltage down to 1.7V
- Supports 400kHz/1MHz clock over 1.7V to 5.5V voltage range
- Low-power CMOS technology
- Typical read current 0.2mA (400kHz), typical write current 0.8mA (400kHz)
- Schmitt trigger inputs with filtering for noise suppression
- Supports sequential and random read operations
- Supports page write mode with partial page write capability
- Write protection for entire memory array
- Additional permanently lockable page and 128-bit serial number
- Self-timed write cycle (5ms max)
- High reliability: 1,000,000 write cycle endurance, 100-year data retention, ESD protection (HBM) 6kV, latch-up immunity ±200mA (25°C)
- Packages: DIP8, SOP8, TSSOP8, MSOP8, DFN-8, SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C128MT/TR#C53200133HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,995 | ₹23.03 · 4,995 in stock | View |
