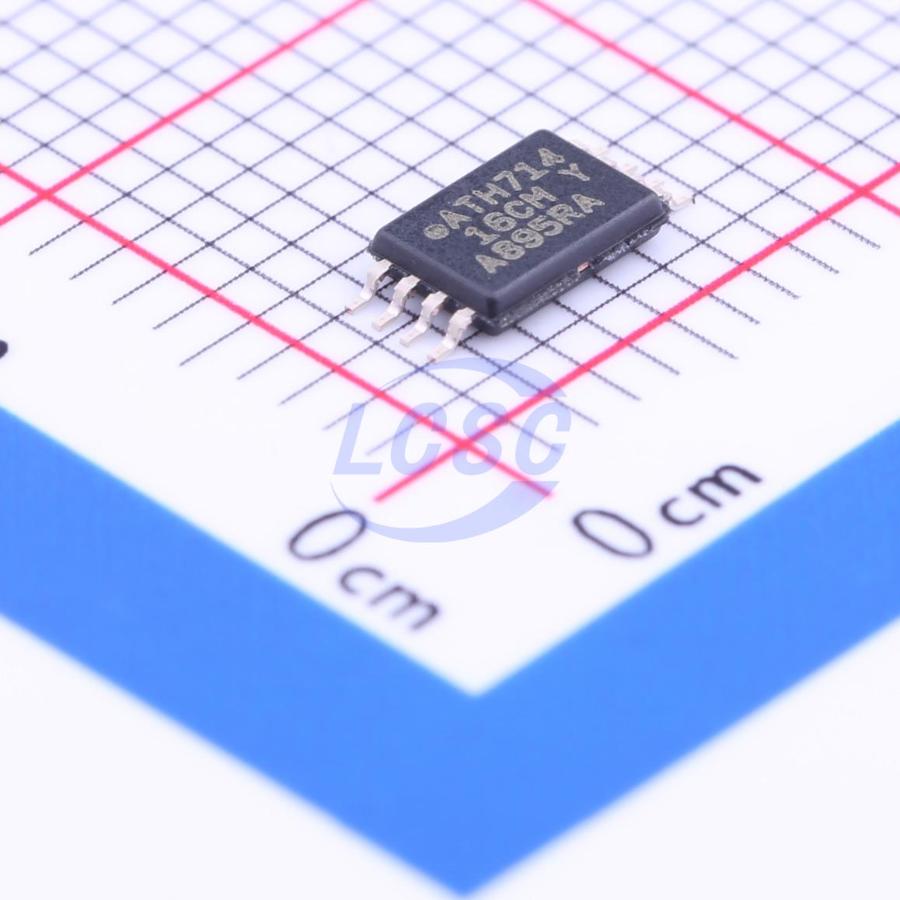

AT24C16C-XHM-T
16Kbit 1MHz I2C TSSOP-8 Memory RoHS
I2C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,542 in stock
#C112954
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.97 | ₹74.97 |
| 10+ | ₹59.76 | ₹597.60 |
| 30+ | ₹53.03 | ₹1,590.90 |
| 100+ | ₹44.98 | ₹4,498.00 |
| 500+ | ₹41.29 | ₹20,645.00 |
| 1,000+ | ₹39.12 | ₹39,120.00 |
1 × ₹74.97
₹74.97
excl. GST
₹88.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C16C-XHM-T
₹74.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The Atmel AT24C16C provides 16,384 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 2,048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. AT24C16C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface.
Key features
- Low-voltage and Standard-voltage Operation V_CC = 1.7V to 5.5V
- Internally Organized as 2,048 x 8 (16K)
- I²C-compatible (2-wire) Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- 1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 16-byte Page Write Mode, Partial Page Writes Allowed
- Self-timed Write Cycle (5ms Max)
- High-reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Green Package Options (Pb/Halide-free/RoHS Compliant)
- 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA
- Die Options: Wafer Form and Tape and Reel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C16C-XHM-B#C1349291MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 90 | ₹132.84 · 90 in stock | View |
 | AT24CS16-XHM-T#C2062615MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 25 | ₹90.29 · 25 in stock | View |
 | FT24C16A-KTR-T#C5263772FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 15 | ₹11.36 · 15 in stock | View |
 | FEP24C16YTSSOP8G/TR#C48994851Full-Way · TSSOP-8 | Full-Way | TSSOP-8 | 2,120 | ₹14.94 · 2,120 in stock | View |
 | AT24C16MT/TR-HG#C53200135HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,725 | ₹20.77 · 4,725 in stock | View |
