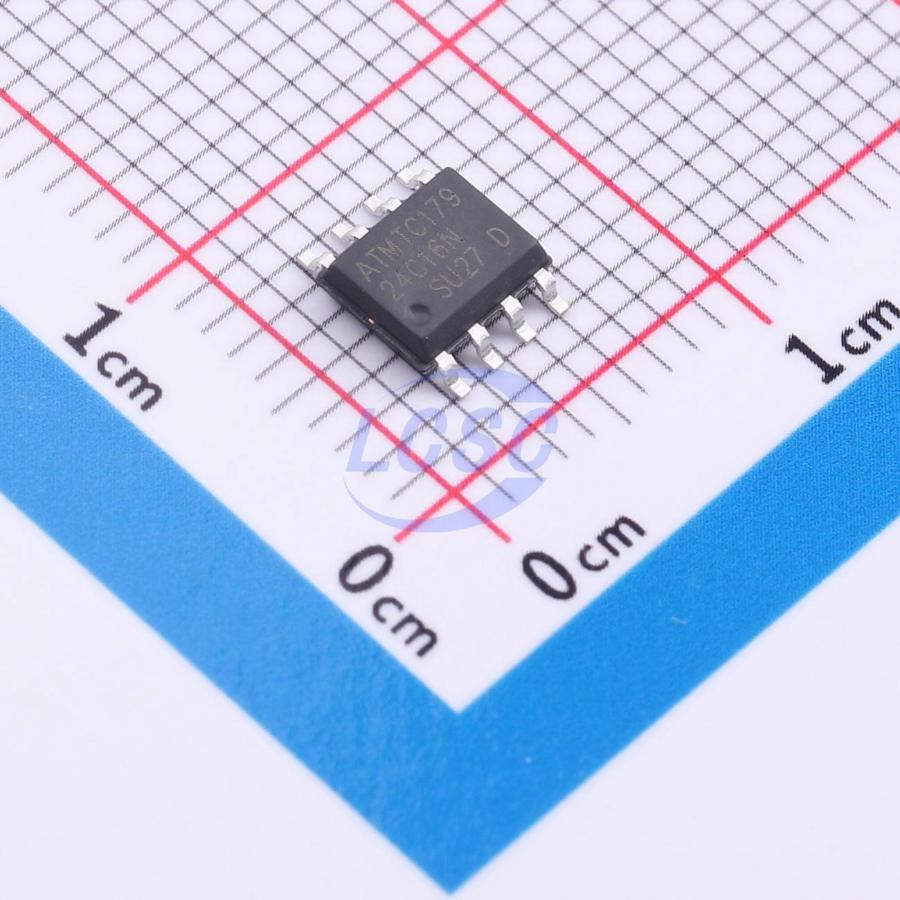

GREENMICRODatasheet (PDF)
AT24C16CDR179
16Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- AT24C16CDR179
- Store part #
- C51026305
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,290 in stock
#C51026305
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.92 | ₹79.20 |
| 100+ | ₹6.30 | ₹630.00 |
| 300+ | ₹5.48 | ₹1,644.00 |
| 1,000+ | ₹4.87 | ₹4,870.00 |
| 4,000+ | ₹4.38 | ₹17,520.00 |
| 8,000+ | ₹4.13 | ₹33,040.00 |
10 × ₹7.92
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C16CDR179
₹79.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.8V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 4uA
- Write Cycle Endurance
- 1 million cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.169 g
Overview
24C16 is a PC-compatible serial EEPROM device. It contains an 8 Kbits (1 Kbytes) / 16 Kbits (2 Kbytes) memory array with a page size of 16 bytes.
Key features
- Single supply voltage with high-speed mode
- Minimum operating voltage down to 1.7V
- 1 MHz clock frequency (2.5V to 5.5V)
- 400kHz clock frequency (1.7V to 5.5V)
- Low-power CMOS technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.8mA (400kHz, typical)
- Schmitt trigger inputs with noise filtering
- Sequential and random read modes
- Page write mode with partial page write support
- Write protection for entire memory array
- Additional writeable lockable page
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Packages: PDIP8, SOP8, TSSOP8, SOT23-5, TSOT23-5, UDFN8, MSOP8
