HANSCHIP semiconductorDatasheet (PDF)

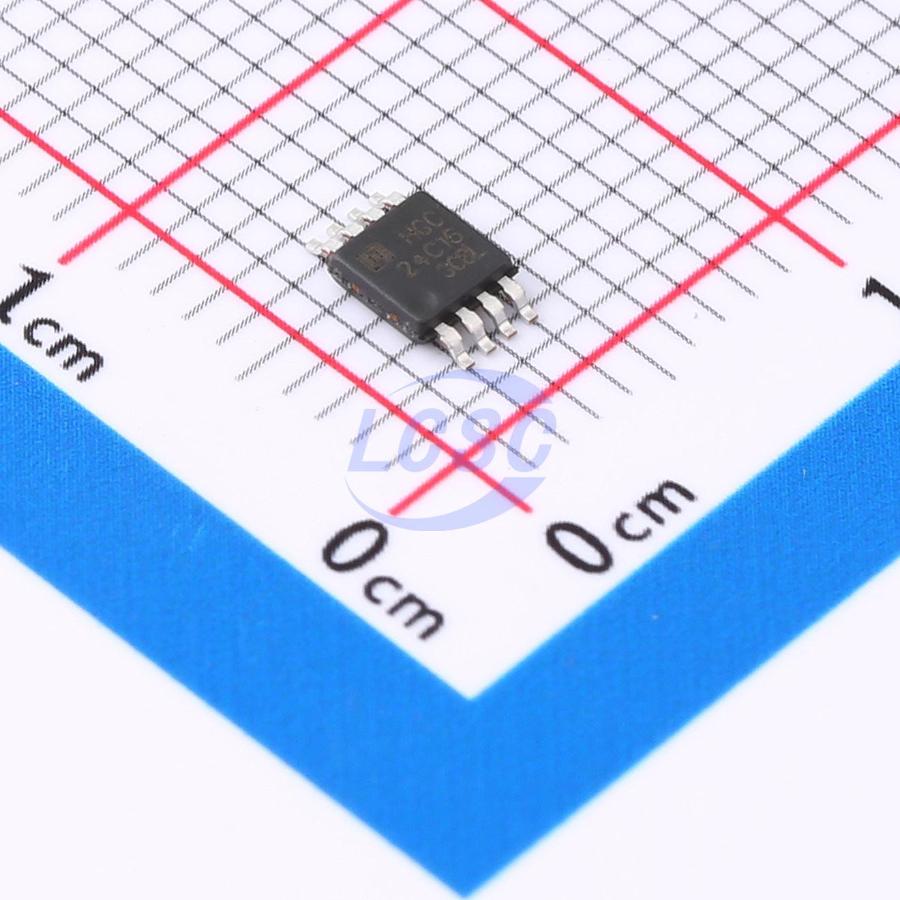

AT24C16DGKRG
16Kbit 1MHz I2C MSOP-8 Memory RoHS
MSOP-8ROHS CompliantActive
16K Bit Serial EEPROM
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- AT24C16DGKRG
- Store part #
- C19723711
- Package / case
- MSOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,025 in stock
#C19723711
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.85 | ₹54.25 |
| 50+ | ₹8.57 | ₹428.50 |
| 150+ | ₹7.44 | ₹1,116.00 |
| 500+ | ₹6.59 | ₹3,295.00 |
| 3,000+ | ₹5.91 | ₹17,730.00 |
| 6,000+ | ₹5.57 | ₹33,420.00 |
5 × ₹10.85
₹54.25
excl. GST
₹64.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AT24C16DGKRG
₹54.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us;0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
AT24C02 / AT24C04 / AT24C08 / AT24C16 provide 2048/4096/8192/16384 bits of serial EEPROM, organized as 256/512/1024/2048 words of 8 bits each. These devices are optimized for a wide range of industrial and commercial applications where low power consumption and low voltage operation are essential. The AT24C02 / AT24C04 / AT24C08 / AT24C16 are available in space-saving 8-pin DIP, 8-pin SOP, 8-pin MSOP, and 5-pin SOT23 packages, accessible via a two-wire serial interface.
Key features
- Wide voltage operation, VCC = 1.7V ~ 5.5V
- Operating temperature range: -40℃ ~ +85℃
- Internal organization:
- AT24C02, 256 × 8 (2K bit)
- AT24C04, 512 × 8 (4K bit)
- AT24C08, 1024 × 8 (8K bit)
- AT24C16, 2048 × 8 (16K bit)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filter
- Bidirectional data transfer protocol
- 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) compatible
- Write protect pin for hardware data protection
- 8-byte page (2K), 16-byte page (4K, 8K, 16K) write modes
- Partial page write supported
- Self-timed write cycle (5 ms max)
- High reliability:
- Endurance: 1 million write cycles
- Data retention: 100 years
- Die sales: wafer form, waffle pack
- Package types: DIP-8, SOP-8, MSOP-8, SOT-23-5, SOT-23-8
