MICROCHIP

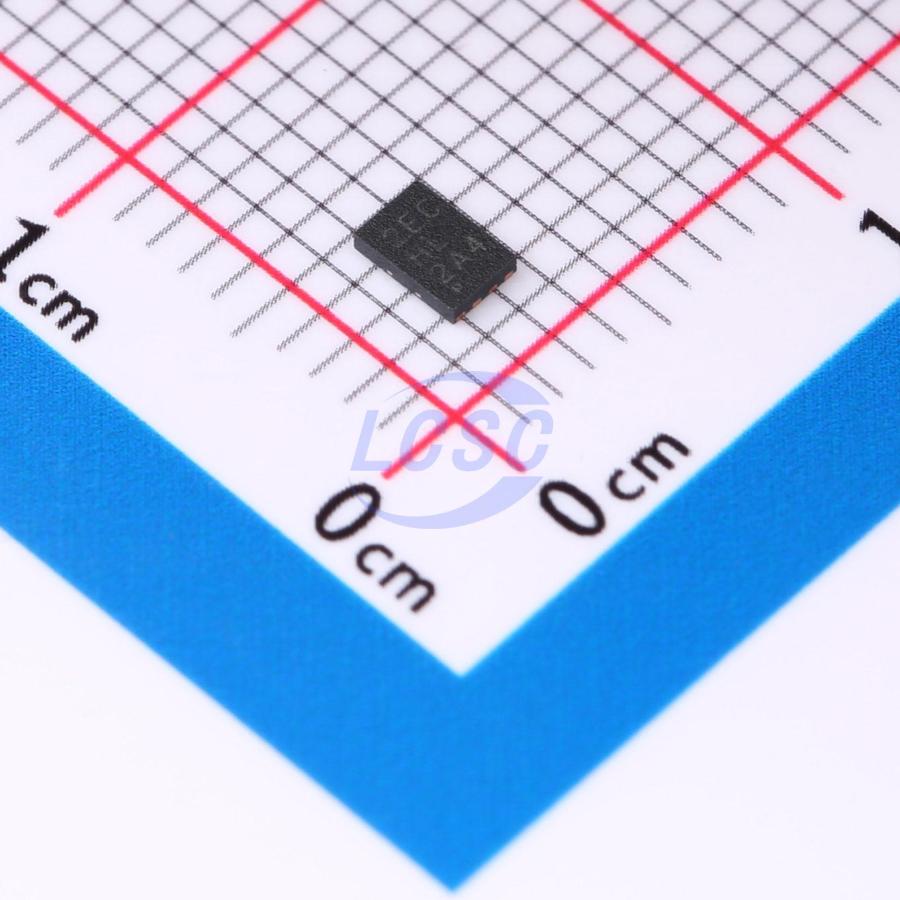

AT24C256C-MAHL-T
256Kbit 1MHz I2C UDFN-8-EP(2x3) Memory RoHS
UDFN-8-EP(2x3)ROHS CompliantActive
I²C-Compatible (2-Wire) Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,242 in stock
#C2063074
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹228.31 | ₹228.31 |
| 10+ | ₹194.71 | ₹1,947.10 |
| 30+ | ₹173.90 | ₹5,217.00 |
| 100+ | ₹152.42 | ₹15,242.00 |
| 500+ | ₹142.67 | ₹71,335.00 |
| 1,000+ | ₹138.54 | ₹1,38,540.00 |
1 × ₹228.31
₹228.31
excl. GST
₹269.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C256C-MAHL-T
₹228.31 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.071 g
Overview
Key features
- Low-Voltage and Standard-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 32,768×8 (256K)
- Industrial Temperature Range: -40°C to +85°C
- I²C-Compatible (2-Wire) Serial Interface: – 100 kHz Standard mode, 1.7V to 5.5V; 400 kHz Fast mode, 1.7V to 5.5V; 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write‑Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (μA maximum)
- 64-Byte Page Write Mode: – Partial page writes allowed
- Random and Sequential Read Modes
- Self‑Timed Write Cycle within 5 ms Maximum
- ESD Protection > 4,000V
- High Reliability: – Endurance: 1,000,000 write cycles – Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C256C-MAHL-E#C616843MICROCHIP · UDFN-8-EP(2x3) | MICROCHIP | UDFN-8-EP(2x3) | 121 | ₹224.90 · 121 in stock | View |
 | ZD24C256A-MAGMT#C46593757Zetta · DFN-8-EP(2x3) | Zetta | DFN-8-EP(2x3) | 1,880 | ₹34.94 · 1,880 in stock | View |
| 24FC256T-I/MNY#C616461MICROCHIP · TDFN-8-EP(2x3) | MICROCHIP | TDFN-8-EP(2x3) | 8 | ₹174.64 · 8 in stock | View | |
 | CAT24C256HU4IGT3#C233771onsemi · UDFN-8(2x3) | onsemi | UDFN-8(2x3) | 4,149 | ₹122.87 · 4,149 in stock | View |
 | BL24C256A-NTRC#C691875BL · UDFN-8L-EP(2x3) | BL | UDFN-8L-EP(2x3) | 24,390 | ₹24.81 · 24,390 in stock | View |
