GREENMICRODatasheet (PDF)

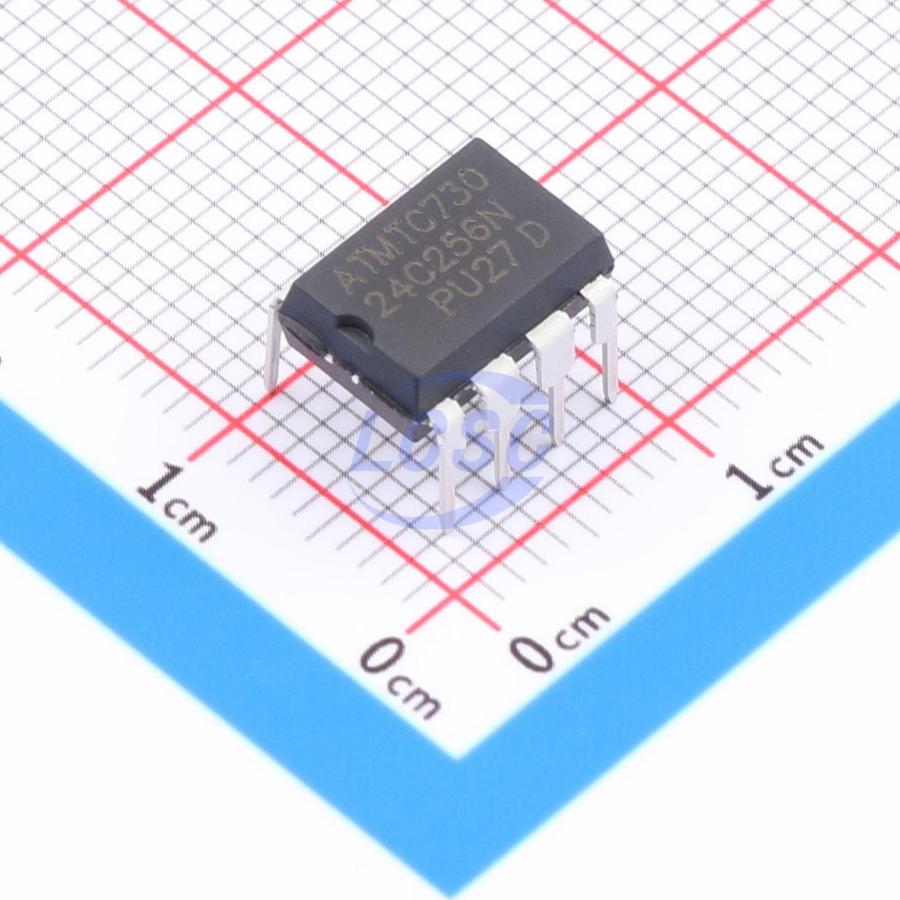

AT24C256CP073
256Kbit 1MHz I2C DIP-8 Memory
DIP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- AT24C256CP073
- Store part #
- C51026307
- Package / case
- DIP-8
- Category
- Memory
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,055 in stock
#C51026307
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.51 | ₹217.55 |
| 50+ | ₹33.93 | ₹1,696.50 |
| 150+ | ₹29.83 | ₹4,474.50 |
| 500+ | ₹24.71 | ₹12,355.00 |
| 2,000+ | ₹22.44 | ₹44,880.00 |
| 4,000+ | ₹21.06 | ₹84,240.00 |
5 × ₹43.51
₹217.55
excl. GST
₹256.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
AT24C256CP073
₹217.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.8V~5.5V;1.6mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1 million cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.858 g
Overview
24C256 is a 256-Kbit I2C-compatible serial EEPROM device. It contains a 32K×8-bit memory array organized in 64-byte pages. The series is available in 1.7V to 5.5V and 1.8V to 5.5V versions.
Key features
- Single-supply voltage with high-speed operation
- Minimum operating voltage down to 1.7V
- 1 MHz clock support at 2.5V to 5.5V
- 400 kHz clock support at 1.7V to 5.5V
- Low-power CMOS technology
- Read current max 400uA
- Write current max 1.6mA
- Schmitt trigger inputs with noise suppression filtering
- Sequential and random read modes
- 64-byte page write mode with partial page write support
- Full array write protection
- Additional writeable lockable page
- Self-timed write cycle (max 5ms)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- HBM: 6kV
- Latch-up immunity: +/- 200mA
- Packages: SOP8, TSSOP8, UDFN8
