Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,785 in stock
#C53200142
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.64 | ₹198.20 |
| 50+ | ₹31.29 | ₹1,564.50 |
| 150+ | ₹27.72 | ₹4,158.00 |
| 500+ | ₹23.26 | ₹11,630.00 |
| 2,500+ | ₹21.26 | ₹53,150.00 |
| 5,000+ | ₹20.07 | ₹1,00,350.00 |
5 × ₹39.64
₹198.20
excl. GST
₹233.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

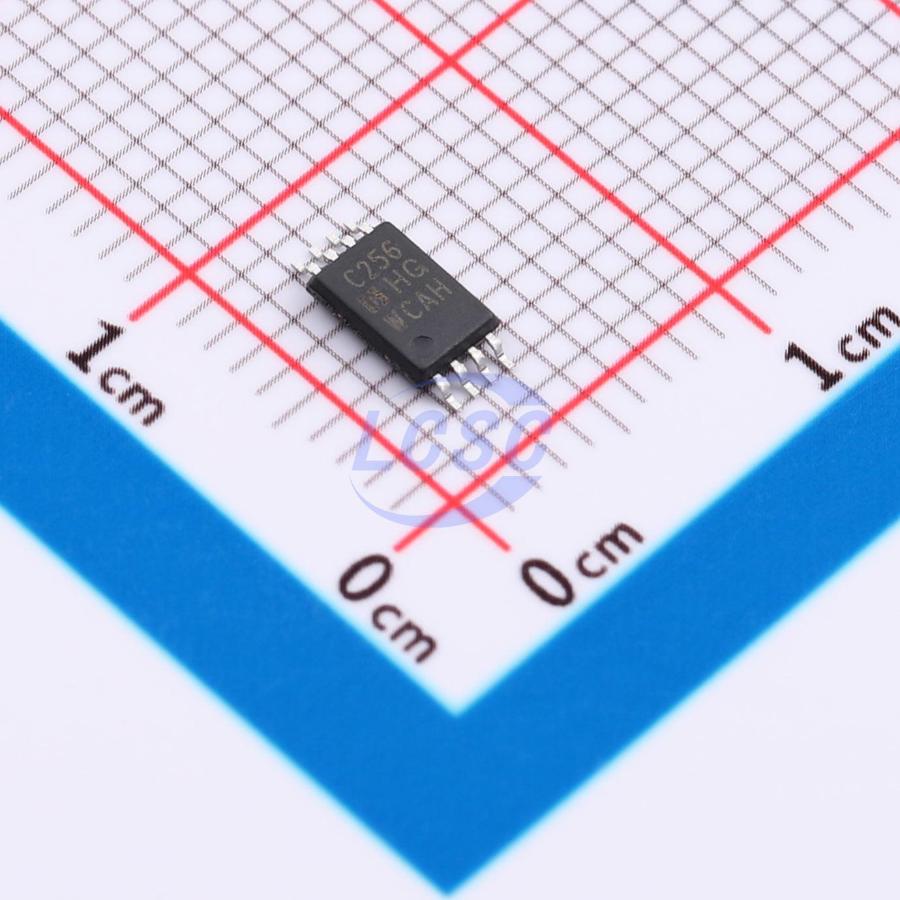

AT24C256MT/TR-HG
₹198.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function;Page write protection function
- Memory Size
- 256Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 3.4MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 12uA
- Write Cycle Endurance
- 10,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.165 g
Overview
AT24C256 is an I2C-compatible serial EEPROM device. It contains a 256 Kbit (32 Kbyte) memory array organized as 64-byte pages.
Key features
- Single supply voltage, supporting Fast-mode and High-speed mode
- Minimum operating voltage down to 1.7V
- 400 kHz/1 MHz/3.4 MHz clock support across 1.7V to 5.5V voltage range
- Low-power CMOS technology
- Read current 0.3mA (5.5V, 400 kHz, typical)
- Schmitt trigger with filtered inputs for noise suppression
- Transparent ECC over each group of four bytes, corrects 1-bit errors
- Write protection for entire memory array
- Additional writable lockable page (identification page)
- Additional 128-bit serial number
- Sequential and random read capability
- 64-byte page write mode with partial page write support
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 10 million write cycles
- Data retention: 200 years
- HBM: 6 kV
- Latch-up immunity: ±200 mA (25°C)
- Packages: DIP-8, SOP-8, TSSOP-8, MSOP-8, DFN-8, SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C256MT/TR#C53200143HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 4,975 | ₹39.64 · 4,975 in stock | View |
