Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,975 in stock
#C53468205
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.57 | ₹112.85 |
| 50+ | ₹17.82 | ₹891.00 |
| 150+ | ₹15.78 | ₹2,367.00 |
| 500+ | ₹13.24 | ₹6,620.00 |
| 2,000+ | ₹12.11 | ₹24,220.00 |
| 4,000+ | ₹11.43 | ₹45,720.00 |
5 × ₹22.57
₹112.85
excl. GST
₹133.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube

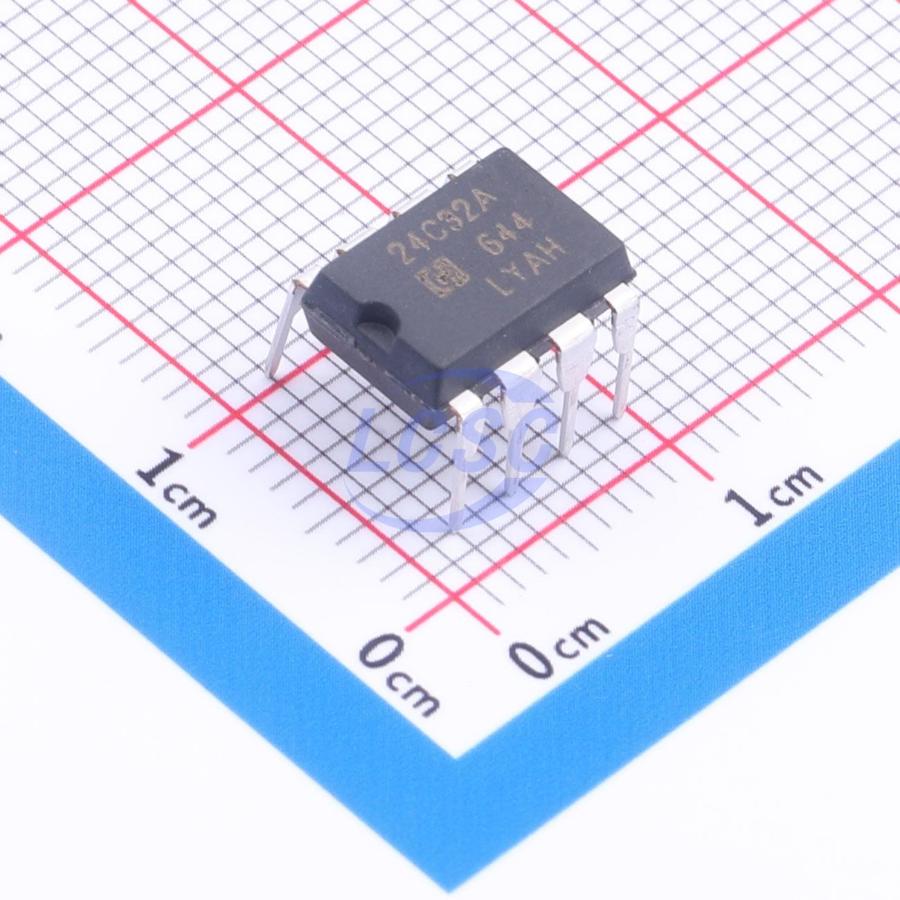

AT24C32AN/HG
₹112.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.9 g
Overview
The AT24C32A / AT24C64A provides 32768/65536 bits of serial EEPROM, internally organized as 4096/8192 words of 8 bits each. The device is optimized for a wide range of industrial and commercial applications where low power consumption and low voltage operation are essential. The AT24C32A / AT24C64A is available in space-saving 8-pin DIP, 8-pin SOP, and 8-pin MSOP packages and is accessed via a two-wire serial interface.
Key features
- Wide voltage operation
- VCC = 1.8V ~ 5.5V
- Operating temperature: -40°C ~ +85°C
- Internal organization:
- AT24C032A, 4096 × 8 (32K-bit)
- AT24C064A, 8192 × 8 (64K-bit)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filter
- Bidirectional data transfer protocol
- 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) compatible
- Write protect pin for hardware data protection
- 32-byte page (32K) write mode
- Partial page write supported
- Self-timed write cycle (5 ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Die sales: wafer form, waffle pack
- DIP-8 package
- SOP-8 package
- TSOP-8 package
- MSOP-8 package
- SOT-23-5 package
