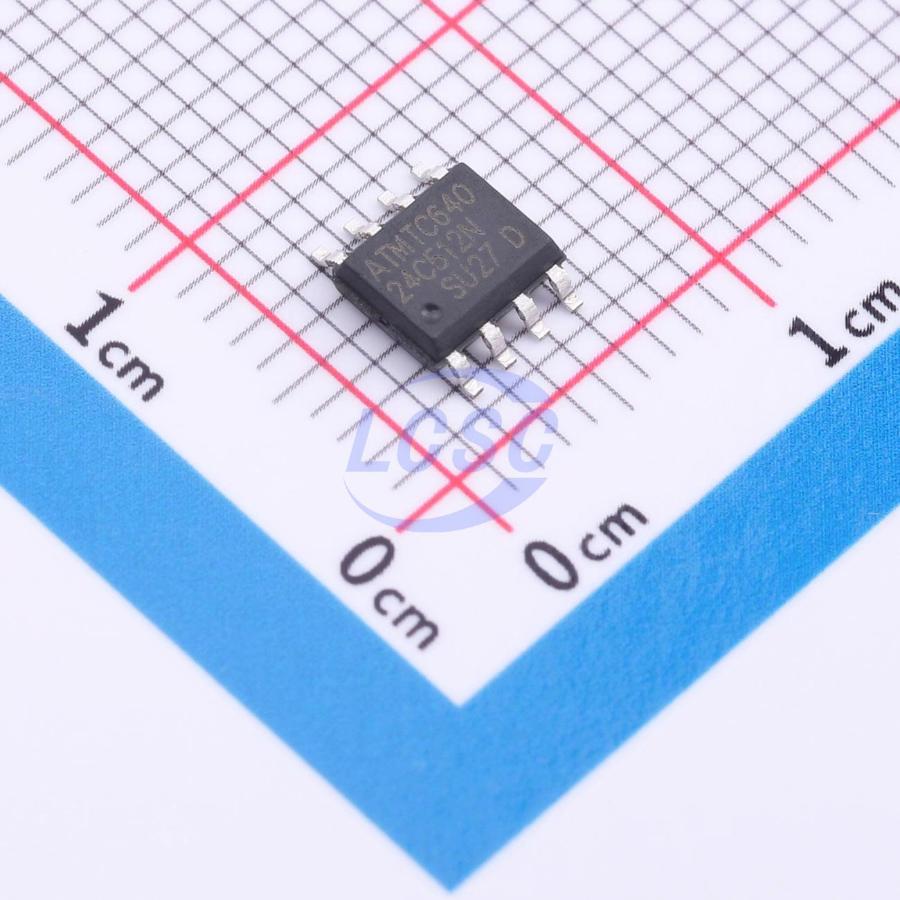

AT24C512CDR064

512Kbit 1MHz I2C SOP-8 Memory

SOP-8RoHSActive

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,190 in stock

#C51026309

Stock & price checked 6 days ago

Quantity (min 5, multiples of 5)

5 × ₹29.94

₹149.70

excl. GST

₹176.65 incl. 18% GST

AT24C512CDR064

₹149.70 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Noise suppression function;Page write protection function
Memory Size: 512Kbit
Voltage - Supply: 1.8V~5.5V;1mA
Clock Frequency: 1MHz
Access Time: 0.9us
Data Retention - TDR (Year): 100 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 10uA
Write Cycle Endurance: 1 million cycles
Interface: I2C

24C512 is an automotive-grade I2C-compatible serial EEPROM device. It contains a 512Kbit (64K byte) memory array organized as 128 bytes per page.

Single-supply voltage with high-speed operation: minimum operating voltage down to 1.7V; supports 1MHz clock at 2.5V to 5.5V; supports 400kHz clock at 1.7V to 5.5V.
Low-power CMOS technology: read current 0.3mA (400kHz, typical); write current 1.0mA (400kHz, typical).
Schmitt trigger inputs with noise-suppression filtering.
Sequential and random read modes.
128-byte page write mode with partial page write support.
Write protection for the entire memory array.
Additional writeable lockable page.
Self-timed write cycle (5ms maximum).
High reliability: 1 million write cycle endurance; 100-year data retention; 6kV HBM ESD protection; latch-up immunity ±200mA.
Package options: SOP8, TSSOP8, UDFN8.
