HXY MOSFETDatasheet (PDF)

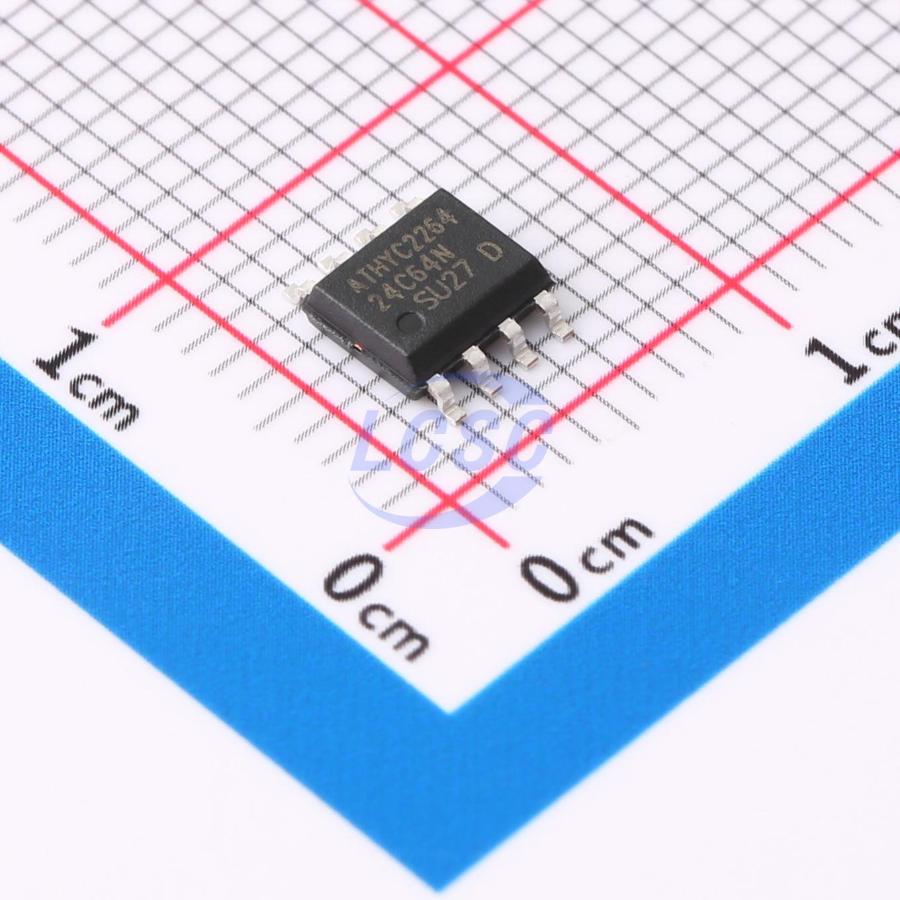

AT24C64-HXY
64Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
64-Kbit I2C-Compatible Serial EEPROM
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AT24C64-HXY
- Store part #
- C18198380
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,775 in stock
#C18198380
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.94 | ₹74.70 |
| 50+ | ₹12.32 | ₹616.00 |
| 150+ | ₹11.01 | ₹1,651.50 |
| 500+ | ₹10.02 | ₹5,010.00 |
| 2,500+ | ₹8.30 | ₹20,750.00 |
| 4,000+ | ₹7.90 | ₹31,600.00 |
5 × ₹14.94
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C64-HXY
₹74.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;0.6mA
- Clock Frequency
- 1MHz
- Access Time
- 3.45us;0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
AT24C64 is a 64Kbit I²C-compatible serial EEPROM device. It contains an 8K × 8-bit memory array organized as 32 bytes per page.
Key features
- Single supply voltage with high-speed mode
- Minimum operating voltage down to 1.7V
- 1 MHz clock frequency supported at 2.5V to 5.5V
- 400kHz clock frequency supported at 1.7V to 2.5V
- Low-power CMOS technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.6mA (400kHz, typical)
- Schmitt trigger inputs with noise filtering
- Sequential and random read modes
- 32-byte page write mode with partial page write support
- Write protection for entire memory array
- Additional writable lockable page
- Additional 128-bit serial number
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- HBM: 6KV
- Latch-up immunity: +/- 200mA (25℃)
- Package: DIP-8, SOP-8 (SOIC-8), SOT-23-5L
