Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,325 in stock
#C49270316
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.38 | ₹66.90 |
| 50+ | ₹10.58 | ₹529.00 |
| 150+ | ₹9.19 | ₹1,378.50 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 2,500+ | ₹7.30 | ₹18,250.00 |
| 4,000+ | ₹6.89 | ₹27,560.00 |
5 × ₹13.38
₹66.90
excl. GST
₹78.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel

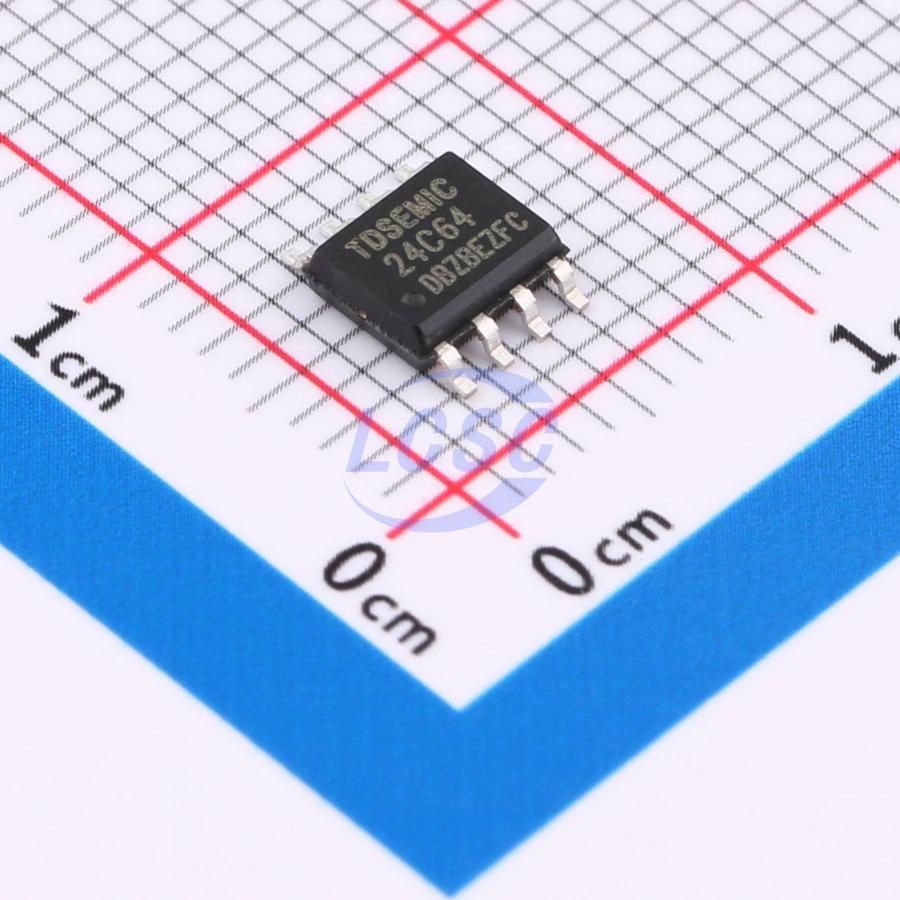

AT24C64-TD
₹66.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;1mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.123 g
Overview
The AT24C64-TD is an electrically erasable programmable read-only memory organized as 8192×8 bits with a two-wire serial interface. Operating voltage is as low as 1.8V, with a typical standby current of 1μA and typical active current of 1mA. The device supports page write capability with 32 bytes per page, available in 8-pin PDIP, 8-pin SOP, and 5-pin SOT-23-5 packages.
Applications
- Smart instrumentation
- Industrial control
- Home appliances
- Computer & laptop
- Automotive electronics
Key features
- Wide operating voltage range: 1.8V ~ 5.5V
- Low-voltage technology
- Typical operating current: 1mA
- Typical standby current: 1μA
- Memory organization: 24C02 = 256×8 bits (2K bits), 24C04 = 512×8 bits (4K bits), 24C08 = 1024×8 bits (8K bits), 24C16 = 2048×8 bits (16K bits), 24C32 = 4096×8 bits (32K bits), 24C64 = 8192×8 bits (64K bits)
- 2-wire serial interface, fully compatible with I²C bus
- I²C clock frequency: 1MHz (5V), 400kHz (1.8V, 2.5V, 2.7V)
- Schmitt trigger inputs with noise suppression
- Hardware data write protection
- Internal write cycle time: 5ms max
- Byte write operation support
- Page write: 8-byte page (24C02), 16-byte page (24C04/08/16), 32-byte page (24C32/64)
- Byte read, random read, and sequential read support
- Auto-increment addressing
- ESD protection: >2.5kV
- High reliability: 1,000,000 write/erase cycles endurance, 100-year data retention
- Available in 8-pin DIP and 8-pin SOP packages
- Lead-free process, RoHS compliant
