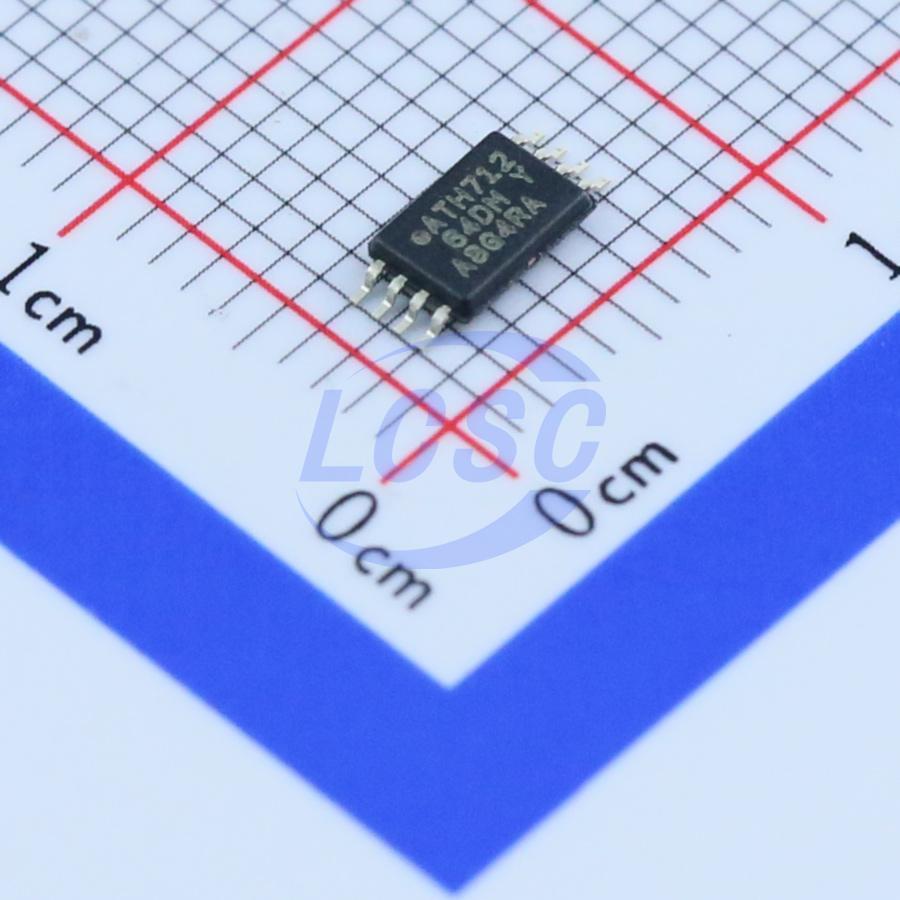

AT24C64D-XHM-T
64Kbit 1MHz I2C TSSOP-8 Memory RoHS
I²C-Compatible (2-Wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,018 in stock
#C111440
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.63 | ₹103.63 |
| 10+ | ₹82.78 | ₹827.80 |
| 30+ | ₹72.35 | ₹2,170.50 |
| 100+ | ₹61.93 | ₹6,193.00 |
| 500+ | ₹55.62 | ₹27,810.00 |
| 1,000+ | ₹52.58 | ₹52,580.00 |
1 × ₹103.63
₹103.63
excl. GST
₹122.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AT24C64D-XHM-T
₹103.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.118 g
Overview
The Atmel AT24C64D provides 65,536-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 8,192 words of 8 bits each. The device’s cascading feature allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 8-ball VFBGA, and 4-ball/5-ball/6-ball WLCSP packages. In addition, this device operates from 1.7V to 5.5V.
Key features
- Low-voltage and Standard-voltage Operation V_CC = 1.7V to 5.5V
- Internally Organized as 8,192 x 8 (64K)
- I²C-compatible (2-Wire) Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) Compatibility
- Write Protect Pin for Hardware Protection
- 32-byte Page Write Mode Partial Page Writes Allowed
- Self-timed Write Cycle (5ms Max)
- High Reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 100 Years
- Lead-free/Halogen-free Devices Available
- Green Package Options (Pb/Halide-free/RoHS Compliant)
- 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 8-ball VFBGA, and 4-ball/5-ball/6-ball WLCSP Packages
- Die Sale Options: Wafer Form, Waffle Pack, and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24C64D-XHM-B#C1349827MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 7 | ₹77.89 · 7 in stock | View |
 | CAT24C64YI-GT3#C238979onsemi · TSSOP-8 | onsemi | TSSOP-8 | 264 | ₹223.53 · 264 in stock | View |
 | AiP24C64TB8.TR#C52260234Wuxi I-core Elec · TSSOP-8 | Wuxi I-core Elec | TSSOP-8 | 4,940 | ₹29.90 · 4,940 in stock | View |
 | HK24C64HA-UTR-B#C33962446HK · TSSOP-8 | HK | TSSOP-8 | 75 | ₹13.93 · 75 in stock | View |
 | HG24C64MT/TR#C53200130HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 845 | ₹21.29 · 845 in stock | View |
