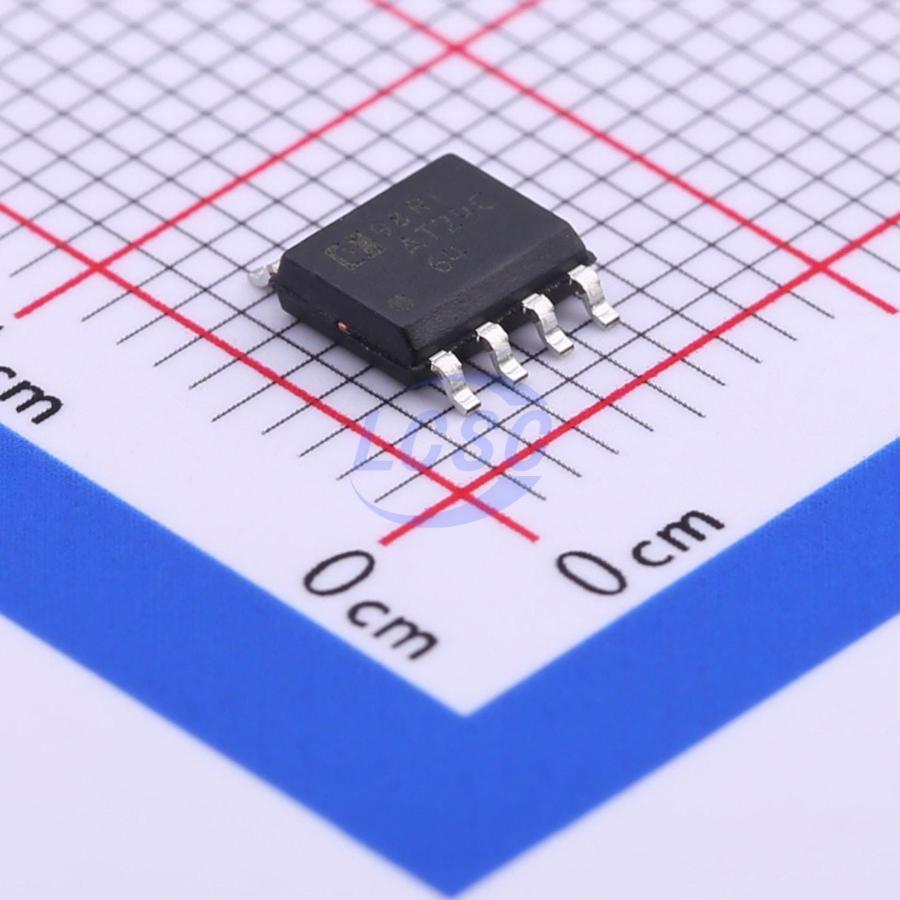

HGSEMI
AT24C64M/TR
64Kbit 400kHz I2C SOP-8 Memory
SOP-8RoHSActive
EEPROM operates with low power consumption and low voltage.
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,355 in stock
#C434512
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.16 | ₹75.80 |
| 50+ | ₹11.96 | ₹598.00 |
| 150+ | ₹10.35 | ₹1,552.50 |
| 500+ | ₹9.14 | ₹4,570.00 |
| 2,500+ | ₹8.18 | ₹20,450.00 |
| 5,000+ | ₹7.70 | ₹38,500.00 |
5 × ₹15.16
₹75.80
excl. GST
₹89.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AT24C64M/TR
₹75.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 10ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
The device provides 32/768/65,536-bit serial EEPROM, organized as 4096/8192 words of 8 bits each. It is optimized for industrial and commercial applications where low power consumption and low voltage operation are critical. The device is available in space-saving 8-pin DIP, 8-pin SOP, and 8-pin MSOP packages, and is accessed via a two-wire serial interface.
Key features
- Wide voltage operating range: VCC = 1.8V to 5.5V
- Operating temperature: -40℃ to +85℃
- Internal organization: AT24C032 is 4096×8 (32K-bit), AT24C064 is 8192×8 (64K-bit)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filtering
- Bi-directional data transfer protocol
- Compatible with 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)
- Write-protect pin for hardware data protection
- 32-byte page (32K) write mode with partial page write support
- Self-timed write cycle (5 ms max)
- High reliability: 1 million write cycle endurance, 100-year data retention
- Die sales: wafer form, waffle pack
