Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,680 in stock
#C53200131
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.32 | ₹101.60 |
| 50+ | ₹16.03 | ₹801.50 |
| 150+ | ₹14.21 | ₹2,131.50 |
| 500+ | ₹11.92 | ₹5,960.00 |
| 2,500+ | ₹10.90 | ₹27,250.00 |
| 5,000+ | ₹10.29 | ₹51,450.00 |
5 × ₹20.32
₹101.60
excl. GST
₹119.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

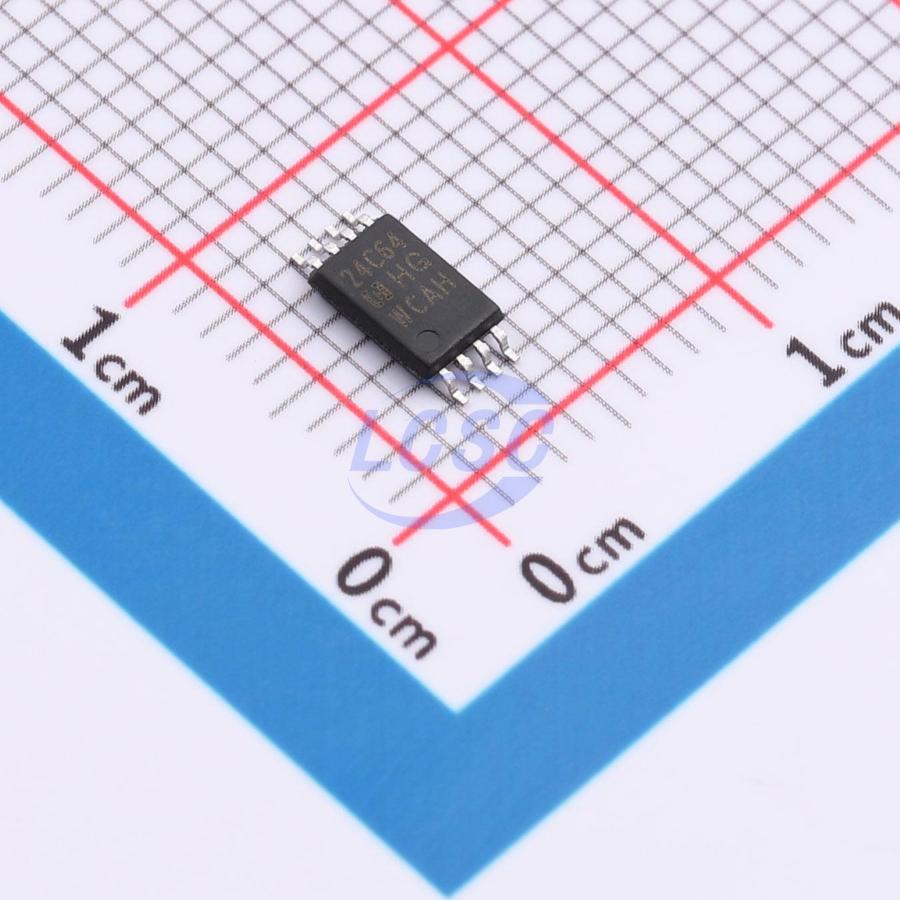

AT24C64MT/TR-HG
₹101.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Noise suppression function;Built-in power-on reset (POR);Hardware write protection function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;0.6mA
- Clock Frequency
- 1MHz
- Access Time
- 3.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.164 g
Overview
AT24C64 is an I²C-compatible serial EEPROM device. It contains a 64 Kb (8 KB) memory array organized in 32-byte pages.
Key features
- Single supply voltage with high-speed mode
- Minimum operating voltage down to 1.7V
- Supports 400kHz/1MHz clock frequency over 1.7V ~ 5.5V voltage range
- Low-power CMOS technology
- Read current 0.2mA (400kHz, typical)
- Write current 0.6mA (400kHz, typical)
- Schmitt trigger inputs with spike filtering for noise suppression
- Sequential read and random read support
- 32-byte page write mode with partial page write capability
- Write protection for entire memory array
- Additional lockable pages
- Additional 128-bit serial number
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- HBM ESD protection: 6 kV
- Latch-up immunity: ±200mA (25°C)
- Packages: DIP8, SOP8, MSOP8, TSSOP8, DFN8, SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG24C64MT/TR#C53200130HGSEMI · TSSOP-8 | HGSEMI | TSSOP-8 | 845 | ₹21.29 · 845 in stock | View |
