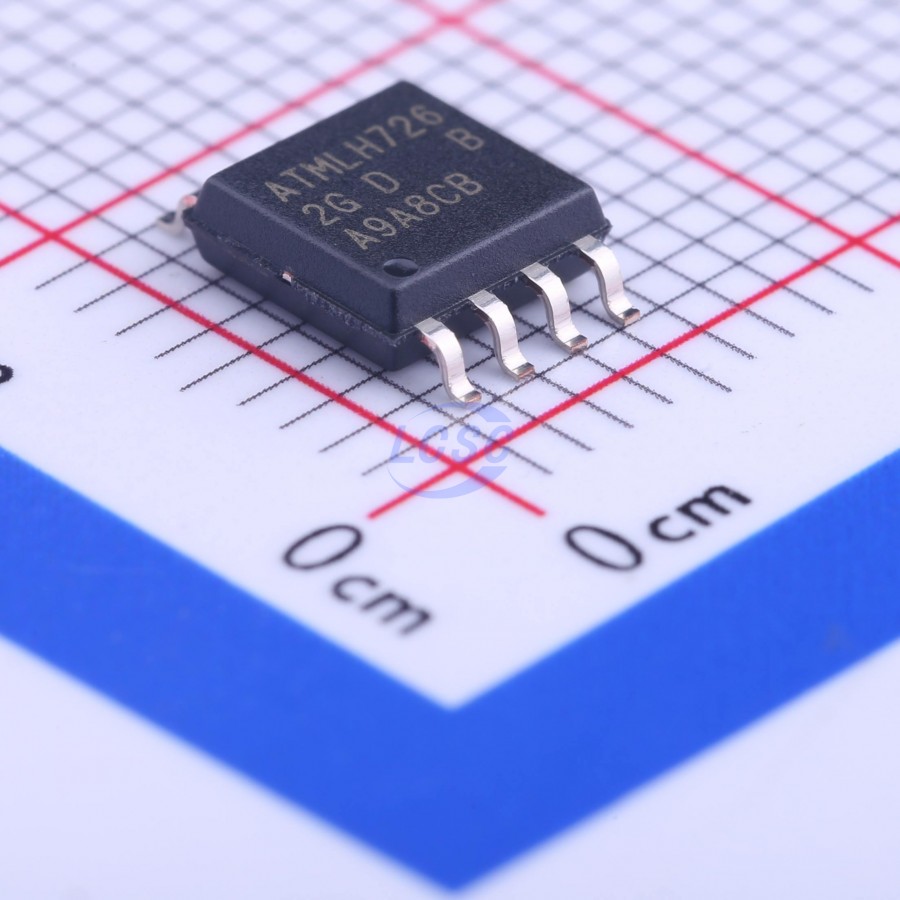

AT24CM01-SHD-T
1Mbit 1MHz I2C SOIC-8-208mil Memory RoHS
1-Mbit I²C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,826 in stock
#C36057
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹298.88 | ₹298.88 |
| 10+ | ₹252.98 | ₹2,529.80 |
| 30+ | ₹224.05 | ₹6,721.50 |
| 100+ | ₹194.69 | ₹19,469.00 |
| 500+ | ₹181.42 | ₹90,710.00 |
| 1,000+ | ₹175.55 | ₹1,75,550.00 |
1 × ₹298.88
₹298.88
excl. GST
₹352.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
AT24CM01-SHD-T
₹298.88 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 1Mbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991B1B2
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.411 g
Overview
The Atmel AT24CM01 provides 1,048,576 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 131,072 words of 8 bits each. The device’s cascadable feature allows up to four devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, and 8-ball WLCSP. In addition, the entire family is available in 1.7V (1.7V to 5.5V) and 2.5V (2.5V to 5.5V) versions.
Key features
- Low Voltage and Standard Voltage Operation Available 1.7V (VCC = 1.7V to 5.5V) 2.5V (VCC = 2.5V to 5.5V)
- Internally Organized 131,072 x 8
- 2-wire Serial Interface
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol 400kHz (1.7V) and 1MHz (5V, 2.5V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 256-byte Page Write Mode – Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle (5ms Max)
- High Reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 40 Years
- Green Package Options (Pb/Halide-free/RoHS Compliant)
- 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, and 8-ball WLCS
- Die Sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CM01-SHD-B#C615467MICROCHIP · SOIC-8-208mil | MICROCHIP | SOIC-8-208mil | 91 | ₹348.33 · 91 in stock | View |
 | AT24CM01-SHM-B#C615468MICROCHIP · SOIC-8-208mil | MICROCHIP | SOIC-8-208mil | 1 | ₹735.56 · 1 in stock | View |
 | AT24CM01-SHM-T#C615968MICROCHIP · SOIC-8-208mil | MICROCHIP | SOIC-8-208mil | 4 | ₹303.18 · 4 in stock | View |
 | 24FC1025-I/SM#C219296MICROCHIP · SOIJ-8-5.28mm | MICROCHIP | SOIJ-8-5.28mm | 105 | ₹402.71 · 105 in stock | View |
 | CAT24M01XI-T2#C605330onsemi · SOIC-8-208mil | onsemi | SOIC-8-208mil | 3 | ₹191.07 · 3 in stock | View |
